UDL on simply supported beam.xls
Description
Calculate bending moments, shear, slope and deflection of a simply supported beam at any point along its length when it is subject to a UDL (uniformly distributed load). Beam bending is analyzed with the Euler-Bernoulli beam equation.
Units - choice of SI (fundamental), SI (mm), US Unit (ft) & US Unit (in).
Related Calculations at ExcelCalcs
Roark's Formulas for Stress and Strain

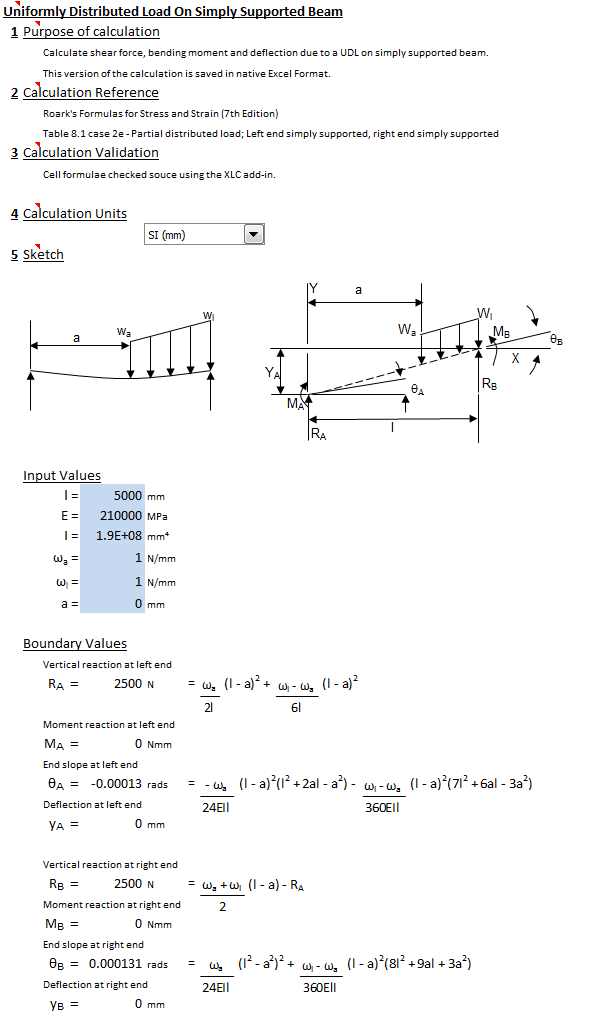

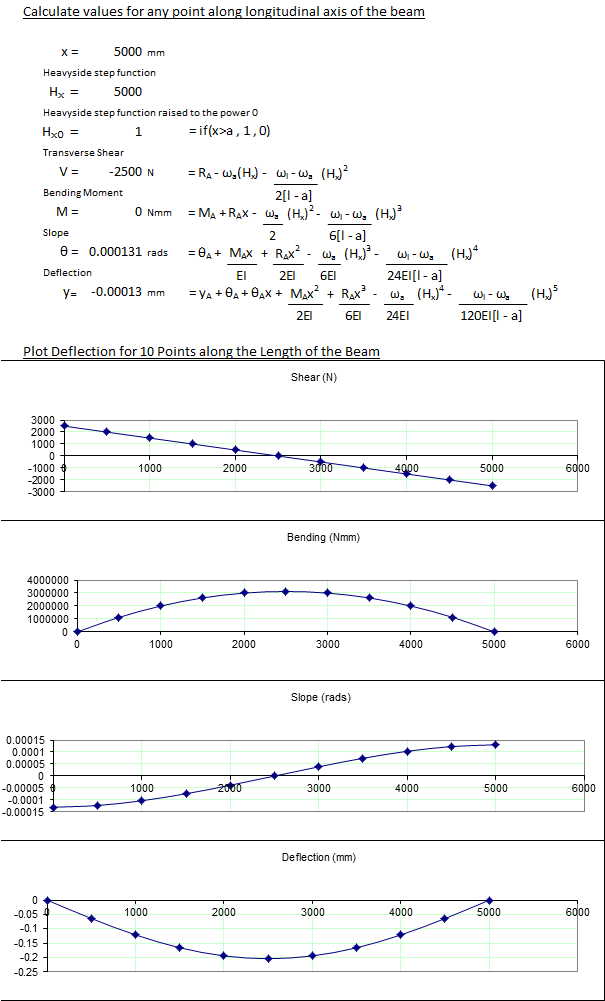

Calculation Preview
Uploaded
18 Jun 2012
Submitted By:
Last Modified
20 Feb 2021
File Size:
298.00 Kb
Downloads:
2704
File Version:
1.1
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 2
×
AJGONZG
11 years ago
The calculation has been copied into the ExcelCalcs CAlculation template so that it is easily used with any system of units. A native Excel copy of the worksheet is included along with the XLC version.

WilfredL
13 years ago
good contribution!
