Thick cylinders

Rating:
10

Description


Purpose of Calculation
Calculation of stresses in rotating Disks and Rings resulting from Internal and external pressures
Calculation of torque transmitted by interference fit
Calculation Reference
https://roymech.co.uk.
Calculation Validation
The various calculations have been checked against example in above texts. The theoretical derivation of the equations is found on the above website.
Important Note:Please only enter data in the identified coloured cells.
Introduction
This page includes simple equations for calulating the longitudonal ,tangential and radial stresses in  thick cylinders  with closed ends. It should be noted that material stress units are based on tensile forces = +ve and compressive forces=  -ve. Therefore the pressure on the surface which  niput as a positive value results in an equal but opposite radial stress within the local surface.
Calculations included

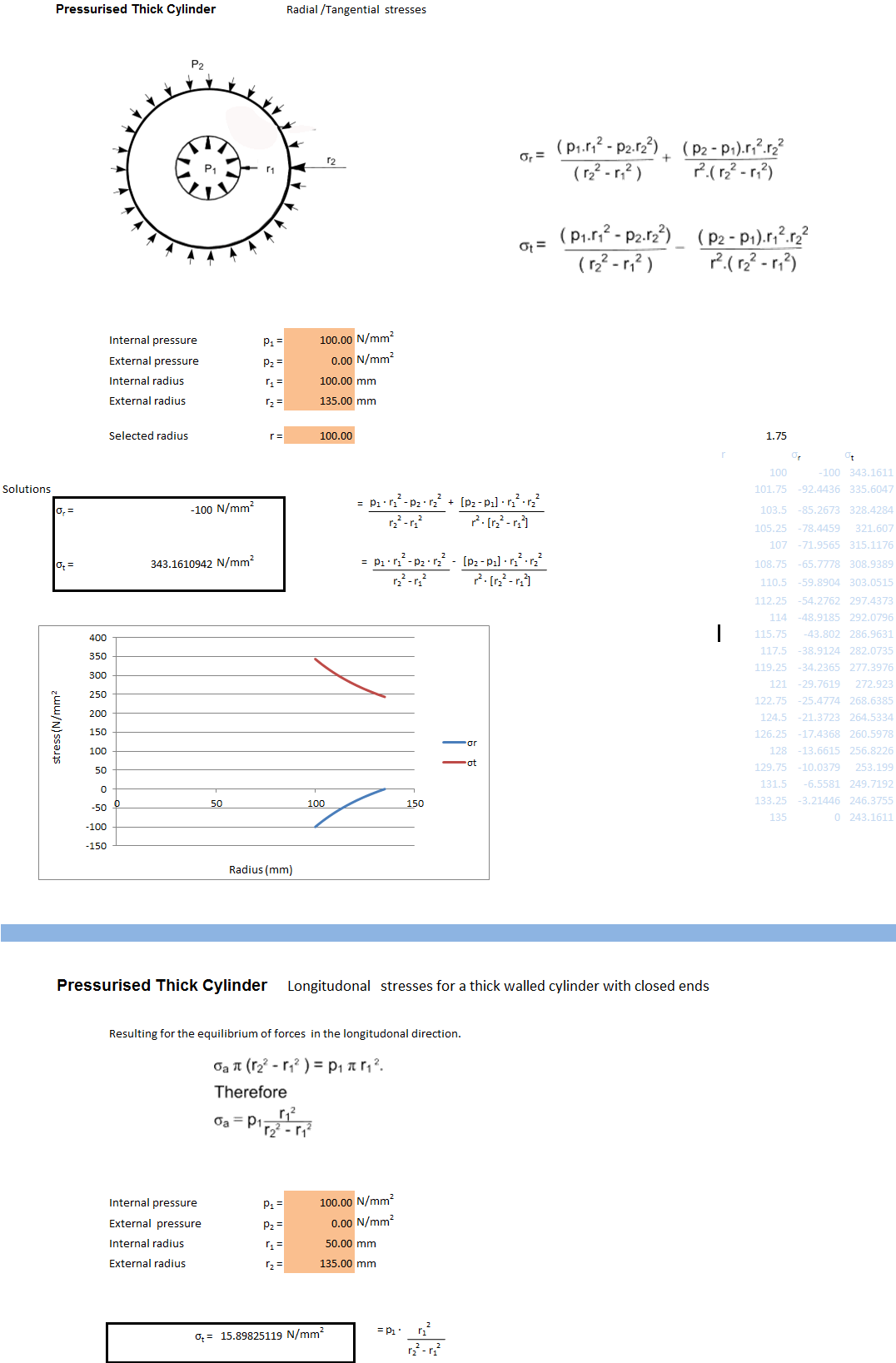

1) Pressurised Thick CylinderRadial /Tangential  stresses
2) Pressurised Thick CylinderLongitudonal   stresses for a thick walled cylinder with closed ends

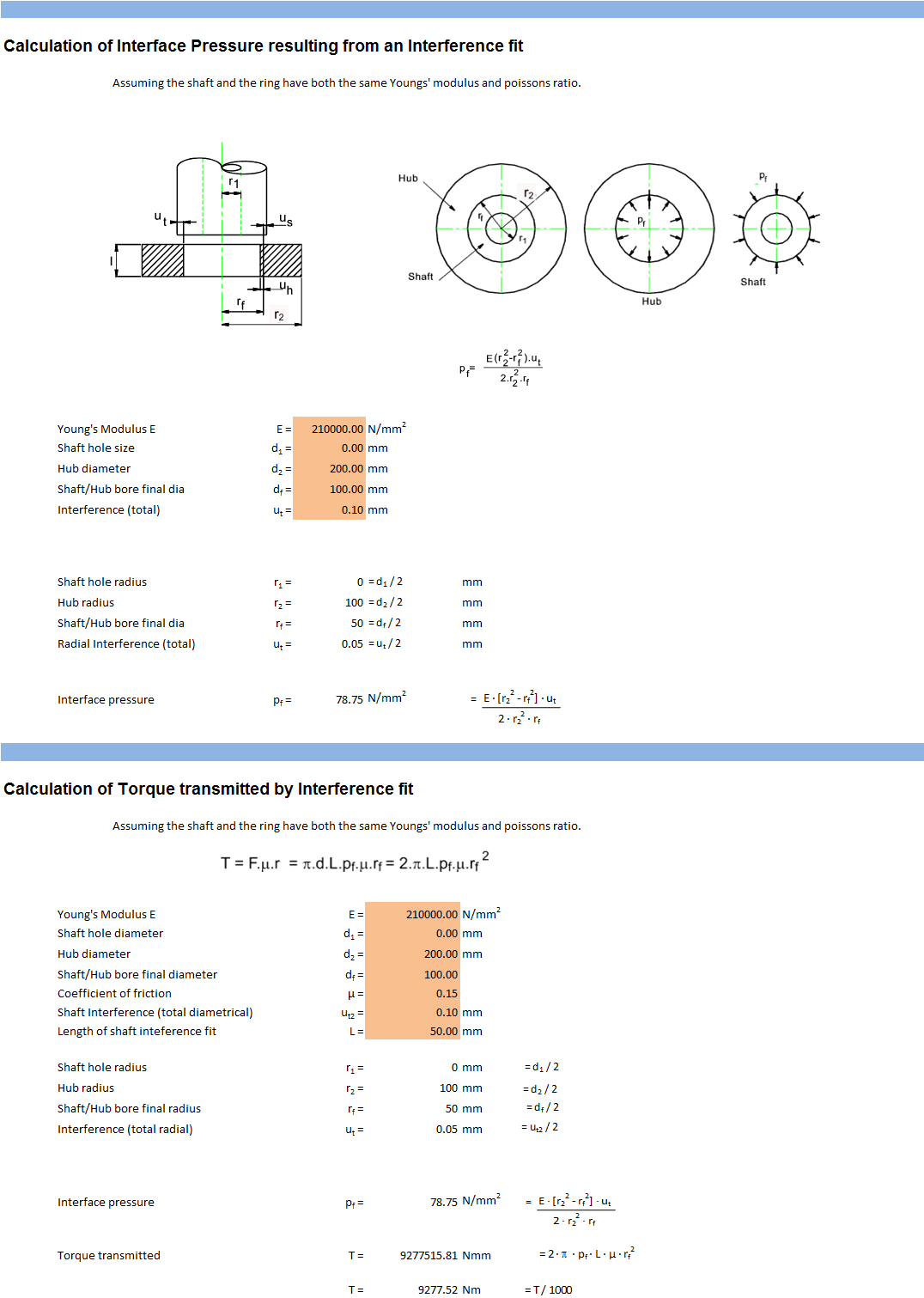

3) Calculation of Interface Pressure resulting from an Interference fit
4) Calculation of Torque transmitted by Interference fit

Calculation Reference
Strength of materials Ryder
Roarks Formulas for stress and strain
Thick cylinders

Calculation Preview

Uploaded
05 Aug 2011
Last Modified
28 Mar 2022
File Size:
141.09 Kb
Downloads:
113
File Version:
1.0
File Author:
Roy Beardmore
Rating:
10


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
