Steel Reinforcing Plate for Masonry
Description
In construction, a flitch plate is a steel plate that is sandwiched between wooden beams to increase the strength of the beam. A flitch plate is useful for reinforcing existing beams, as well as for adding substantial strength to new beams.
Calculation Reference
Timber Construction.
Design of Timber Structures
Flitch Beams

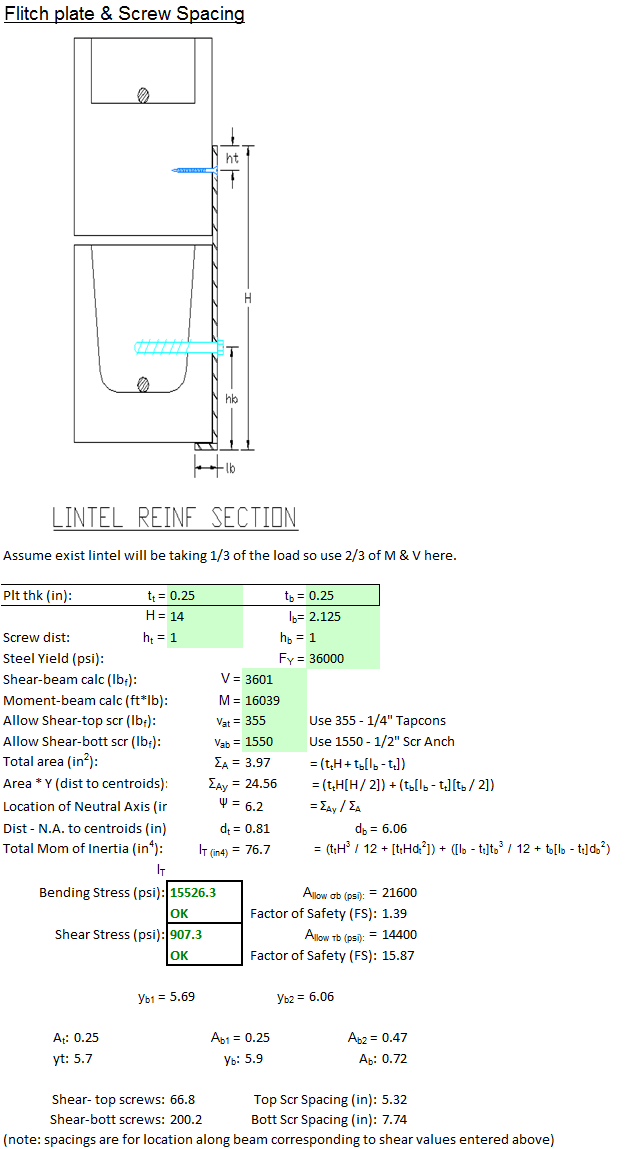

Calculation Preview
Uploaded
27 Jun 2012
Submitted By:
Last Modified
29 Jun 2012
File Size:
54.37 Kb
Downloads:
148
File Version:
1.0
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
×
![avatar JohnDoyle[Admin]](/media/com_osmembership/avatars/62_56e81868b9b33.png){kind=small}
JohnDoyle[Admin]
11 years ago
Thanks for your debut calculation. Good to see you using ExcelCalcs calculation template but you could have used the units feature so that you can swap easily between US and metric units. I have extended your subscription by 3 months by way of thanks. [Admin]
