Wood Column DesignNDS2005 LRFD

Rating:
3

Description


Checks a wood column (built-up or solid) for axial load only members. Calculation verified 2005 Edition of Examples-Structural Wood Design Solved Example Problems. Calculation is using LRFD and is based on NDS 2005.

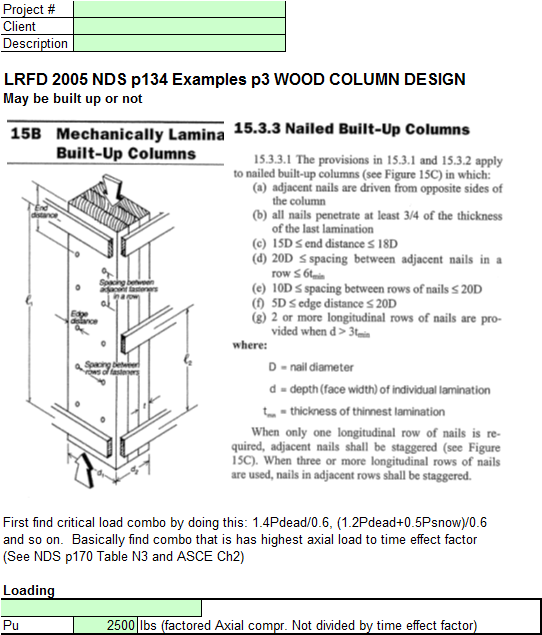

LRFD 2005 NDS p134 Examples p3 WOOD COLUMN DESIGN. May be built up or not. First find critical load combo by doing this: 1.4Pdead/0.6, (1.2Pdead+0.5Psnow)/0.6 and so on.  Basically find combo that is has highest axial load to time effect factor (See NDS p170 Table N3 and ASCE Ch2).

Calculation Reference
Design with Wood
Wooden Structural Analysis
NDS 2005 LRFD

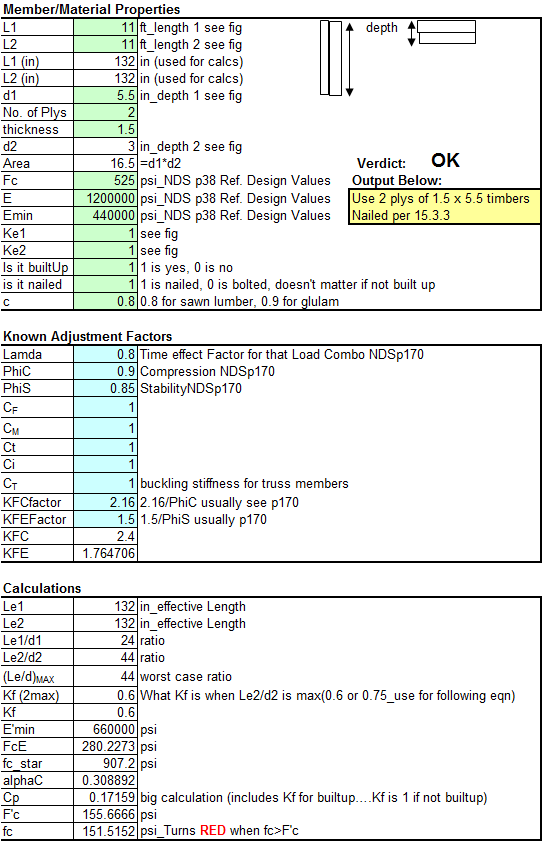

Calculation Preview

Uploaded
12 Oct 2011
Last Modified
12 Oct 2011
File Size:
113.53 Kb
Downloads:
253
File Version:
1.0
File Author:
Adam Crosby
Rating:
3


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 2
AmeerMansour 4 years ago
is there a possible way to try it?
JohnDoyle[Admin] 12 years ago
Nice calculation. I have awarded you a free 3 month subscription by way of thanks.[Admin]
