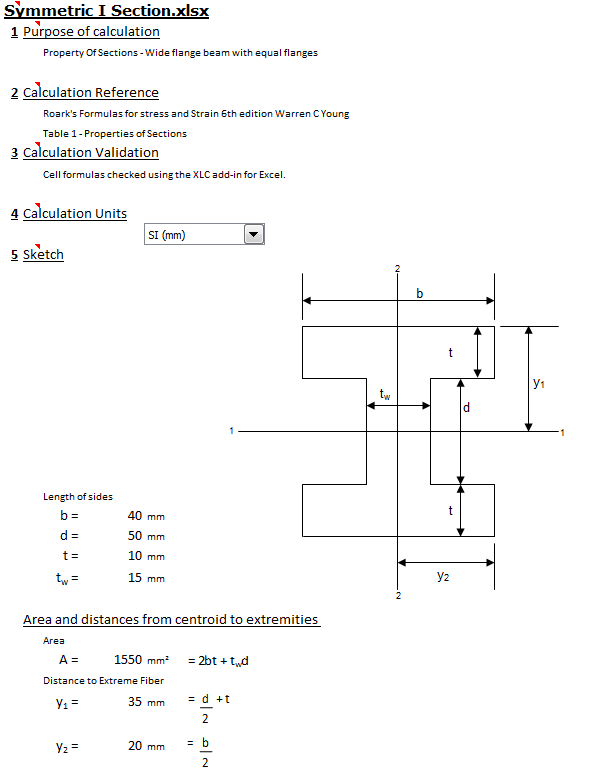

Symmetric I Section

Copy to Native Excel:
Click in the text area below and copy. Then paste into cell A1 of a worksheet. All the formulas are brought in intact but Excel default behaviour controls formatting. A better transfer can be achieved using our XLC add-in for Excel (see below).

<table><tbody><tr><td></td>	<td></td>	<td>Length of sides</td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>b =</td>	<td>40</td>	<td>mm</td>	<td>in</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>d =</td>	<td>50</td>	<td>mm</td>	<td>in</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>t =</td>	<td>10</td>	<td>mm</td>	<td>in</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>tw =</td>	<td>15</td>	<td>mm</td>	<td>in</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td>Area and distances from centroid to extremities </td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td>Area</td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>A =</td>	<td>=2*E2*E4+E5*E3</td>	<td>mm²</td>	<td>in²</td></tr>
				<tr><td></td>	<td></td>	<td>Distance to Extreme Fiber</td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>y1 =</td>	<td>=(E3)/(2)+E4</td>	<td>mm</td>	<td>in</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>y2 =</td>	<td>=(E2)/(2)</td>	<td>mm</td>	<td>in</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>

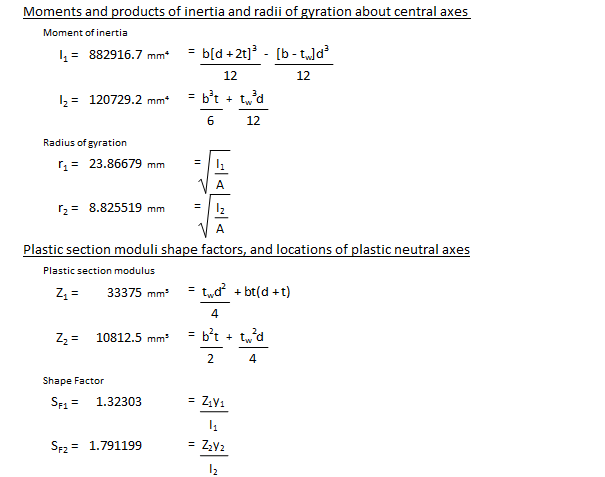

				<tr><td></td>	<td>Moments and products of inertia and radii of gyration about central axes </td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td>Moment of inertia</td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>I1 =</td>	<td>=(E2*(E3+2*E4)^3)/(12)-((E2-E5)*E3^3)/(12)</td>	<td>mm⁴</td>	<td>in⁴</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>I2 =</td>	<td>=(E2^3*E4)/(6)+(E5^3*E3)/(12)</td>	<td>mm⁴</td>	<td>in⁴</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td>Radius of gyration</td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>r1 =</td>	<td>=SQRT((E17)/(E9))</td>	<td>mm</td>	<td>in</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>r2 =</td>	<td>=SQRT((E19)/(E9))</td>	<td>mm</td>	<td>in</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td>Plastic section moduli shape factors, and locations of plastic neutral axes</td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td>Plastic section modulus </td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>Z1 =</td>	<td>=(E5*E3^2)/(4)+E2*E4*(E3+E4)</td>	<td>mm³</td>	<td>in³</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>Z2 =</td>	<td>=(E2^2*E4)/(2)+(E5^2*E3)/(4)</td>	<td>mm³</td>	<td>in³</td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td>Shape Factor</td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>SF1 =</td>	<td>=(E28*E11)/(E17)</td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td>	<td></td></tr>
				<tr><td></td>	<td></td>	<td></td>	<td>SF2 =</td>	<td>=(E30*E13)/(E19)</td>	<td></td>	<td></td></tr></tbody></table>
