When Infrastructure Fails from Below: The Burgrain Railway Disaster

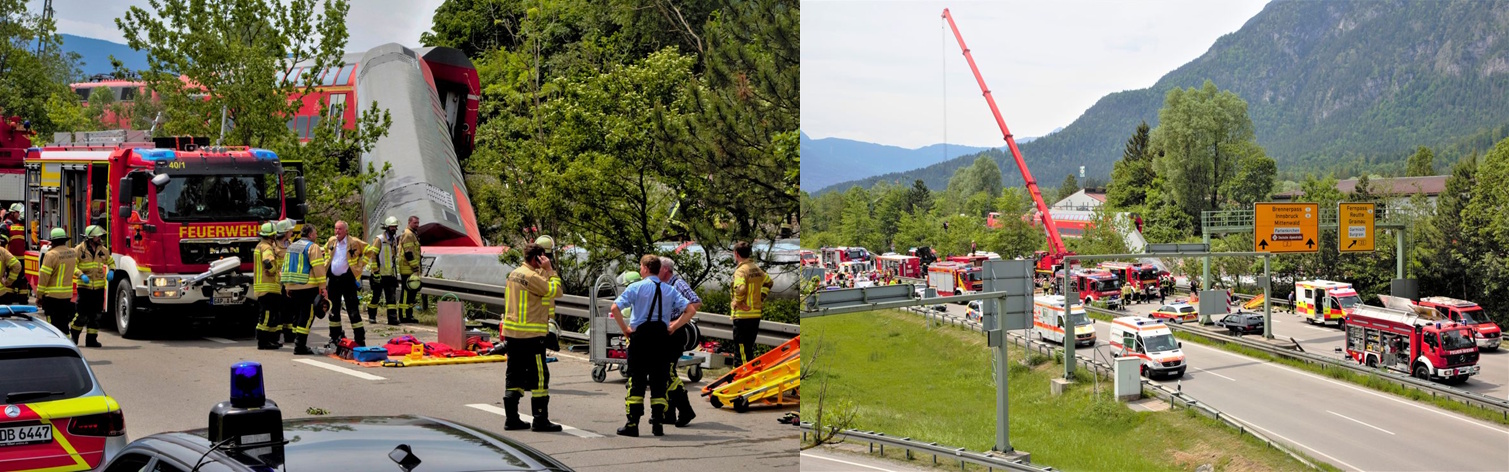

On June 3, 2022, at 12:16 PM, a regional train traveling from Garmisch-Partenkirchen to Munich derailed near Burgrain, Germany, killing five people and injuring 78 others in a tragedy that exposed the critical importance of beam on elastic foundation theory in railway engineering. The Federal Bureau for Investigation of Railway Accidents determined that the primary cause was "infrastructure failure"—specifically, prestressed concrete sleepers that had lost their structural integrity due to faulty manufacturing, leading to a catastrophic loss of rail support.
The investigation revealed that the concrete sleepers showed "signs of damage indicating a loss of tension within the sleeper," which caused "failure of the structure and breaking away of the rail support in the direction of the initiated forces." In engineering terms, the railway track system—which functions as a beam on elastic foundation with rails acting as continuous beams supported by discrete sleepers on an elastic ballast foundation—had experienced a fundamental failure in its load transfer mechanism. The damaged sleepers could no longer provide adequate support stiffness, effectively reducing the elastic foundation modulus and causing track gauge widening that led to derailment.
This disaster illustrates the critical importance of understanding beam on elastic foundation behavior, where structural elements must transfer loads to supporting media that can deform elastically. Railway tracks represent the most visible application of this engineering principle, but the same theory governs pipeline design, highway pavements, and foundation systems where flexible structures interact with deformable supporting media.
Beam Deflection on Elastic Foundation = Load ÷ Foundation Stiffness
w = P / (k × l)
Where w is the beam deflection, P is the applied load, k is the foundation modulus (subgrade reaction), and l is the characteristic length. At Burgrain, the failure of concrete sleepers effectively reduced k to near zero in critical areas, causing excessive deflection and loss of track geometry.
The Engineering Foundation: Understanding Beam-Soil Interaction
Beam on elastic foundation theory addresses one of structural engineering's most complex challenges: analyzing the behavior of structural elements that derive their support from continuous contact with deformable media rather than discrete supports. This analysis method applies to numerous engineering applications where rigid structures interact with elastic supporting systems, creating unique load distribution and deformation patterns.
The fundamental principle underlying beam on elastic foundation analysis involves the assumption that the supporting medium provides a reaction force proportional to the local deflection at each point along the beam. This relationship, known as the Winkler foundation model, treats the supporting soil or material as a series of independent elastic springs, each providing resistance proportional to its compression.
Foundation Reaction Pressure = Modulus × Local Deflection
q(x) = k × w(x)
Where q(x) is the foundation reaction pressure at position x, k is the modulus of subgrade reaction, and w(x) is the beam deflection at that position. This linear relationship enables mathematical analysis of complex loading scenarios while maintaining reasonable accuracy for most practical applications.
The governing differential equation for beam on elastic foundation behavior combines standard beam theory with the elastic foundation relationship, creating a fourth-order differential equation that describes deflection patterns under various loading conditions.
Beam Equation with Elastic Foundation = Standard Beam + Foundation Terms
EI × d⁴w/dx⁴ + k × w = q(x)
Where EI is the beam flexural rigidity, w is deflection, x is position along the beam, and q(x) represents applied loads. This equation demonstrates how foundation stiffness directly influences beam behavior—stiffer foundations reduce deflections while softer foundations allow larger deflections that distribute loads over greater lengths.
The characteristic length of the beam-foundation system determines the scale over which loads influence deflections and provides insight into load distribution patterns.
Characteristic Length = Function of Beam and Foundation Properties
l = (4 × EI / k)^(1/4)
Where l represents the distance over which significant load transfer occurs. Shorter characteristic lengths indicate stiffer foundations that concentrate loads near application points, while longer characteristic lengths suggest more flexible foundations that distribute loads over extended areas.
Real-World Applications: Where Beams Meet Elastic Foundations
Beam on elastic foundation theory governs the design and analysis of countless infrastructure systems that form the backbone of modern transportation and utilities. Railway tracks represent perhaps the most visible application, where steel rails function as continuous beams supported by discrete sleepers resting on ballast or slab track systems that provide elastic foundation behavior.
Highway and airport pavements present another critical application where concrete or asphalt slabs act as beams on elastic foundations provided by compacted subgrade materials. The analysis of pavement response to wheel loads, load transfer at joints, and long-term performance under repeated loading all depend on beam on elastic foundation principles to predict deflections, stresses, and fatigue life.
Our repository's BOEF.xls calculation (downloaded over 1,273 times with a 4.5-star rating), developed by community contributor Alex Tomanovich, addresses these complex analysis scenarios. This comprehensive tool analyzes beams on elastic foundations for various loading conditions including point loads, distributed loads, and moments while considering different boundary conditions and foundation characteristics. The calculation provides detailed analysis of deflections, moments, shears, and foundation reactions that engineers need for both structural design and performance verification.
Pipeline engineering relies heavily on beam on elastic foundation analysis for designing buried pipelines that must resist external loads, internal pressures, and soil movements while maintaining structural integrity. Long-distance oil and gas pipelines, water transmission mains, and utility tunnels all require analysis methods that account for the flexible interaction between the pipe structure and surrounding soil medium.
Foundation systems for structures on soft soils often employ beam on elastic foundation principles, where grade beams or mat foundations distribute building loads over deformable soil layers. The analysis of load distribution, differential settlement, and structural adequacy requires understanding of beam-soil interaction to ensure acceptable performance under service loads.
Marine structures such as piers, wharves, and offshore platforms frequently utilize beam on elastic foundation analysis for elements supported by pile groups or resting on elastic seabed materials. The dynamic response of these structures to wave loading, vessel impact, and environmental forces requires sophisticated analysis methods that account for the flexible nature of the supporting medium.
The Hidden Complexity: Why Simple Beam Analysis Fails on Flexible Foundations
What appears straightforward in traditional beam analysis—calculating deflections and stresses for given loads and supports—becomes extraordinarily complex when the supports themselves can deform and redistribute loads. The interaction between beam flexibility and foundation stiffness creates coupled behavior where local loading affects the entire system, challenging conventional analysis approaches.
The Winkler foundation model, while mathematically tractable, simplifies actual soil behavior by assuming independent spring action at each point. Real soils exhibit continuity effects where loading at one location influences stress and deformation patterns over extended areas, requiring more sophisticated analysis methods for critical applications.
Elastic Foundation Continuity = Shear Interaction Between Springs
τ = G × (∂w/∂y)
Where τ represents shear stress between adjacent foundation elements, G is the soil shear modulus, and ∂w/∂y is the deflection gradient perpendicular to the beam. This relationship shows how actual foundation behavior differs from the simplified Winkler model, particularly for flexible beams on stiff foundations.
Load distribution characteristics depend heavily on the ratio of beam stiffness to foundation stiffness, creating different behavioral regimes that require different analysis approaches. Very stiff beams on flexible foundations tend to bridge weak areas and distribute loads widely, while flexible beams on stiff foundations conform to foundation irregularities and concentrate loads near application points.
Relative Stiffness Parameter = Beam Stiffness ÷ Foundation Stiffness
β = (k / 4EI)^(1/4)
Where β determines the load distribution characteristics and influences the solution form for deflections and moments. High β values indicate stiff foundations relative to beam stiffness, while low values suggest flexible foundations that allow extensive load spreading.
Boundary conditions significantly complicate beam on elastic foundation analysis, as the semi-infinite nature of most foundation systems requires special treatment of beam ends and discontinuities. The interaction between finite beam length and infinite foundation extent creates boundary effects that influence load distribution and stress patterns throughout the structure.
While these complex interactions challenge traditional analysis methods, our XLC add-in displays all governing equations as easily readable mathematical expressions directly in Excel, transforming sophisticated beam-foundation interaction calculations into manageable engineering analysis. The add-in's equation verification feature allows engineers to check their beam on elastic foundation calculations against established theory while maintaining the familiar Excel environment.
Professional Approach: Ensuring Beam on Elastic Foundation Performance
Professional beam on elastic foundation analysis demands comprehensive understanding of structural mechanics, soil mechanics, and the complex interactions between these disciplines that govern real-world performance. The consequences of inadequate analysis can be catastrophic, as demonstrated by the Burgrain derailment where foundation system failure led to loss of life and major infrastructure damage.
Modern analysis practice emphasizes validation through multiple approaches, including simplified hand calculations, sophisticated computer analysis, and field testing to verify design assumptions. The nonlinear behavior of many foundation materials, time-dependent effects such as consolidation and creep, and the influence of environmental factors all require consideration beyond basic elastic foundation theory.
The ExcelCalcs community shares a passion for making accurate beam on elastic foundation calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature and learn from the extensive experience of practitioners who have analyzed countless beam-foundation systems. Our repository's worked solutions give engineers a head start in solving complex interaction problems, building on existing Excel skills with a much faster learning curve than specialized finite element software.
Our BOEF.xls calculation, expertly developed by Alex Tomanovich, provides not just the calculation methodology but also the documentation standards expected in professional practice. The comprehensive analysis includes checks for deflection limits, stress levels, foundation capacity, and load distribution that engineers need for complete beam on elastic foundation verification.
Quality assurance in beam on elastic foundation design requires checking multiple performance criteria: structural adequacy under design loads, deflection limits for serviceability, foundation stability and bearing capacity, and long-term performance under repeated loading. Each criterion requires different analysis approaches and safety factors, creating a comprehensive framework that addresses all aspects of beam-foundation interaction.
Construction monitoring becomes critical for beam on elastic foundation systems, as variations in foundation preparation, beam installation, and loading sequence can significantly impact final performance. Regular monitoring of deflections, settlements, and stress levels helps ensure that the constructed system matches design assumptions and performance expectations.
Repository Showcase: Comprehensive Beam on Elastic Foundation Solutions
The ExcelCalcs repository offers specialized tools for beam on elastic foundation analysis to address various applications and analysis requirements. Beyond our flagship BOEF.xls analysis, engineers can access related calculations including Beam on elastic foundation for alternative analysis approaches (192 downloads, 3.4-star rating), Calculation of Modulus of Subgrade Reaction for foundation characterization (120 downloads, 4.2-star rating), and Continuous Beam Analysis (up to 4 spans) for multi-span applications (738 downloads, 3.3-star rating).
For comprehensive beam analysis projects, our repository includes Continuous Concrete Beams.xls (786 downloads, 3.6-star rating) and Influence lines in continuous beam for moving load analysis (207 downloads, 4.0-star rating). These complementary tools ensure that engineers have access to both simplified and sophisticated analysis methods appropriate for their specific beam on elastic foundation challenges, whether designing railway infrastructure, highway pavements, pipeline systems, or foundation elements that must interact with deformable supporting media.
