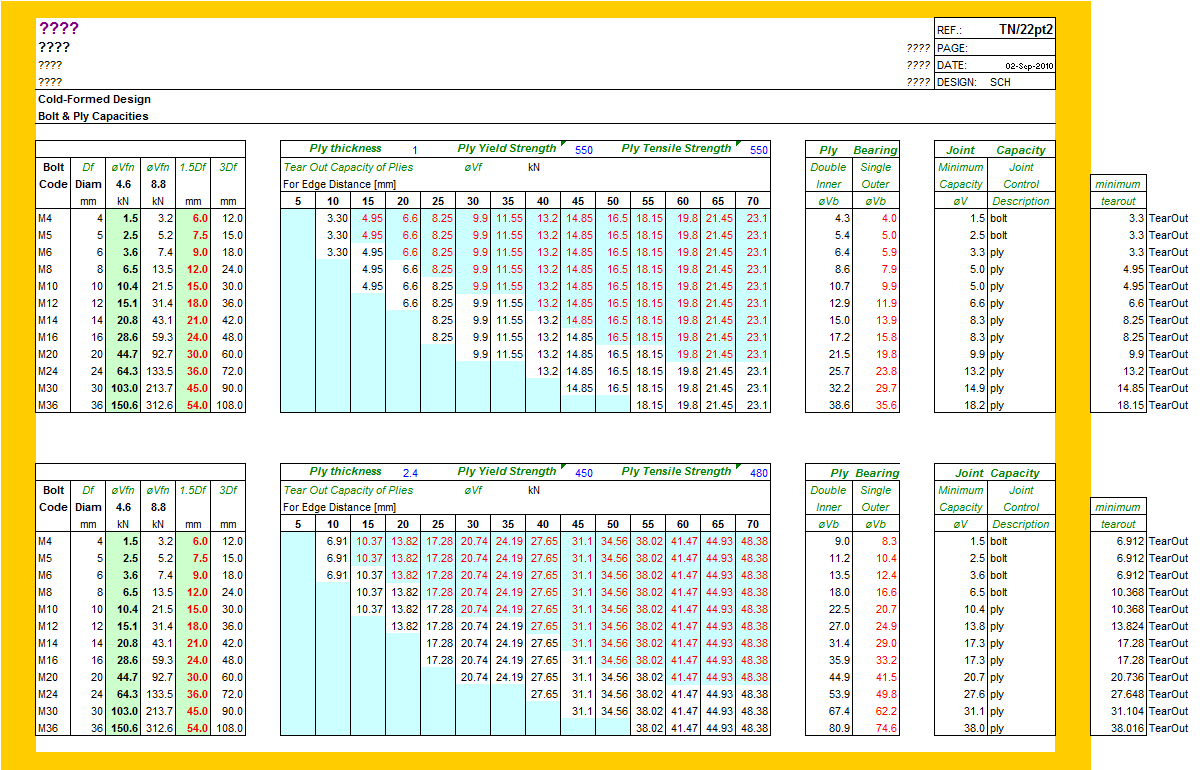

Tables for strength of bolted joints in thin coldformed steel sheets to AS4600



A single worksheet with two tables, the material thickness and strength can be changed to produce printed look up tables for a variety of materials. The calcuations are to Australian coldformed steel structures code AS4600. It covers bolt bearing, and tear out on the thin sheets, with and without washers. In general there is little benefit to using PC 8.8 bolts in thin sheet metal in shear, since cannot develop the full capacity of the bolts before the sheet starts to fail. So would typically adopt PC 4.6 bolts. Similar problems to bolting timber structures.

Calculation Reference
Structural Analysis
Bolted Joint Design
Threaded Fastener Design

Calculation Preview

Submitted On:
16 Feb 2014
File Size:
572.00 Kb
File Version:
File Author:
Conrad Harrison

Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
InfoJunkie65 11 years ago
Uploaded sample printout at scribd:
