Stress Concentration Factor on Circular Shaft Under Bending.xls

Rating:
8

Description


Purpose of calculation
Calculate stress concentration factor in the shoulder of a circular section shaft subject to bending loads.
Calculation Reference
PETERSON Stress Concentration Factors (2nd ED)
Calculation Validation
Formulae checked using the XLC add-in

Calculation Reference
Roark's Formulas for Stress and Strain
Petersons Stress Concentration Factors
Machine Design

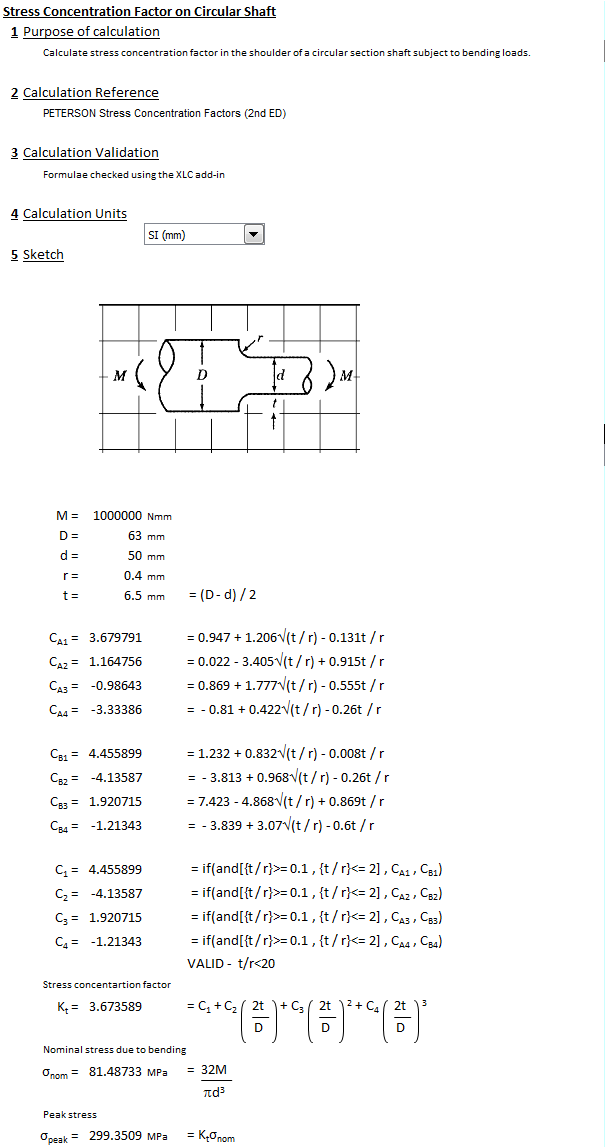

Calculation Preview

Submitted On:
04 Mar 2011
File Size:
247.50 Kb
Downloads:
99
File Version:
1.0
File Author:
John Doyle
Rating:
8


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Be the first to comment! Please sign in or register.
