ACI 318M-11 Slab Punching stress using RamConcept & calculate of punching shear reinforcement

Rating:
13

Description


ACI 318M-11 Slab Punching stress using RamConcept & calculate of punching shear reinforcement_Rev0.1_2017-05-30.xlsx

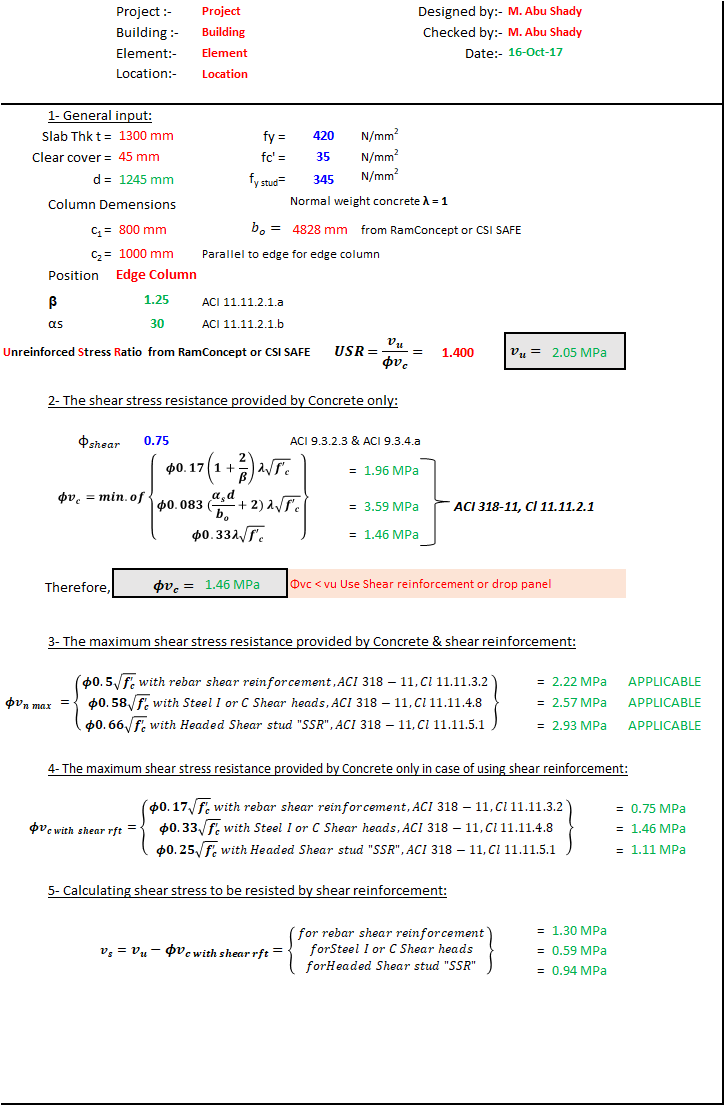

1- General input:
2- The shear stress resistance provided by Concrete only:
3- The maximum shear stress resistance provided by Concrete & shear reinforcement:
4- The maximum shear stress resistance provided by Concrete only in case of using shear reinforcement:
5- Calculating shear stress to be resisted by shear reinforcement:

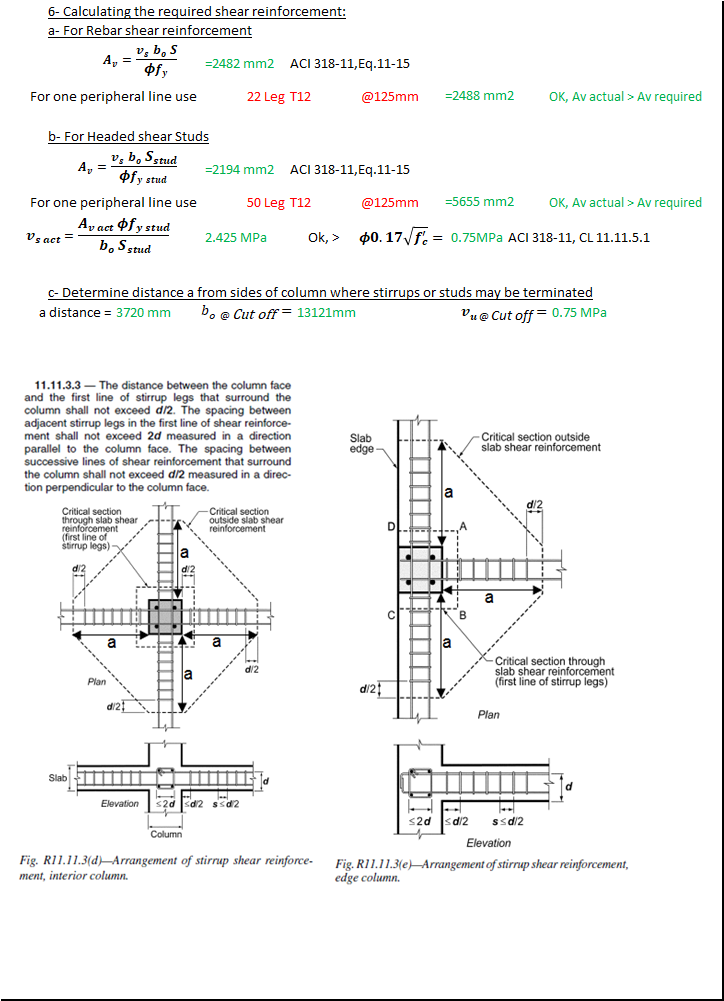

6- Calculating the required shear reinforcement:
a- For Rebar shear reinforcement
b- For Headed shear Studs
c- Determine distance a from sides of column where stirrups or studs may be terminated

Calculation Reference
ACI 318M-11
Slab Punching
Reinforced concrete design

Calculation Preview
