Beam design Check
Description

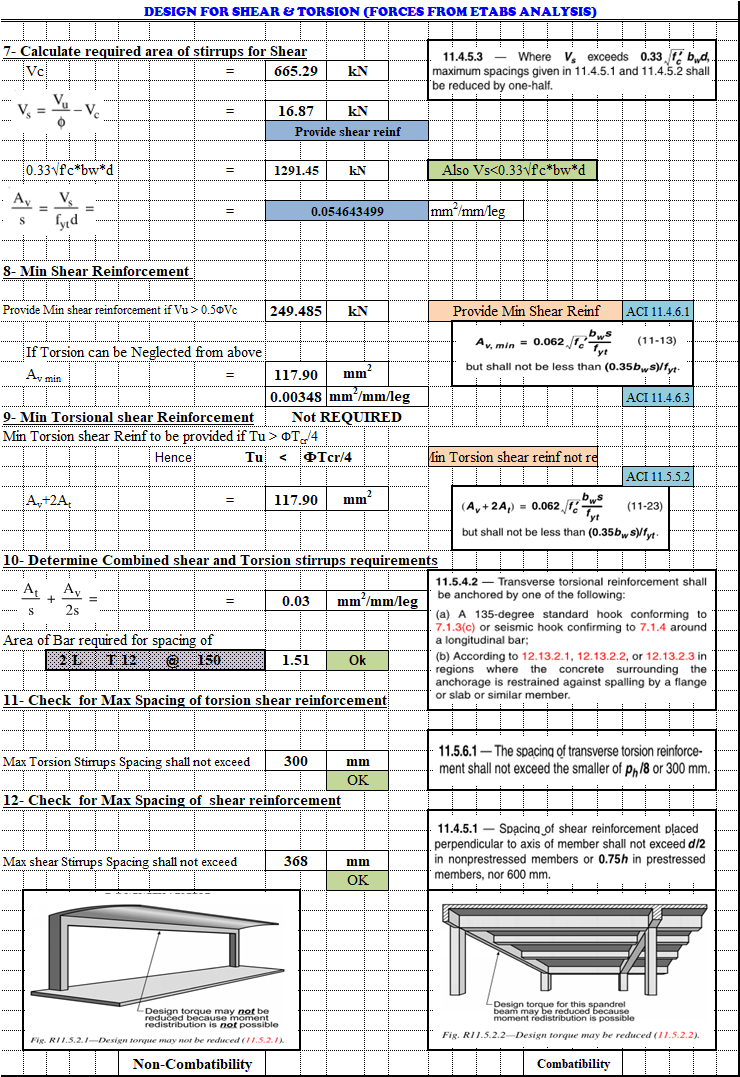

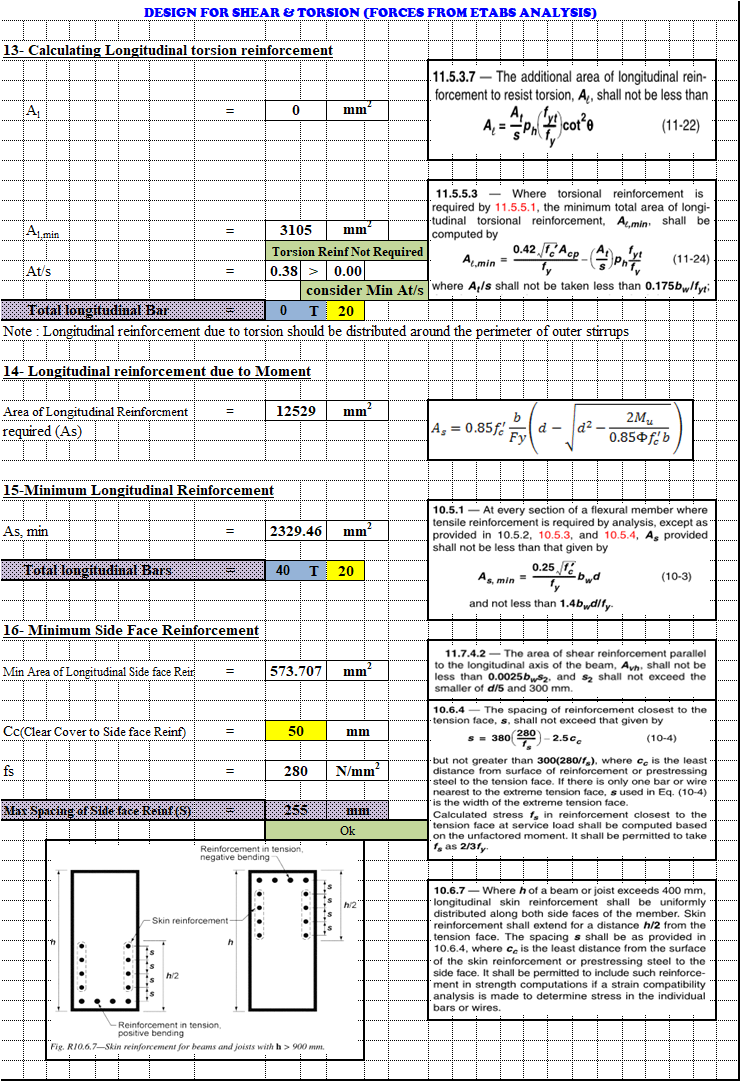

DESIGN FOR SHEAR & TORSION (FORCES FROM ETABS ANALYSIS)
1- Check for Shear & Torsion Section capacity(Check for crushing of concrete Compresion strut )
2- Check for Max. allowable Shear
3- Check if Torsion may be neglected
4- Tcrack(Cracked Torsion)
5- Torsion Comparison Table
6- Determine required area of Stirrups for Torsion
7- Calculate required area of stirrups for Shear
8- Min Shear Reinforcement
9- Min Torsional shear Reinforcement
10- Determine Combined shear and Torsion stirrups requirements
11- Check for Max Spacing of torsion shear reinforcement
12- Check for Max Spacing of shear reinforcement
13- Calculating Longitudinal torsion reinforcement
14- Longitudinal reinforcement due to Moment
15-Minimum Longitudinal Reinforcement
16- Minimum Side Face Reinforcement
Calculation Reference
Concrete Design
Beam Design
Combined Beam Loading
Calculation Preview
