Eathquake Lateral Forces ASCE7-05 / IBC 2006



Earthquake Lateral Forces according ASEC7-05 / IBC 2006:
 Building Location Cairo
 Soil Profile Description - TABLE 20.3-1
 Site Class - TABLE 20.3-1
 Site coefficients  Fa, Fv TABLE 11.4-1, TABLE 11.4-2
 Design Spectral Acceleration Parameters:
 Structure Type  Concrete moment-resisting frames TABLE 12.8-2
 TL = long-period transition period
 R Response modification coefficient TABLE 12.2-1
 Building Occupancy Category Table 1-1
 I  (Importance Factor) TABLE 11.5-1
 W Building Total Wgt.
Calculation of Equivalent Lateral Force according Clause 12.8:
 a- Calculation of Seismic Response Coefficient Cs according
 b- Calculation of Seismic Base Shear V according Clause 12.8.1

Calculation Reference


IBC 2006

Steel Designers Manual

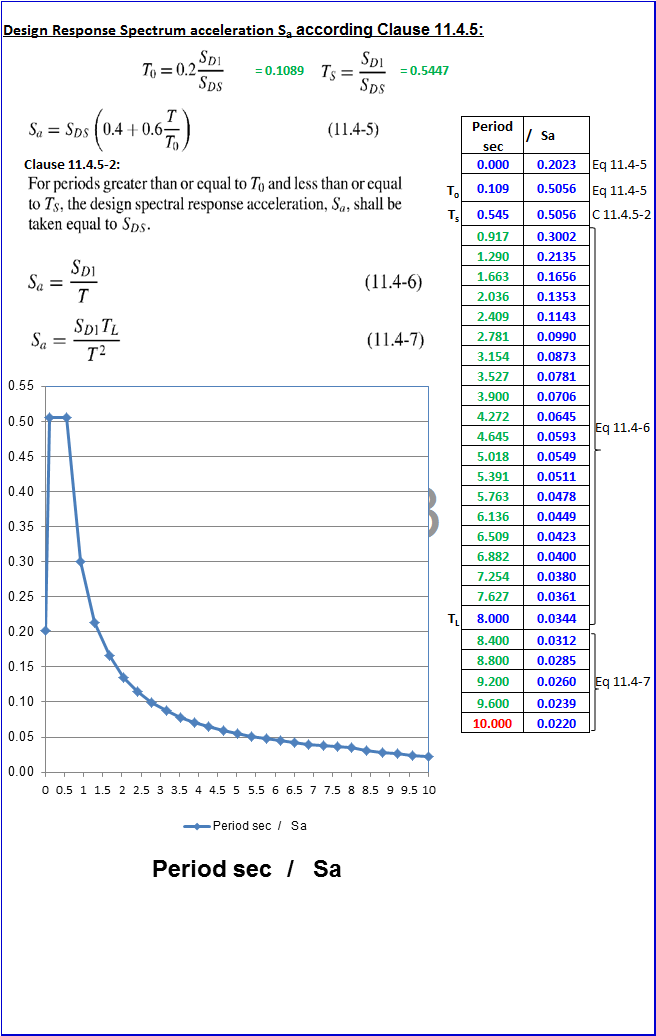

Calculation Preview

17 Nov 2014
File Size: 1,721.00 Kb
Downloads: 313
File Version: 1.0
File Author: Mohamed Abu Shady
File Rating (5/8)

Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
m_ali_abushady 11 years ago
it is according ASEC7-05 / IBC 2006.
JohnDoyle[Admin] 12 years ago
Thanks for another calculation I have awarded a free 3 month subscription by way of thanks. [Admin]
lambert 12 years ago
Based on egyptian code???
