Gable Canopy to Australian Codes

Rating:
0

Description


Timber canopy, similar to those shown in the SA timber development association (TDA) construction guide for pergolas, carports and verandahs. Except with out the 4.2m span limit. The calculations use AS1170 loading code and AS1720 timber structures code. Some assessment of existing house structure is also carried out, for attachment to fascia and rafters of existing house.
The workbook is depedent on:
AS4055.xls
schStruMtrl.xls
schTechLIB.xla
schTimberMatrl.xls

Calculation Reference
Timber Construction
Timber Design
Timber structures

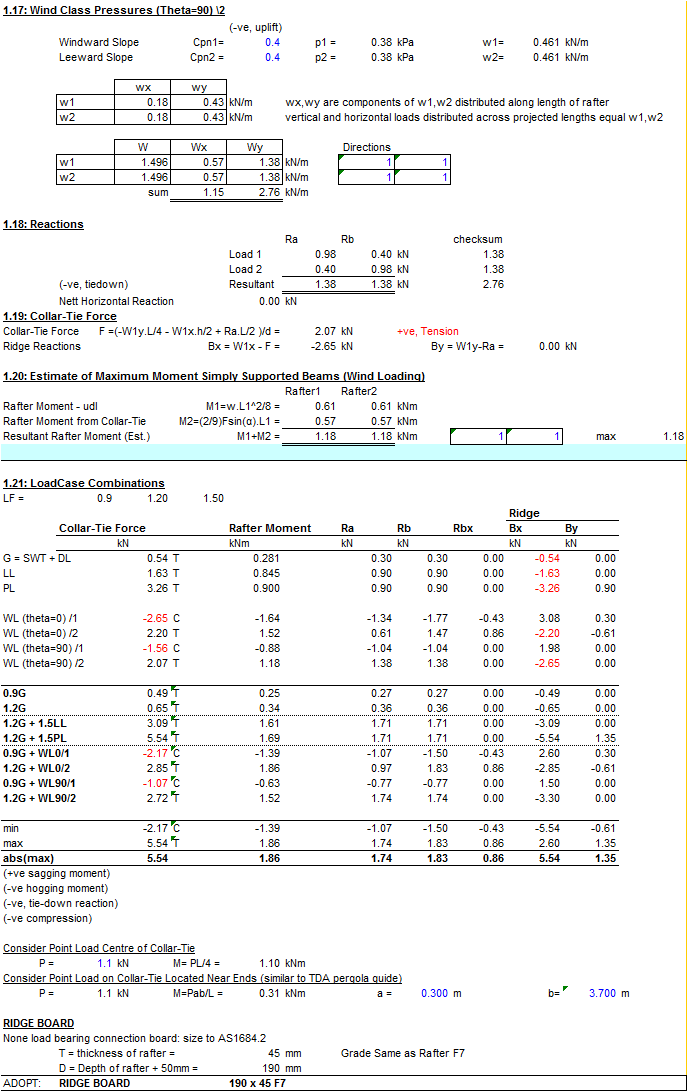

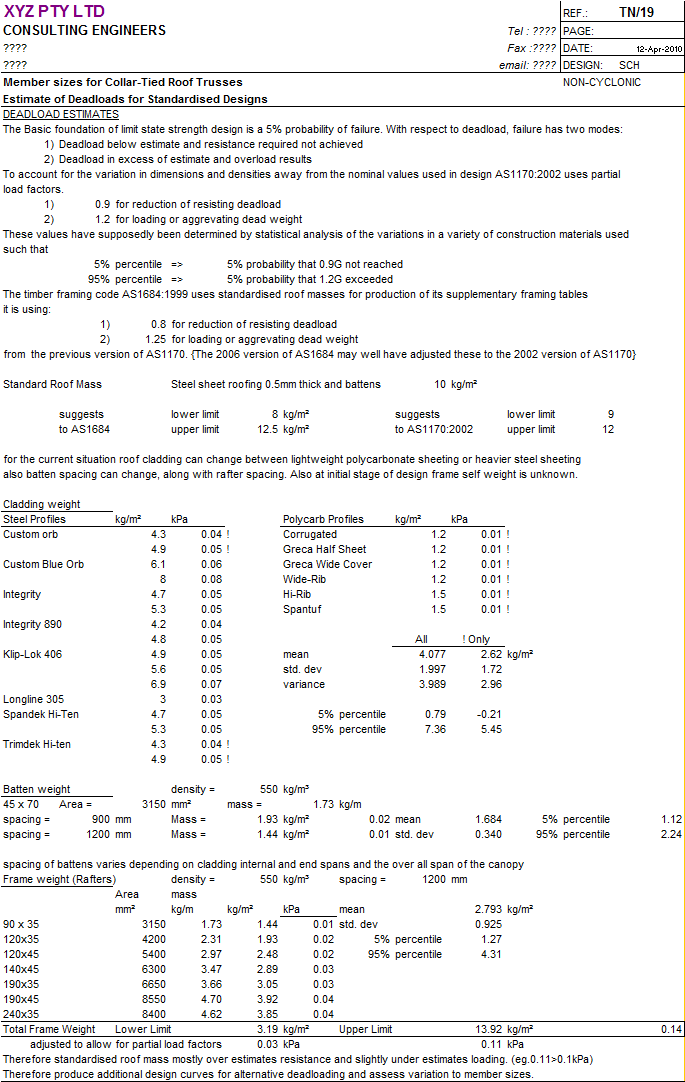

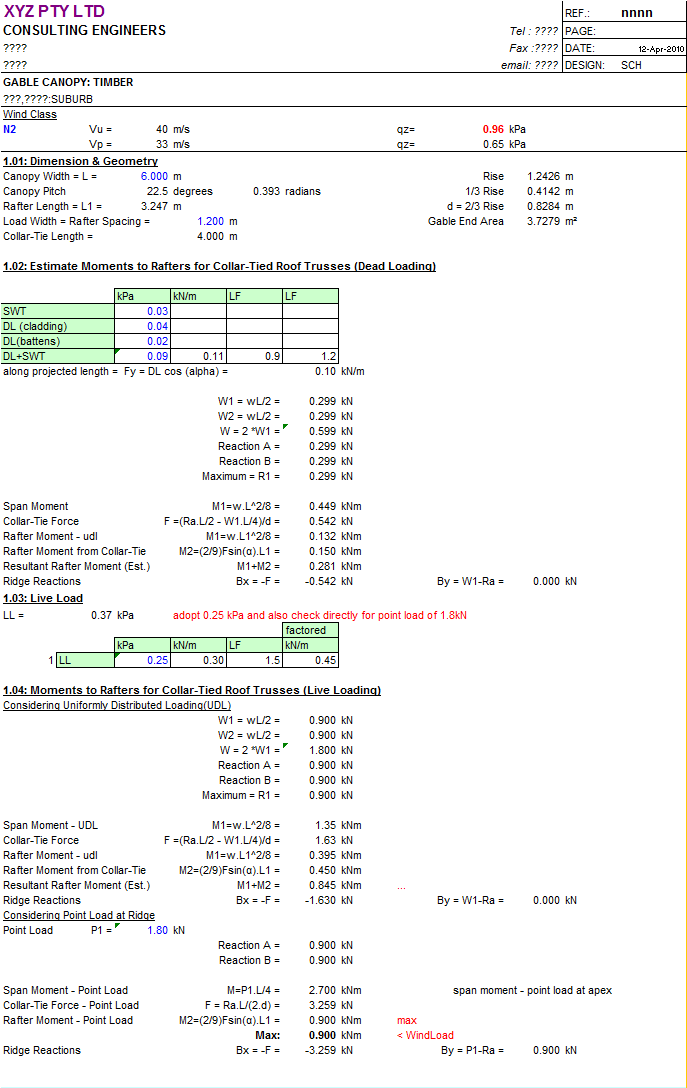

Calculation Preview

Submitted On:
12 Apr 2010
File Size:
329.50 Kb
Downloads:
64
File Version:
1.0
File Author:
Conrad Harrison
Rating:
0


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
InfoJunkie65 11 years ago
I've uploaded a sample printout on scribd:
http://scr.bi/zpEtMT
