Bending of plates



Plate bending solutions for most of the boundary conditions covered by Timoshenko, Walter Pilkey and Roark.

  • Rectangular plate; three edges simply supported, one short edge (b) fixed

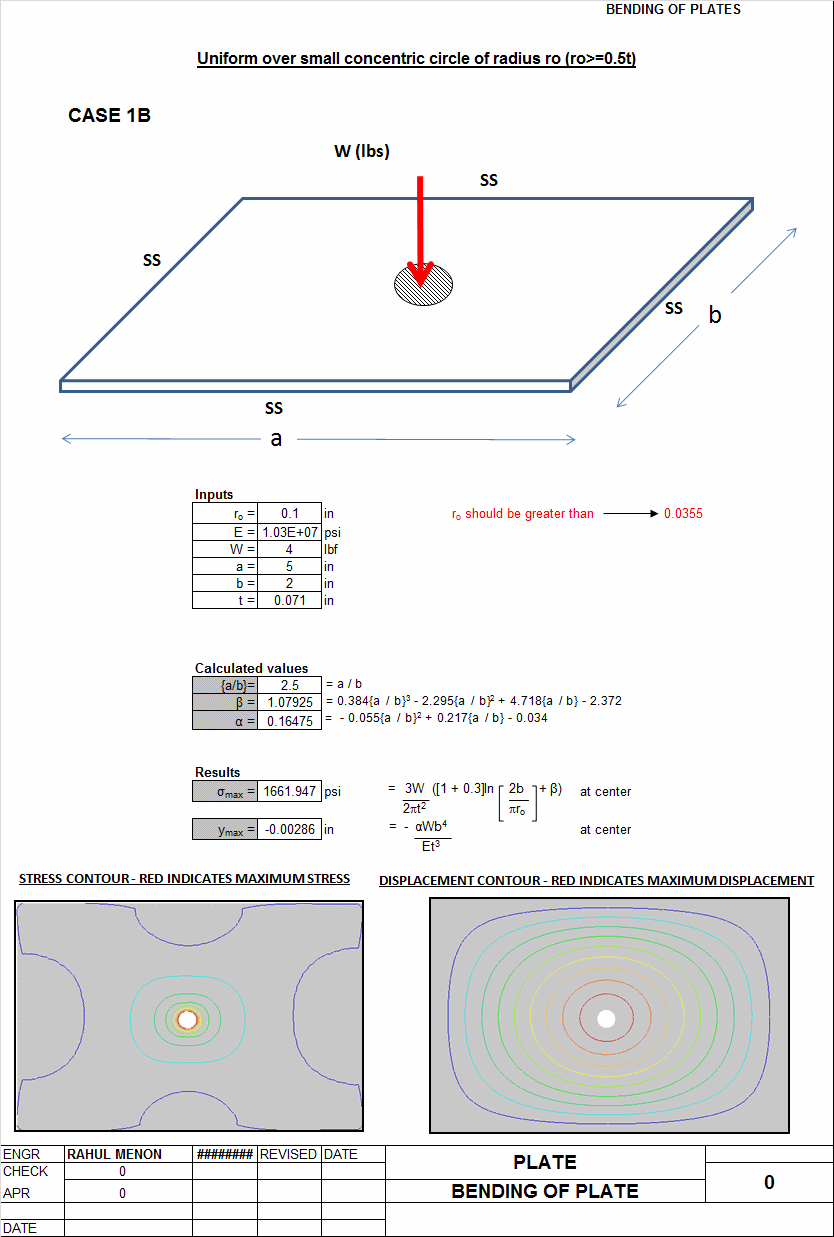

  • Uniform over small concentric circle of radius ro (ro>=0.5t)
  • Rectangular plate, all edges fixed
  • Rectangular plate; three edges fixed, one edge (a) free - UNIFORMLY DISTRIBUTED LOAD

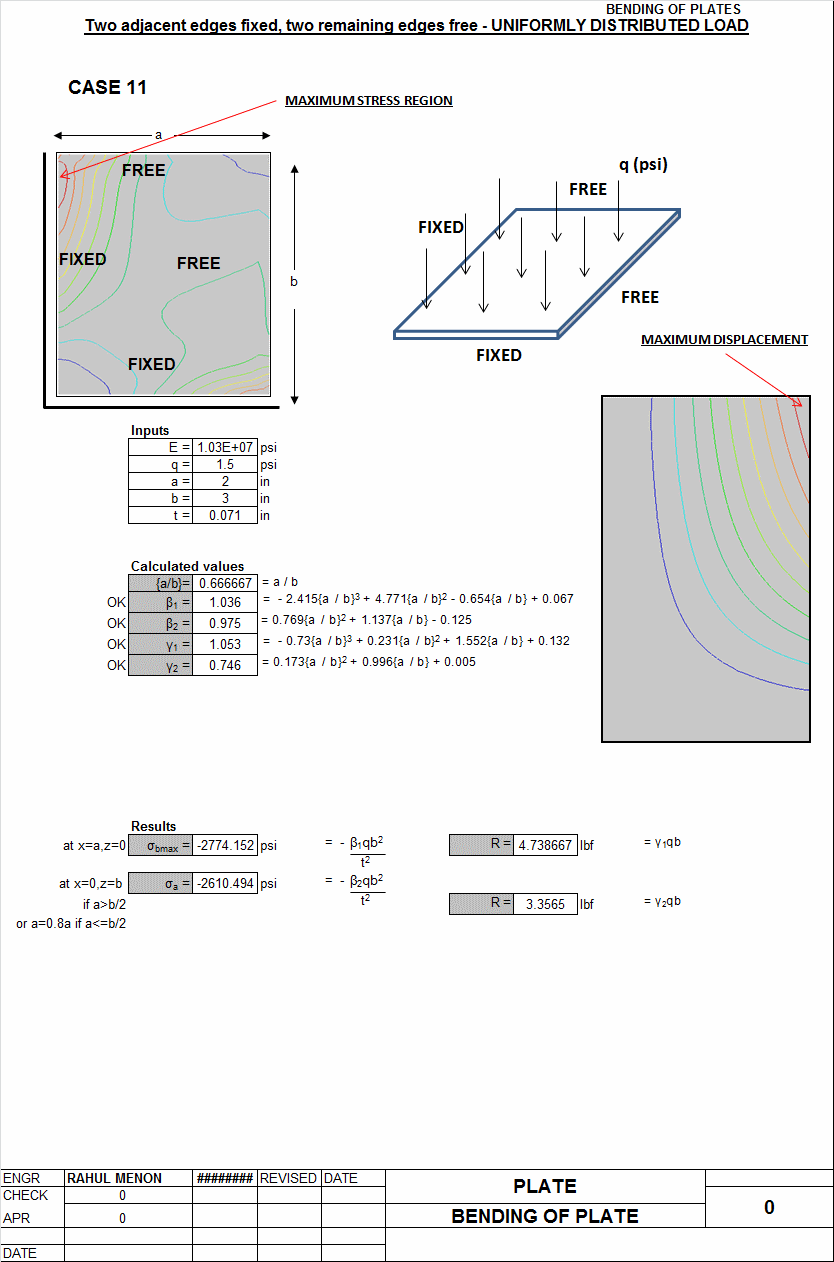

  • Two adjacent edges fixed, two remaining edges free - UNIFORMLY DISTRIBUTED LOAD

Calculation Reference


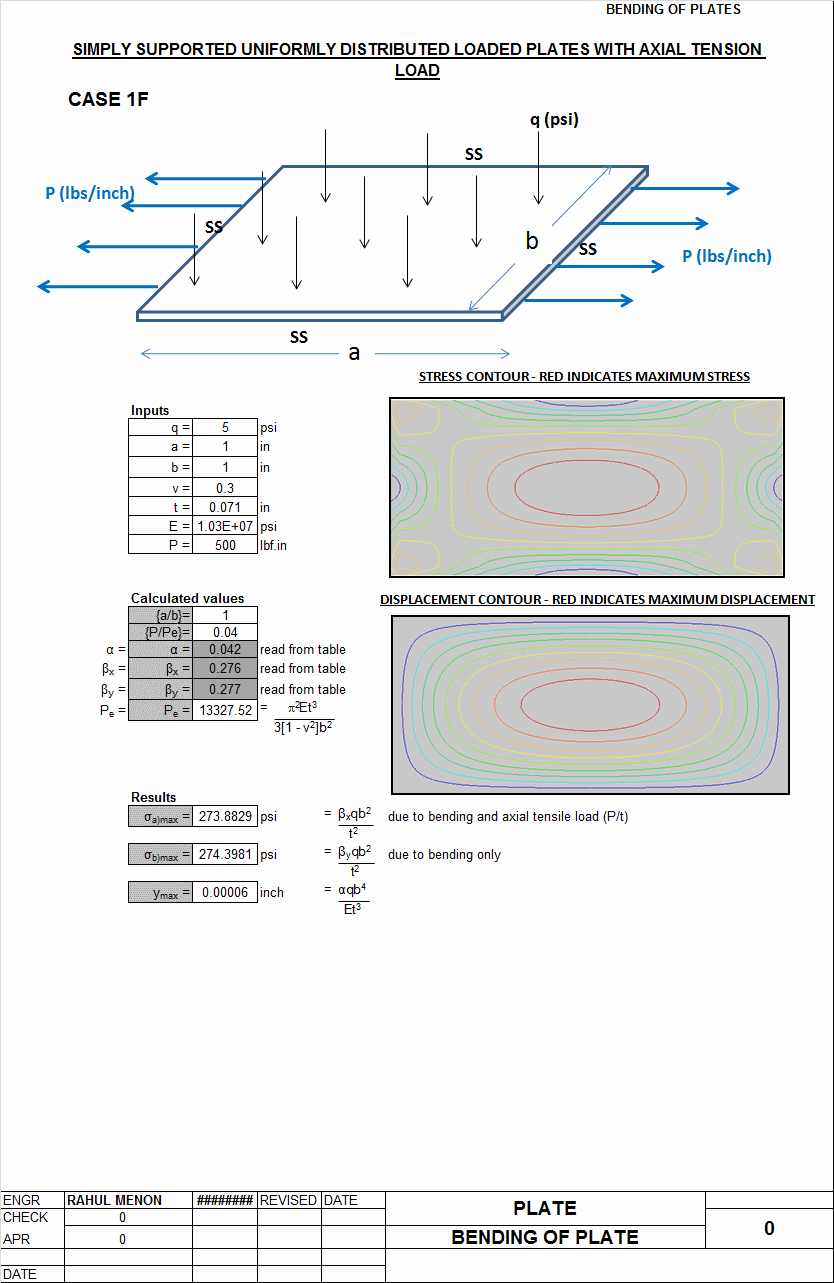

Calculation Preview

14 Apr 2010
Last Modified
14 Apr 2010
File Size:
857.50 Kb
File Version:

Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 22
