Extension Link Check

(5/1)

Description


Check limit states of a strap in tension, per AISC 14th Edition

Calculation Reference

Bolt

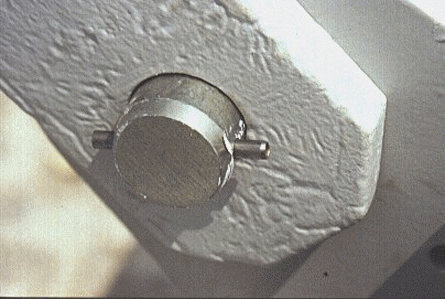

Pinned Joint

Extension Link

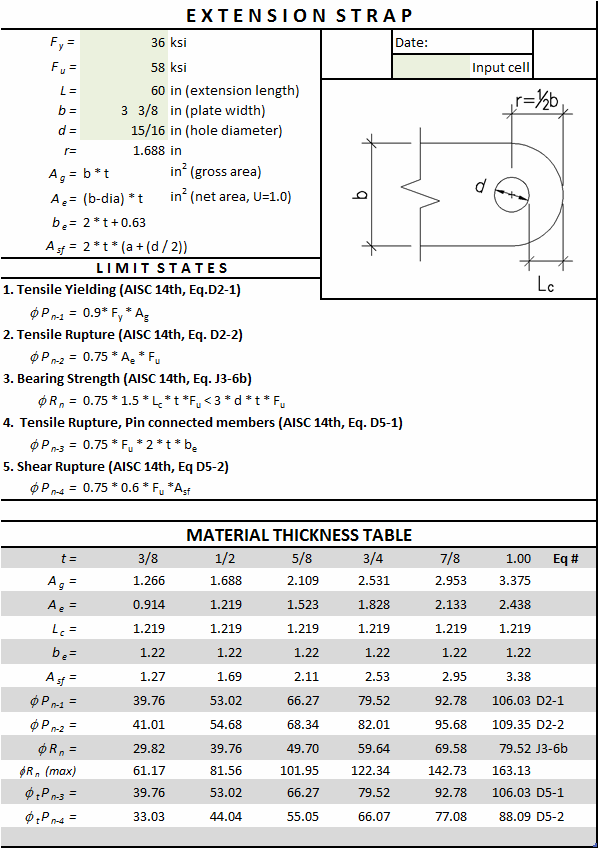

Calculation Preview

Mike Jones (yosso)
14 Aug 2017
File Size: 34.38 Kb
Downloads: 102
File Version: 1.1
File Author: Mike Jones
File Rating (5/1)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 5
yosso 7 years ago
Seems like the file which was uploaded is corrupted. Will upload a new file.
Thank you for your reply.
Mike
jirairs 7 years ago
Can't Open the file !!??
Is this corrupt file?
Jirair
yosso 7 years ago
We appreciate the feedback.
We have added some additional unit clarification and references citations to the workbook.
Thank you for the feedback.
jll4065 7 years ago
As much as I like calcs like Alex Tomanovich's, I do appreciate the brevity of this one. That said, clarification of units in the results would be most helpful, as would some basic documentation. With those additions, I would rate it a "5"
JohnDoyle[Admin] 11 years ago
Thanks again Mike another 3 month extension to your subscription by way of thanks.
