Coped W-Beam seat



Procedure shown in the Vulcraft Design guide for a shallow coped w-beam seat with a bearing plate.

Calculation Reference

Structural steel details

Structural steel design

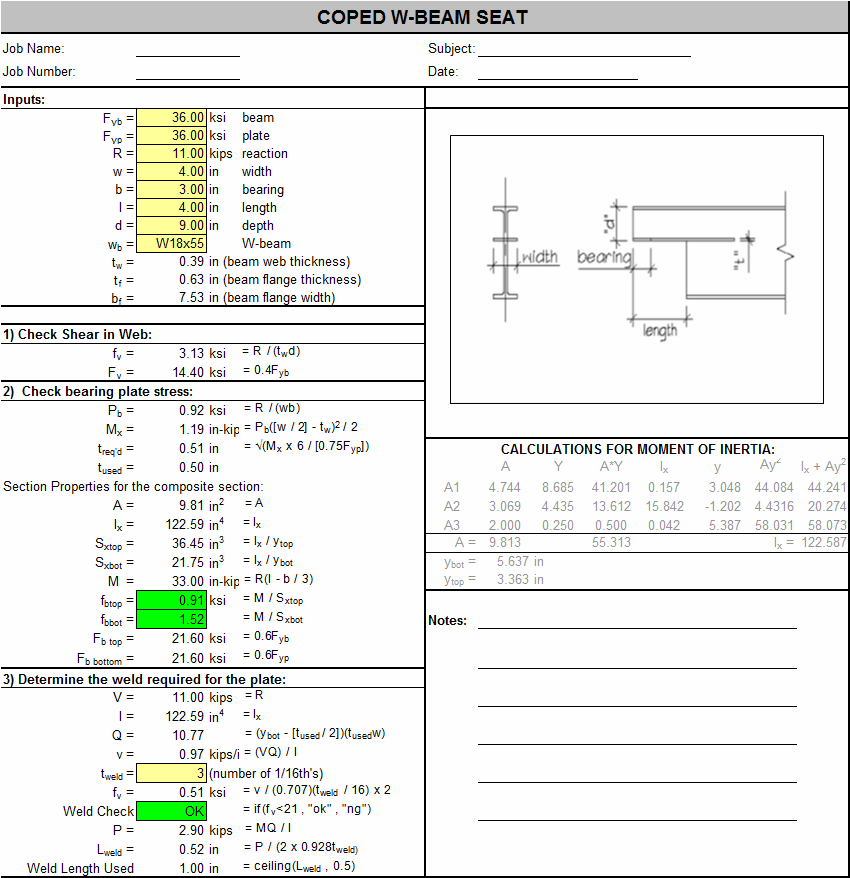

Calculation Preview

Mike Jones (yosso)
22 Jan 2010
File Size: 3,119.00 Kb
Downloads: 225
File Version: 1.1
File Author: Mike Jones
File Rating (4/2)
