Switch Stand Loading (Wind and Seismic)
Description
Allow entry of steel members using a two stage data validation to allow the user to view only the steel shapes of interest. AISC V14.0 was the source for the steel dimensions and weights. Wind loading and seismic loading based on the ASCE Substation Structure Design Guide No. 113
Calculation ReferenceWind Loads
Siesmic Loads
ASCE Substation Structure Design Guide No. 113

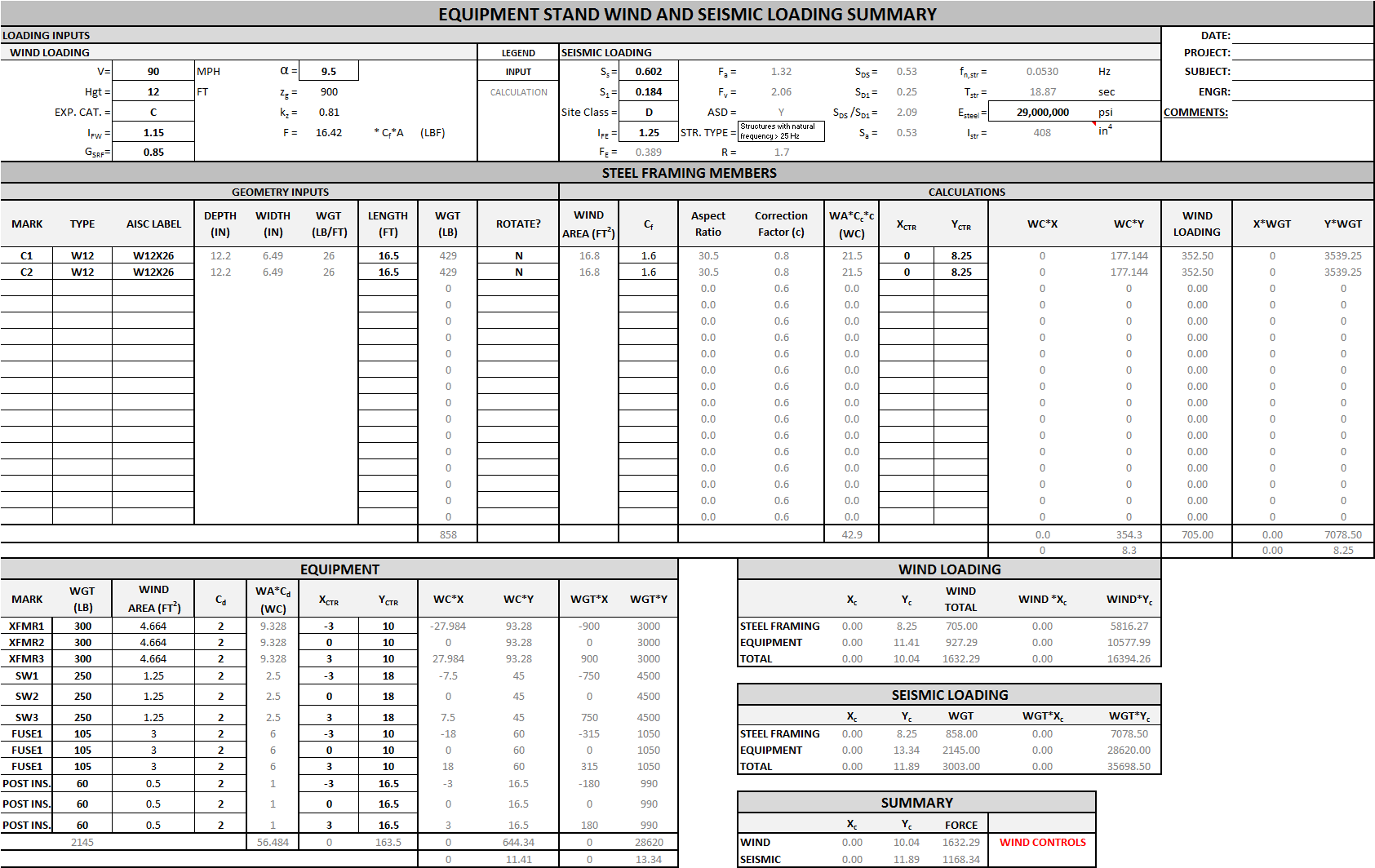

Calculation Preview
Uploaded
19 Jan 2016
Submitted By:
Last Modified
19 Jan 2016
File Size:
1,658.26 Kb
Downloads:
72
File Version:
1.01
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 2
×
yosso
8 years ago
Corrected an error in the steel table.
![avatar JohnDoyle[Admin]](/media/com_osmembership/avatars/62_56e81868b9b33.png){kind=small}
JohnDoyle[Admin]
8 years ago
I have awarded a free 3 month XLC Pro Subscription by way of thanks.
