ACI 318 08 Design of Retaining Wall with Counterfort

Rating:
40

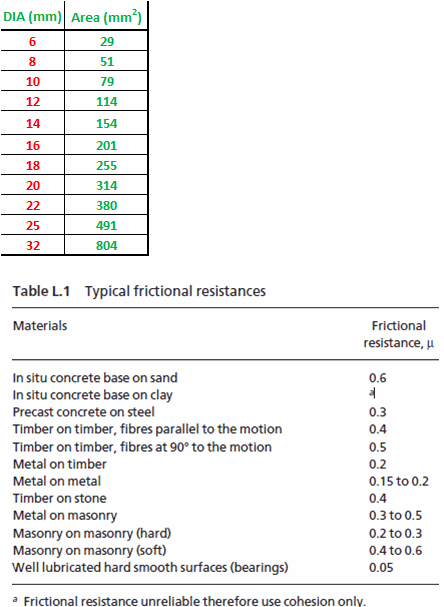

Description


References:
1- Chapter 12 of Reinforced Concrete Design, Design Theory and Examples by T. J. MacGinley_3rd Ed-2006-ISBN: 0415307961_BS8110 & EC2
2- Design and Detailing of Counterfort Retaining Wall Lecture Note
which is part of Design and Drawing of RCC Structures - CV61 Lectures
3- Reliability Analysis of Counterfort Retaining Walls Paper (Electronic Journal of Structural Engineering 11(1) 2011)
4- Typical frictional resistances, Table L.1, Appendix L of Structural Foundation Designers' Manual by W. G. Curtin_2nd-2006-140513044X


Rev 1.0

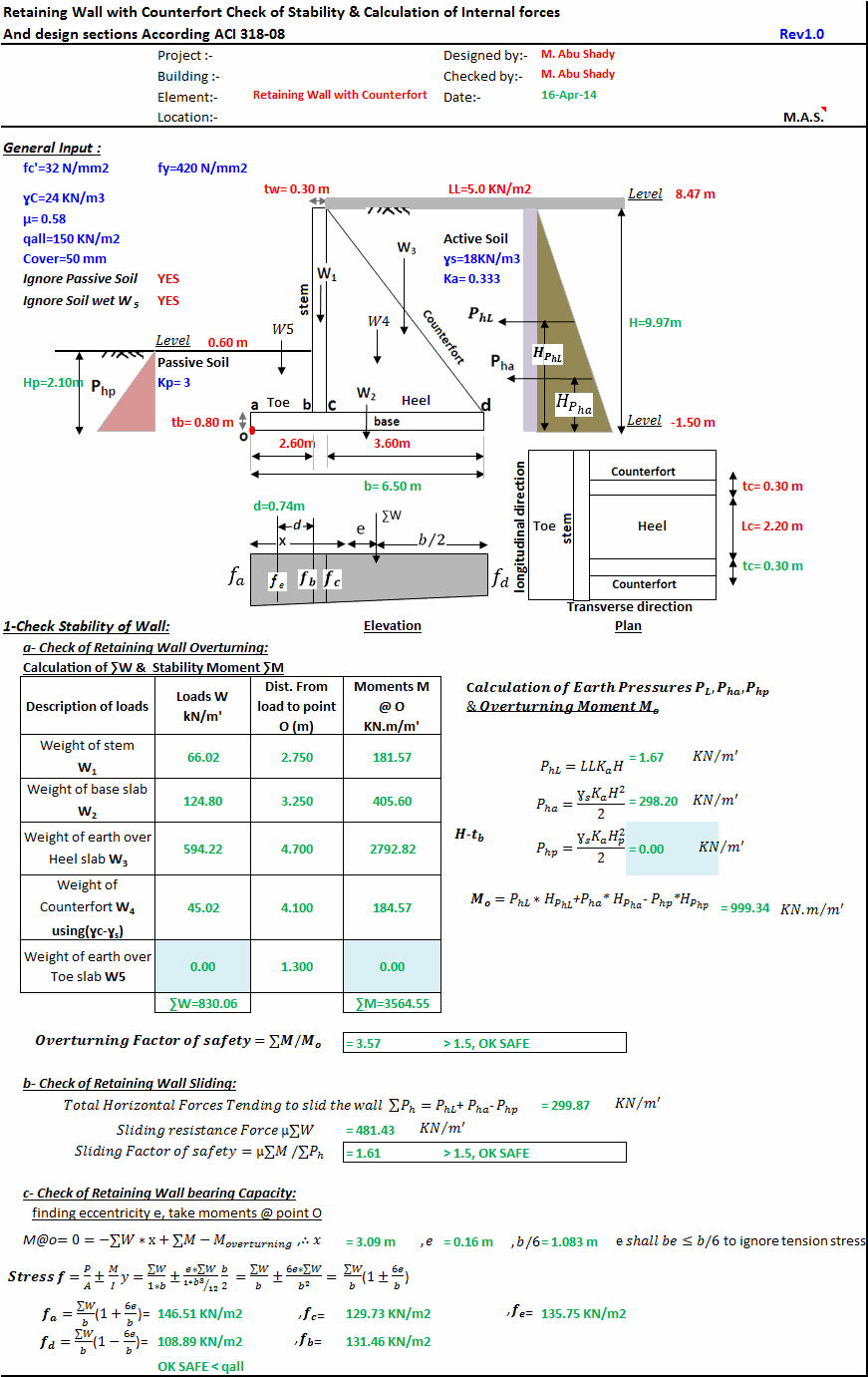

Design Toe, Heel and stem slab according ACI 318-08
Design Counterfort as a beam according ACI 318-08

Calculation Reference
Design Counterfort as a beam according ACI 318-08
Design Toe, Heel and stem slab according ACI 318-08
Reinforced Concrete Design, Design Theory and Examples by T. J. MacGinley
