Fatigue Damage in Steel Welds.xls

Rating:
5

Description


Calculate fatigue damage in a steel weld subjected to constant amplitude loading and variable amplitude loading. Based on methods described in the references below.

Calculation Reference
Gene Mathers from TWI has written an overview of fatigue.

Use with the efatigue weld classification finder

Guidance on how to select joint classifications can be found online in "Fatigue strength of welded structures" - Google Books Result
by Stephen John Maddox - 1991 - Technology & Engineering - 198 pages
Joint classification For the purposes of fatigue design each part of a welded ... Different details are combined in a single class on the basis that they ...

Fatigue of Welded Structures - Gurney
BS7608 Fatigue Design of Steel Structures

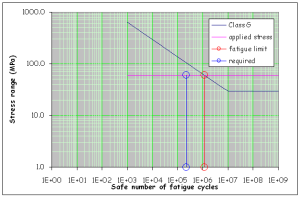

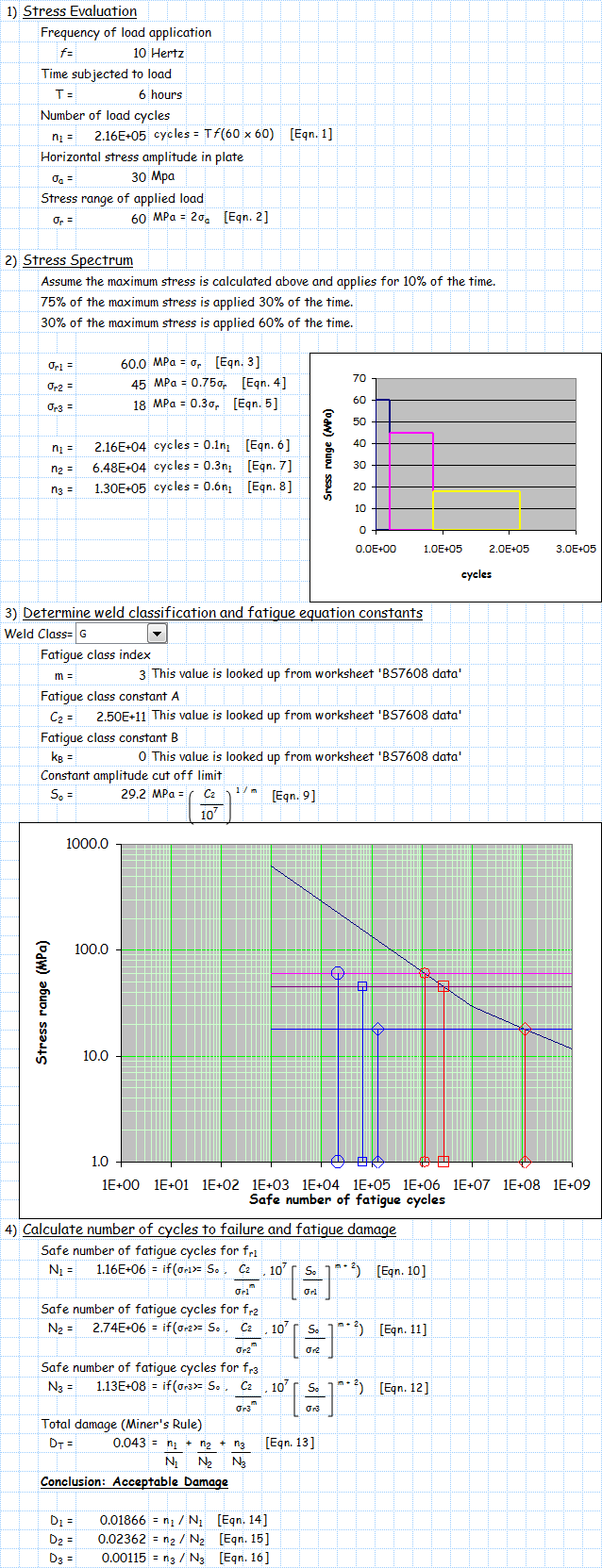

Calculation Preview

Uploaded
08 Jan 2008
Last Modified
22 May 2009
File Size:
151.50 Kb
Downloads:
274
File Version:
1.0
Rating:
5


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
JohnDoyle[Admin] 6 years ago
Yogie the calculation referred to on our YouTube Channel is not this one but can be found here Weld-SN-Fatigue.xls
yogie_mm03 6 years ago
Hi John, it seem this spread sheet is different with your explanation on the youtube channel, may I have the similar one, please.
JohnDoyle[Admin] 15 years ago
I have checked it out and it works fine Nidhee.
