2D FEA (1.5)
Description
2D finite element analysis (stiffness method) with more than 51 degrees of freedom.
How to use this spreadsheet:
1) Input total number of nodes for the structure in cell E3 on the "FEA.Input" tab.
2) Define the xy coordinates for each node. Columns F & G on the "FEA.Input" tab.
3) Identify the "free" and "fixed" degress of freedom for each node. Columns H, I, & J on the "FEA.Input" tab.
4) Input the material properties for each member. Columns T, U, V, & W on the "FEA.Input" tab.
5) Input node/joint loads into columns AJ, AK, & AL on the "FEA.Input" tab.
6) Input member distributed loads in Columns AO & AP on the "FEA.Input" tab. (uniform, trapezoidal or triangular) sign convention is same as in step 5
7) Input option for an intermediate point load columns AS, AT, & AU on the "FEA.Input" tab. sign convention is same as in step 5
8) run analysis by pressing the "FEA" control button on the "FEA.Input" tab.

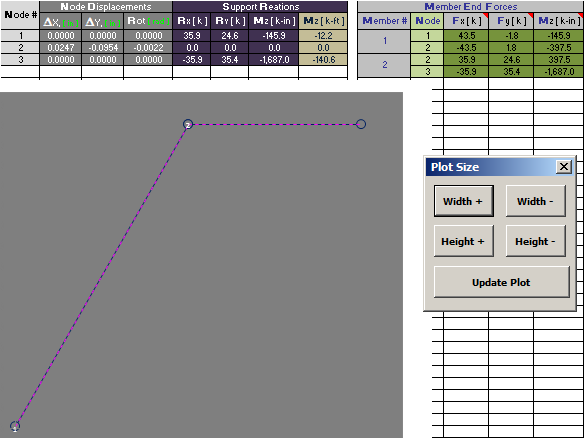

9) see results and deflection plot on the "Results" tab
Note:
The Gauss-Jordan method is used to over come the 51x51 "MINVERSE" limitation of excel .
Calculation Reference

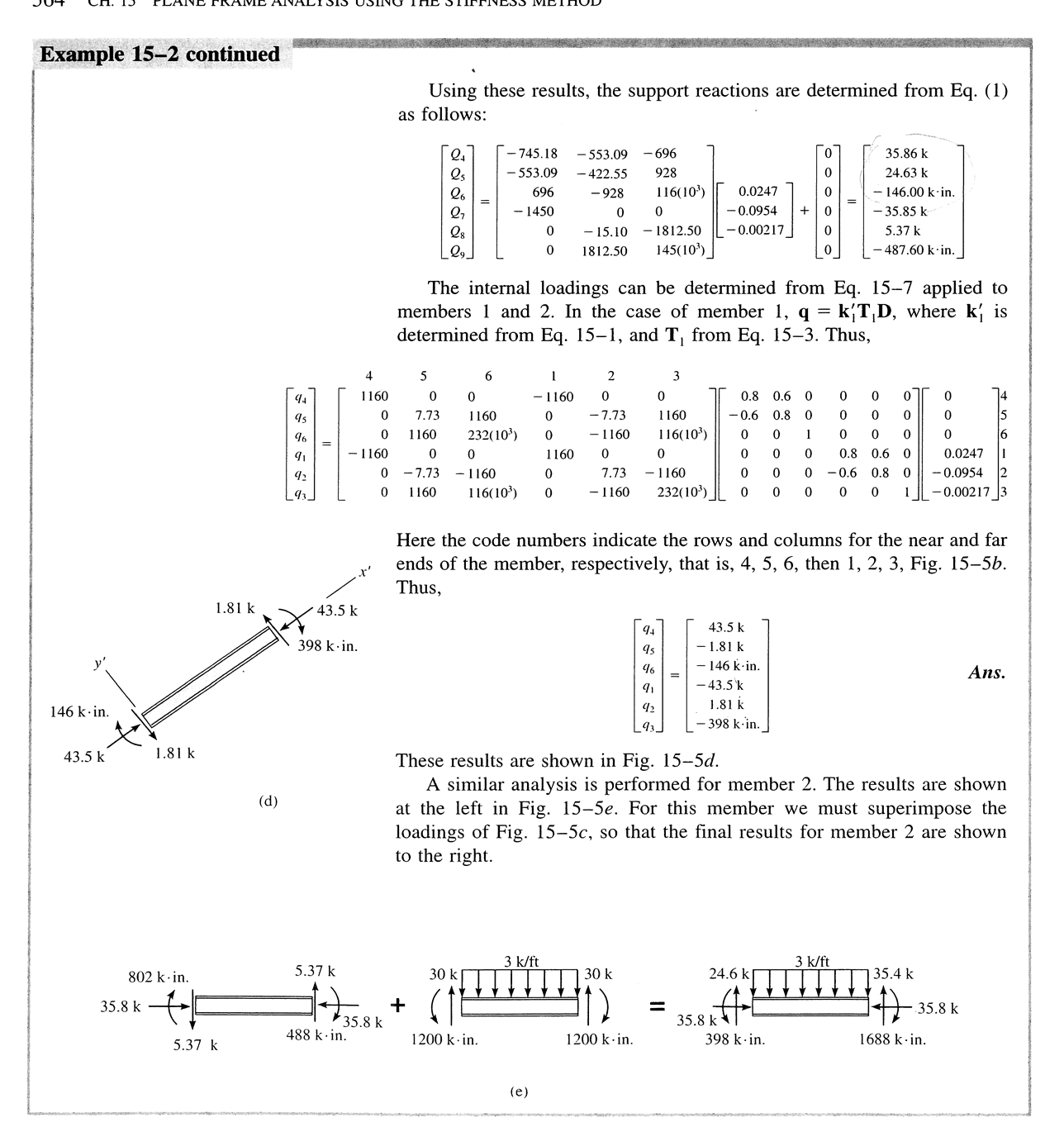

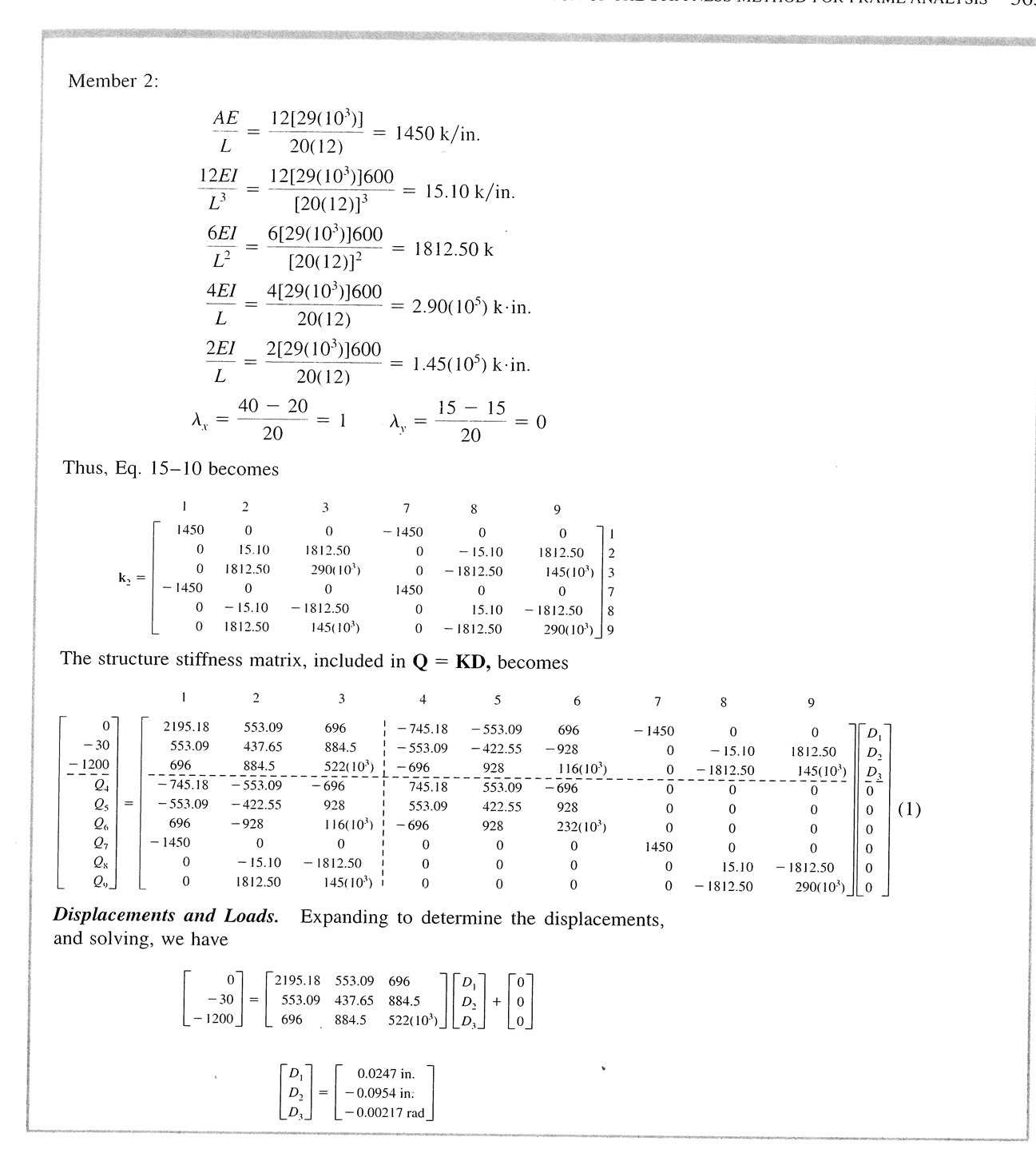

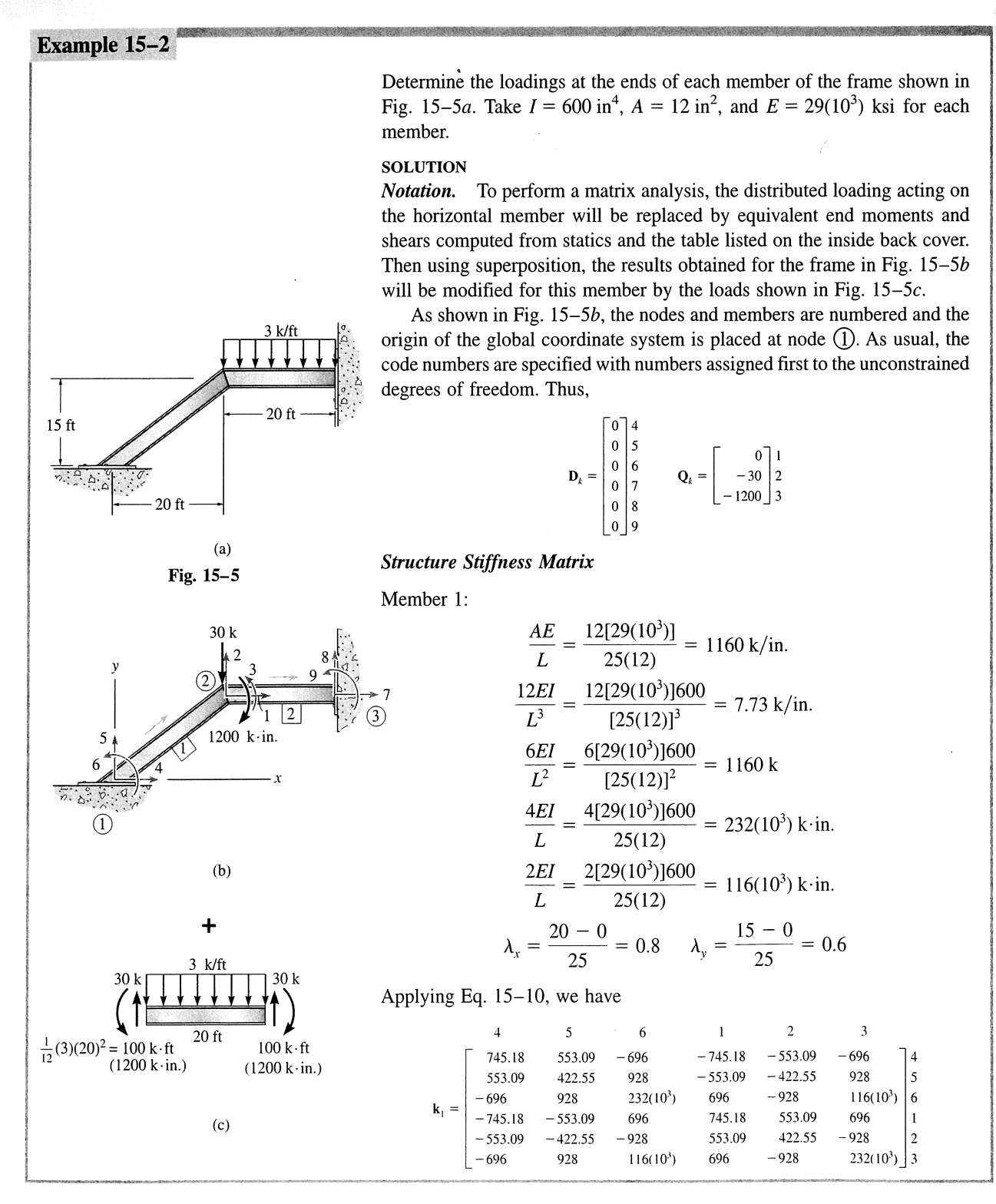

Beam Analysis
Structural Assessment
Finite Element Method
Calculation Preview
Uploaded
01 Oct 2014
Submitted By:
Last Modified
02 Oct 2014
File Size:
8,610.37 Kb
Downloads:
155
File Version:
1.5
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
×
![avatar JohnDoyle[Admin]](/media/com_osmembership/avatars/62_56e81868b9b33.png){kind=small}
JohnDoyle[Admin]
9 years ago
I particularly liked seeing the validation of the calculation method. I have awarded a free XLC Pro subscription for a year. Thank you Jason.
