ElasticFrames-Roark.xlsx

Rating:
3

Description

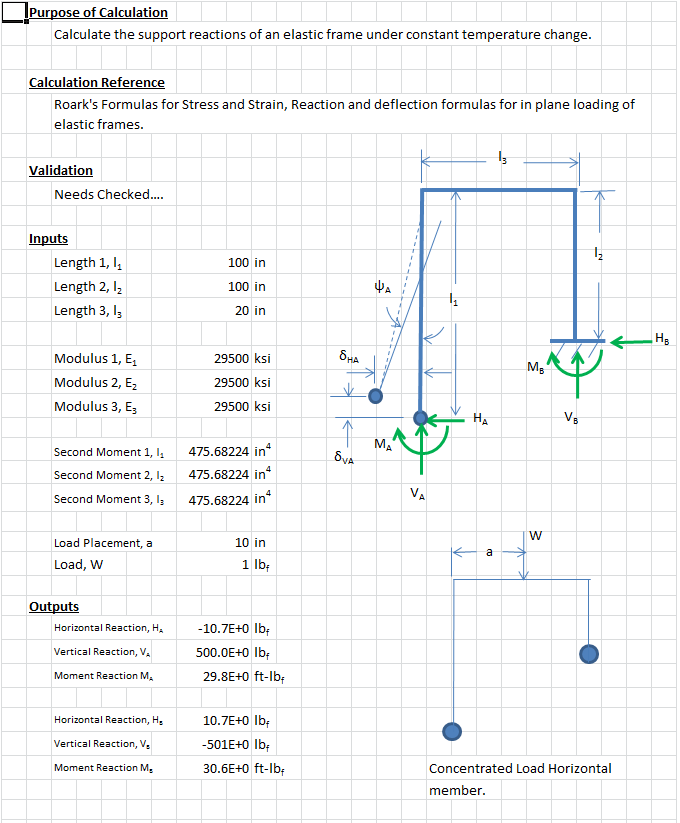

Calculate the support reactions of an elastic frame under constant temperature change.
Calculation Reference - "Roark's Formulas for Stress and Strain". Reaction and deflection formulas for in plane loading of elastic frames. Tables 8.2 5q and 1a.

Calculation Reference
Roark's Formulas for Stress and Strain
Structural Design
Steel Designers Manual

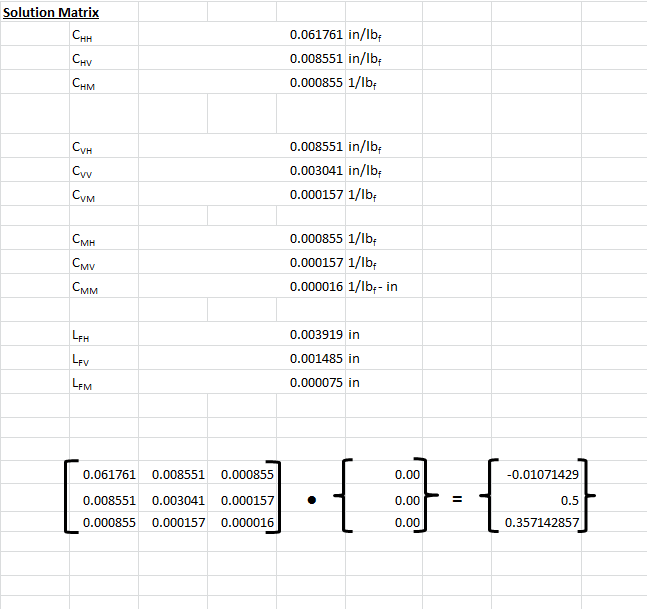

Calculation Preview

Uploaded
28 Feb 2011
Last Modified
28 Feb 2011
File Size:
29.59 Kb
Downloads:
193
File Version:
1.0
File Author:
Jason Miller
Rating:
3


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
cpburgess 4 years ago
should have SI units
