STEEL_CONNECTIONS.xlsx

Rating:
27

Description

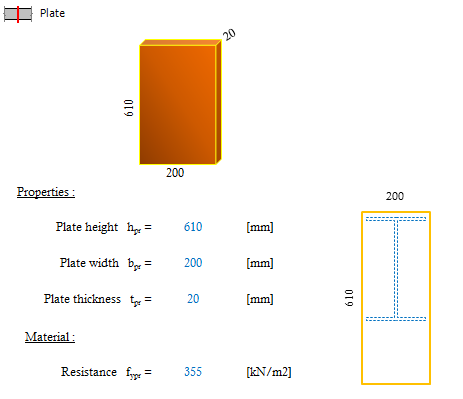

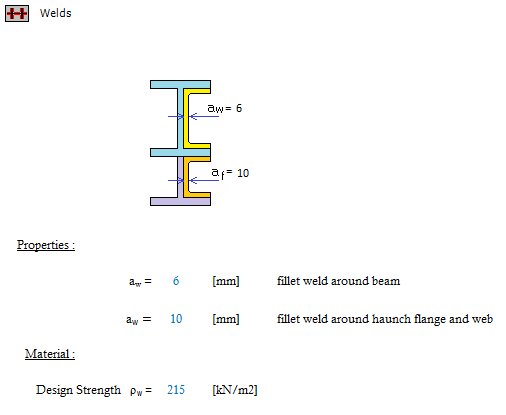

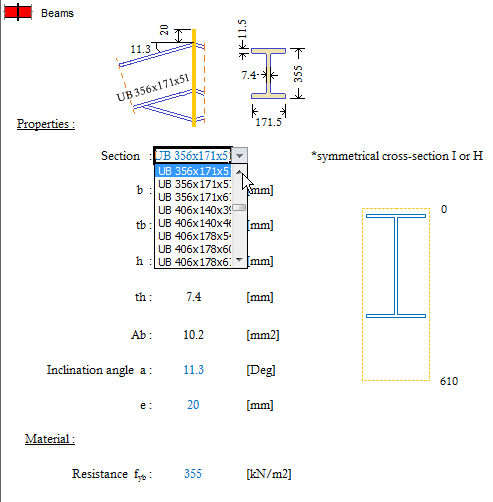

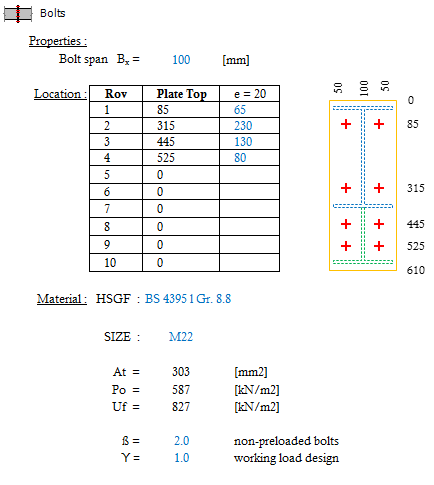

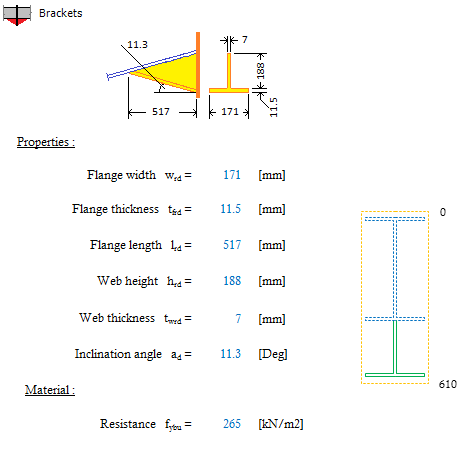

ALL CONNECTIONS ELASTIC/PLASTIC DESIGN AND ANALYSIS.

A rational basis for connection design; basic welding technology; bolts and bolting, rivets and riveting; static behaviour and design of welds; static behaviour and design of bolts and bolted connections; fatigue of connections; other components in the connection; analysis; practical considerations for economic design; beam and column splices; column bases; beam to column connections; beam to beam connections; portal frame connections; other industrial building connections; truss connections.

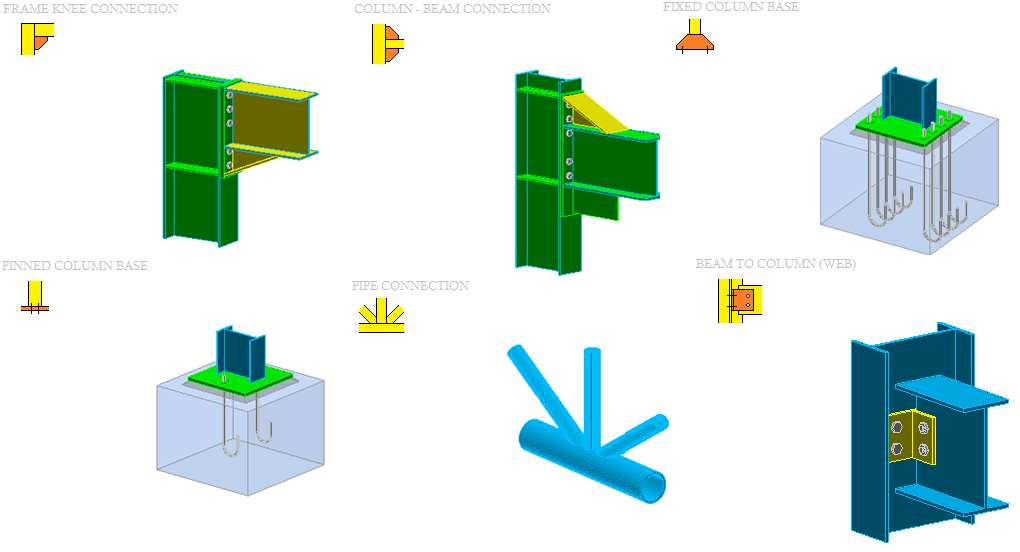

Curently includes:
APEX CONNECTION
Future Developments to consider
FRAME KNEE CONNECTION
COLUMN - BEAM CONNECTION
FIXED COLUMN BASE
PINNED COLUMN BASE
PIPE CONNECTION
BEAM TO COLUMN (WEB)
BEAM TO BEAM (WEB)
BEAM TO COLUMN (FLANGE)
BEAM TO BEAM (FLANGE)
GUSSET PLATE : SINGLE BAR
GUSSET PLATE : TRUSS CHORD NODE
GUSSET PLATE : BRACING

Calculation Reference
Structural Steelwork Connections Graham W. Owens
Structural Steelwork
Steel Designers Manual

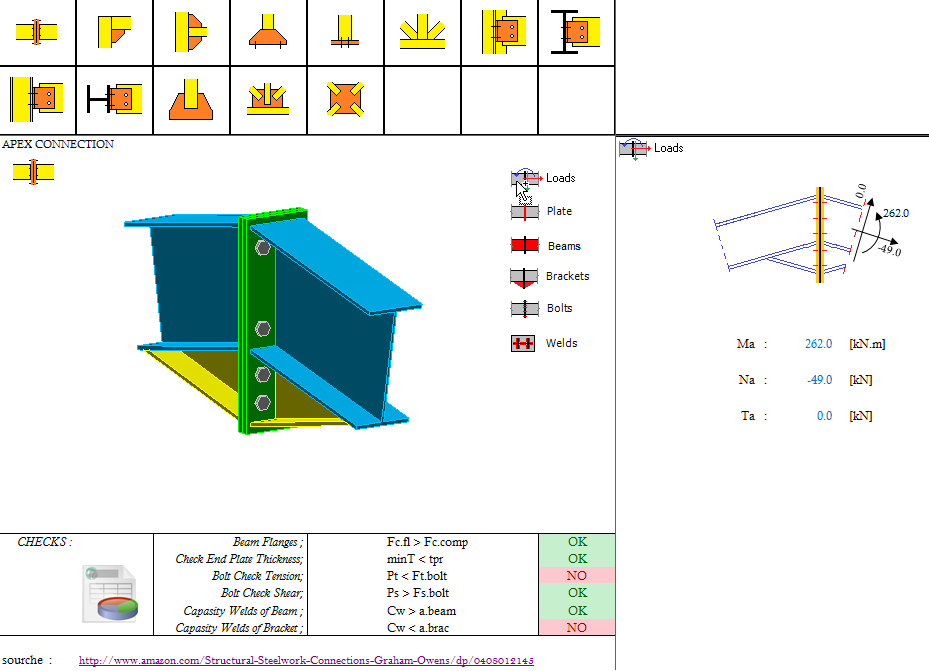

Calculation Preview

Submitted On:
07 Jun 2012
File Size:
484.91 Kb
Downloads:
780
File Version:
1.2
File Author:
Turan Babacan
