ANSI Cylinder Buckling.xls
Description
Uses formulas extracted from American Natinal Standard:
Hydraulic fluid power - Cylinders - Method for determining the buckling load, ANSI/(NFPA)T3.6.37-1991.

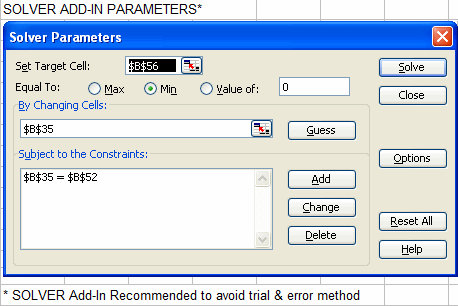

The solution requires a numerical solver to avoid using a trial and error method. SOLVER Add-in was packaged with Excel 2003, so this was used in the example to find the correct value for the Critical Load. It is up to the designer to apply an appropriate factor of safety as all cylinders have external applied loads beyond the hydraulic system pressure.
Calculation Reference
Buckling
Hydraulic Cylinders

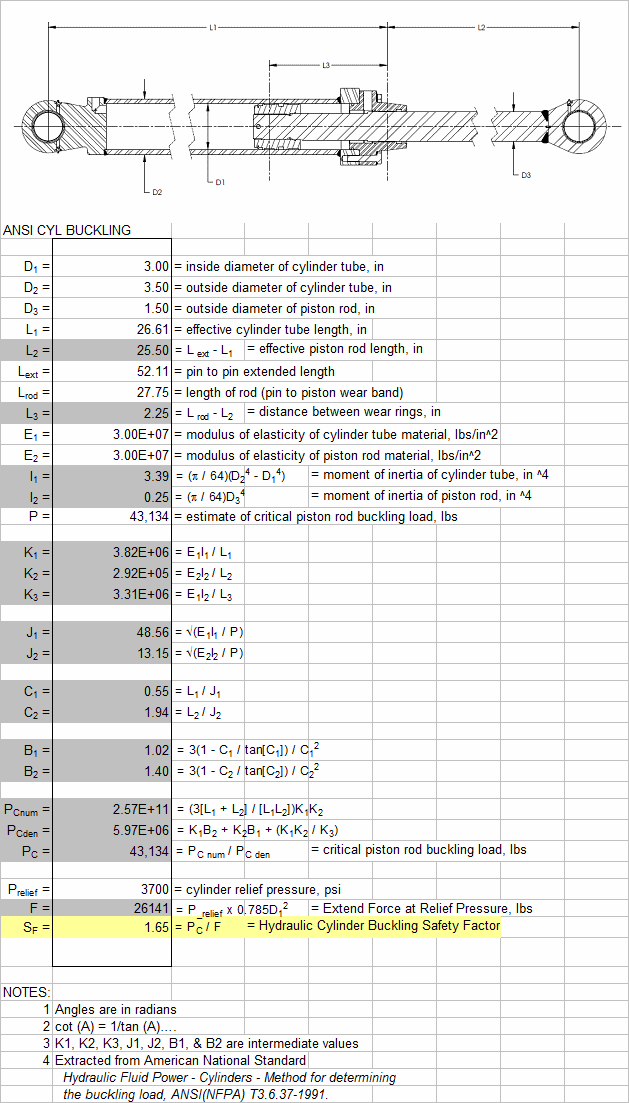

Calculation Preview
Uploaded
20 Oct 2009
Submitted By:
Last Modified
20 Oct 2009
File Size:
156.00 Kb
Downloads:
191
File Version:
1.0
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 2
×
betox666
3 years ago
great program
jqluong
13 years ago
I think your B1 & B2 is incorrect based on given formula
