Torsion in unsymmetrical rod.xls

Rating:
2

Description


Purpose of calculation: If the steel tube is twisted by couples at either ends, what will be the maximum shearing stress, the overall twist, and the radius of a circular section of the same torsional stiffness.
Calculation Reference: First principles.
Calculation Validation: Validated against worked example in lecture notes.

Calculation Reference
Torsion
Structures

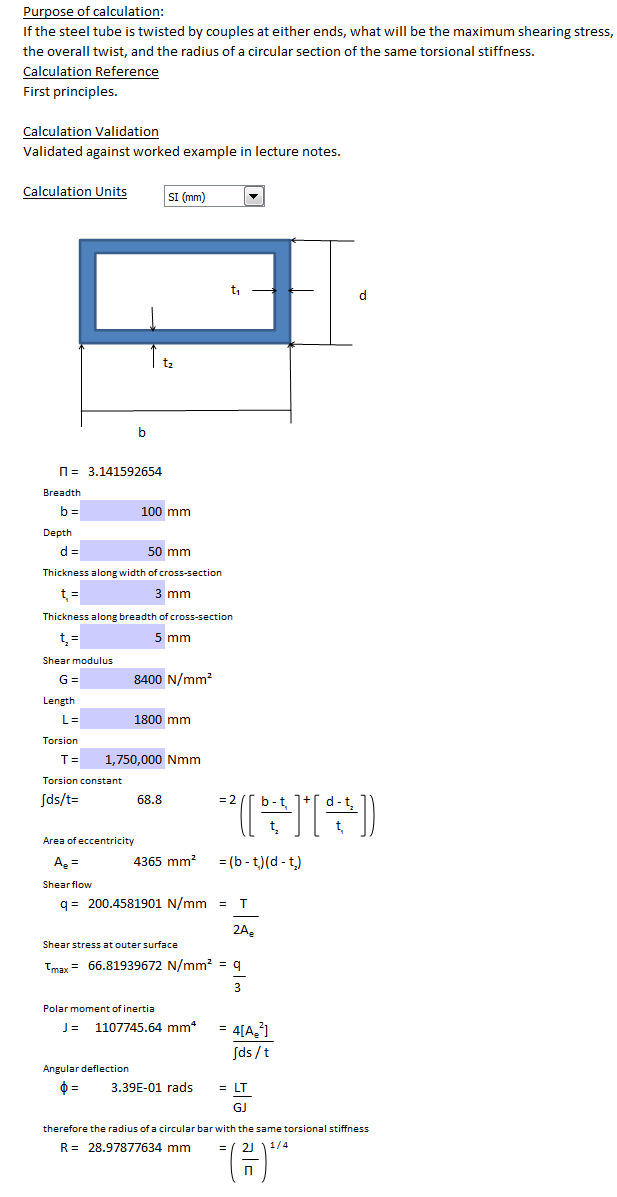

Calculation Preview

Submitted On:
13 Jul 2010
File Size:
78.50 Kb
Downloads:
57
File Version:
1.0
Rating:
2


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Be the first to comment! Please sign in or register.
