Central Elliptical hole in a member of rectangular cross section - axial tension.xls
Description
Purpose of calculation
To calculate stress concentration factors for elastic stress
Central elliptical hole in a member of a rectangular cross section under tension
Calculation Reference
Roark's Formulas for Stress and Strain (7th Edition)
Table 17.1 Case 10a
Calculation Validation
Cell formulas checked reference using XLC Add-in for Excel
Calculation Reference
Roark's Formulas for Stress and Strain

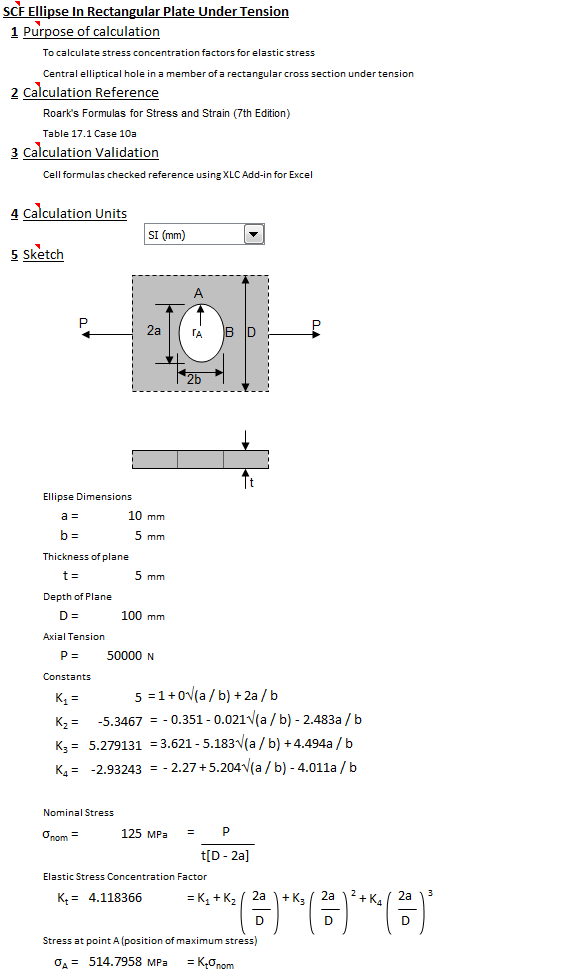

Calculation Preview
Uploaded
06 May 2011
Submitted By:
Last Modified
06 May 2011
File Size:
64.50 Kb
Downloads:
163
File Version:
1.1
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
×
![avatar JohnDoyle[Admin]](/media/com_osmembership/avatars/62_56e81868b9b33.png){kind=small}
JohnDoyle[Admin]
12 years ago
Changed template to XLC template to allow easy change of system of units from metric to US.
