PrincipalStressesIn3D.xls

Rating:
16

Description


This spreadsheet calcuates the principal stresses in the trixial state given 6 stress components of 3 normal and 3 shear stress components. A simple assessment is made against four stress criteria dependent upon the yield stress in tension and compression.

Calculation Reference
Prinipal Stress
Stress Analysis
Failure Criteria of Materials

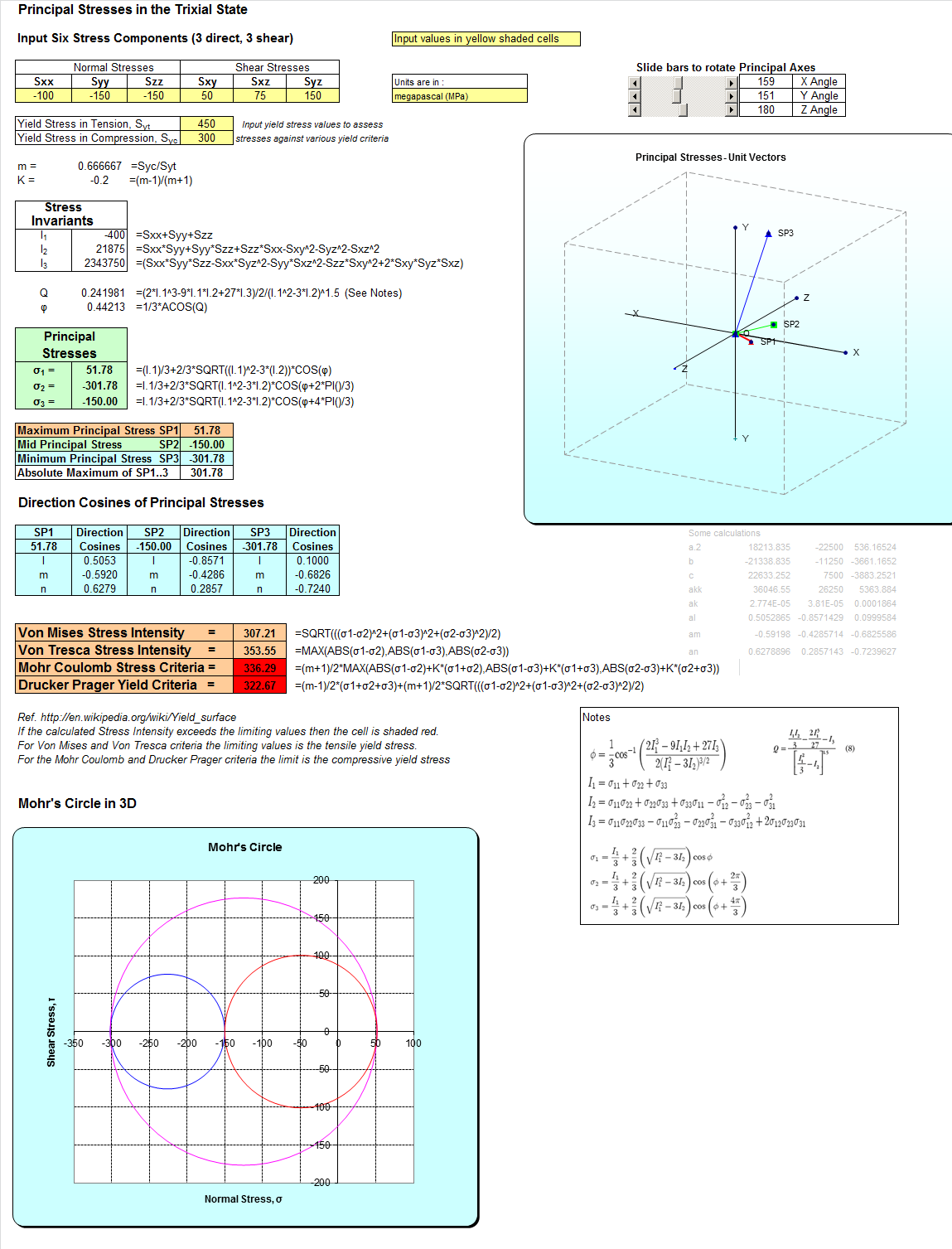

Calculation Preview

Submitted On:
16 Jul 2014
File Size:
140.00 Kb
Downloads:
96
File Version:
1.0
File Author:
David Backhouse
Rating:
16


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
DaveBackhouse 8 years ago
'Mohr's circle in 3D' is a little misleading as a heading for the graph and it would be better as 'Mohr's circle for a 3D state of stress'. See http://en.wikipedia.org/wiki/Mohr%27s_circle for a definition of it.
The 3D chart is just the principal stresses drawn at the direction cosine angles but with the maximum value as unity to show relative values in the calculated direction in which they act. Right clicking on the chart should show where the source data comes from.
sonicboomman2008 8 years ago
how did you graph that in 3D?
JohnDoyle[Admin] 8 years ago
Another Masterpiece! I have extended your XLC Pro subscription by 6 months by way of thanks.
