NDS Table A.4-2A Nominal Shear Capacity Rev 0 wns 030210.xls



This sheet calculates the ASD or LRFD share capacities for blocked plywood diaphragms per NDS/SDPWS.

1. Nominal unit shear capacities shall be adjusted in accordance with 4.2.3 to determine ASD allowable unit shear capacity and LRFD factored unit resistance. For general construction requirements see 4.2.6. For specific requirements, see for wood structural panel diaphragms.
2. For framing grades other than Douglas Fir-Larch or Southern Pine, reduced nominal unit shear capacities shall be determined by multiplying the tabulated nominal unit shear capacity by the Specific Gravity Adjustment Factor= [1-(0.5 - G)], where G = Specific Gravity of the framing lumber from the NDS. The Specific Gravity Adjustment Factor shall not be greater than 1.
3. Apparent shear stiffness values, G.. are based on nail slip in framing with moisture content less than or equal to 19% at time of fabrication and panel stiffness values for diaphragms constructed with OSB panels. When plywood panels are used, G. values shall be determined in accordance with Appendix A.
4. Where moisture content of the framing is greater than 19% at time of fabrication, G. values shall be multiplied by 0.5.

Calculation Reference
ASD LRFD Wood Design

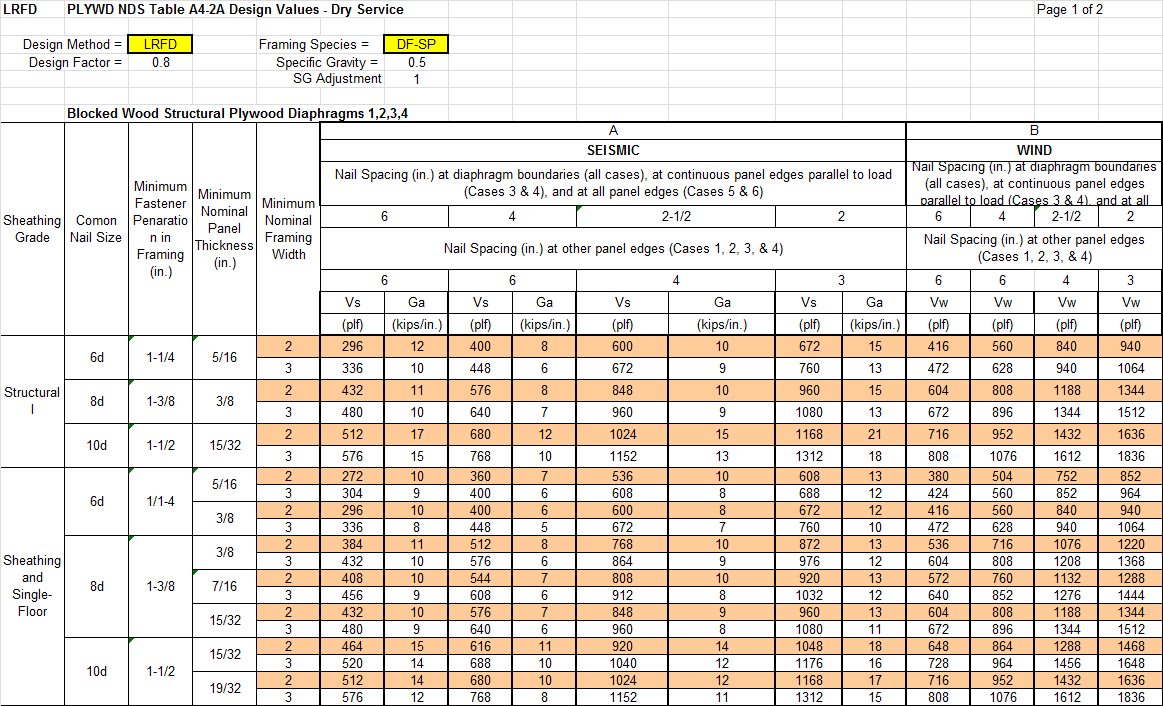

Calculation Preview

03 Mar 2010
Last Modified
03 Mar 2010
File Size:
186.50 Kb
File Version:
File Author:
Bill Scott
