Pressure discharge and power calcs of a jet.xls

Rating:
1

Description

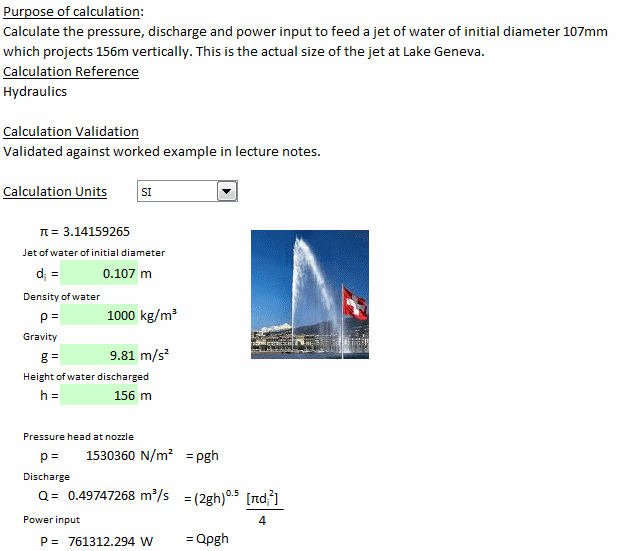

Purpose of calculation: Calculate the pressure, discharge and power input to feed a jet of water of initial diameter 107mm which projects 156m vertically. This is the actual size of the jet at Lake Geneva.
Calculation Reference: Hydraulics
Calculation Validation: Validated against worked example in lecture notes.

Calculation Reference
Hydraulics
Fluid Mechanics

The pressure discharge and power calculations of a jet involve determining the pressure and velocity of a fluid jet as it is discharged from a nozzle or orifice. These calculations are important in the design and operation of fluid systems, such as pumps, turbines, and hydraulic machines.

The pressure discharge of a jet is calculated using the Bernoulli equation, which relates the pressure, velocity, and height of a fluid in a system. The equation is given by:

P1 + 1/2ρV1^2 + ρgh1 = P2 + 1/2ρV2^2 + ρgh2

where P1 and P2 are the pressures at two different points in the system, ρ is the density of the fluid, V1 and V2 are the velocities of the fluid at the two points, g is the acceleration due to gravity, and h1 and h2 are the heights of the fluid at the two points.

The power of the jet is calculated using the equation:

P = QρV

where P is the power of the jet, Q is the flow rate of the fluid, ρ is the density of the fluid, and V is the velocity of the fluid.

The pressure and velocity of a jet can be calculated using these equations for different nozzle shapes and flow rates. For example, for a circular nozzle, the discharge coefficient is used to account for the effect of the shape of the nozzle on the pressure and velocity of the jet.

Overall, the pressure discharge and power calculations of a jet are important considerations in the design and operation of fluid systems. These calculations ensure that the fluid is flowing at the required pressure, velocity, and power, and that the system is operating efficiently and safely.
