Composite Panel Calculations.xlsx

Rating:
18

Description



Purpose of calculation:
Simply Supported Plate - width (b) greater than 1/3 of length (a). Because plate theory is more involved than beam theory, some 'charts' have been provided to give multipliers/coefficients (k1, k2, k3a & k3b) for use with plates simply supported on all four sides.

Calculation Reference
HexWeb SANDWICH DESIGN MANUAL

Calculation Validation

Reproduced result published in manual.
Calculation Procedure

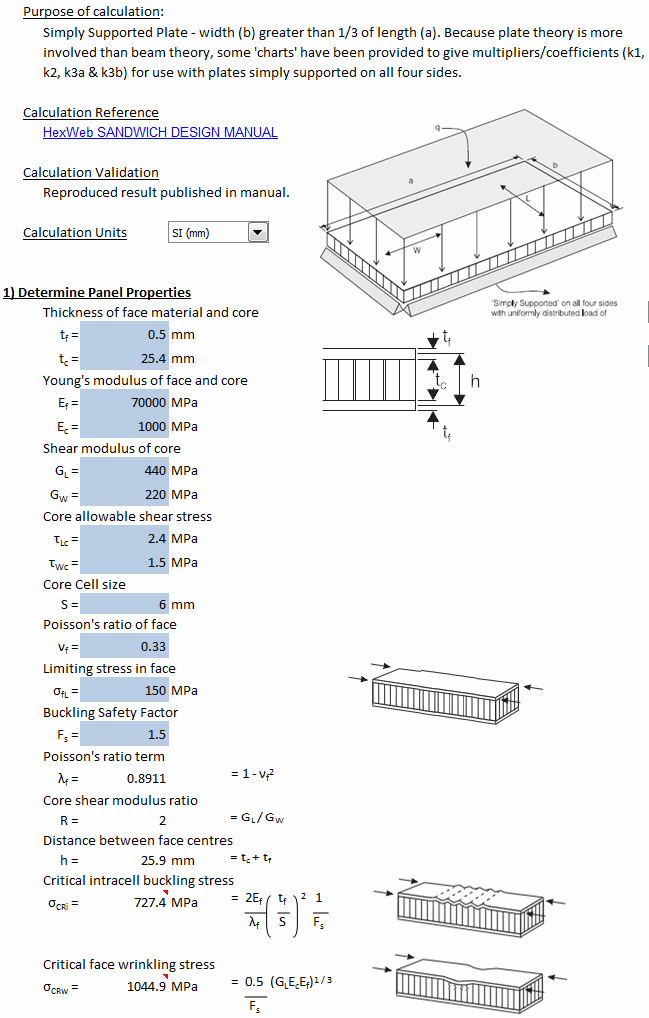

1) Determine Panel Properties

  • Thickness of face material and core
  • Young's modulus of face and core
  • Shear modulus of core
  • Core allowable shear stress
  • Core Cell size
  • Poisson's ratio of face
  • Limiting stress in face
  • Buckling Safety Factor
  • Poisson's ratio term
  • Core shear modulus ratio
  • Distance between face centres
  • Critical intracell buckling stress
  • Critical face wrinkling stress

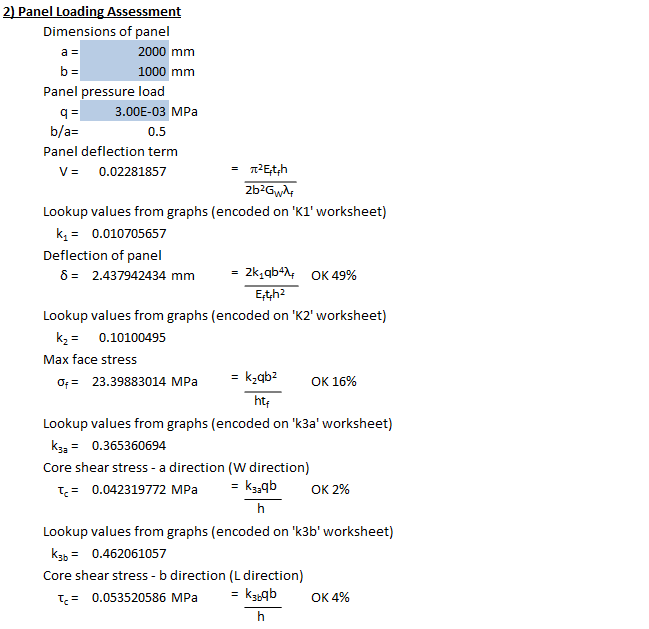

2) Panel Loading Assessment
  • Dimensions of panel
  • Panel pressure load
  • Panel deflection term

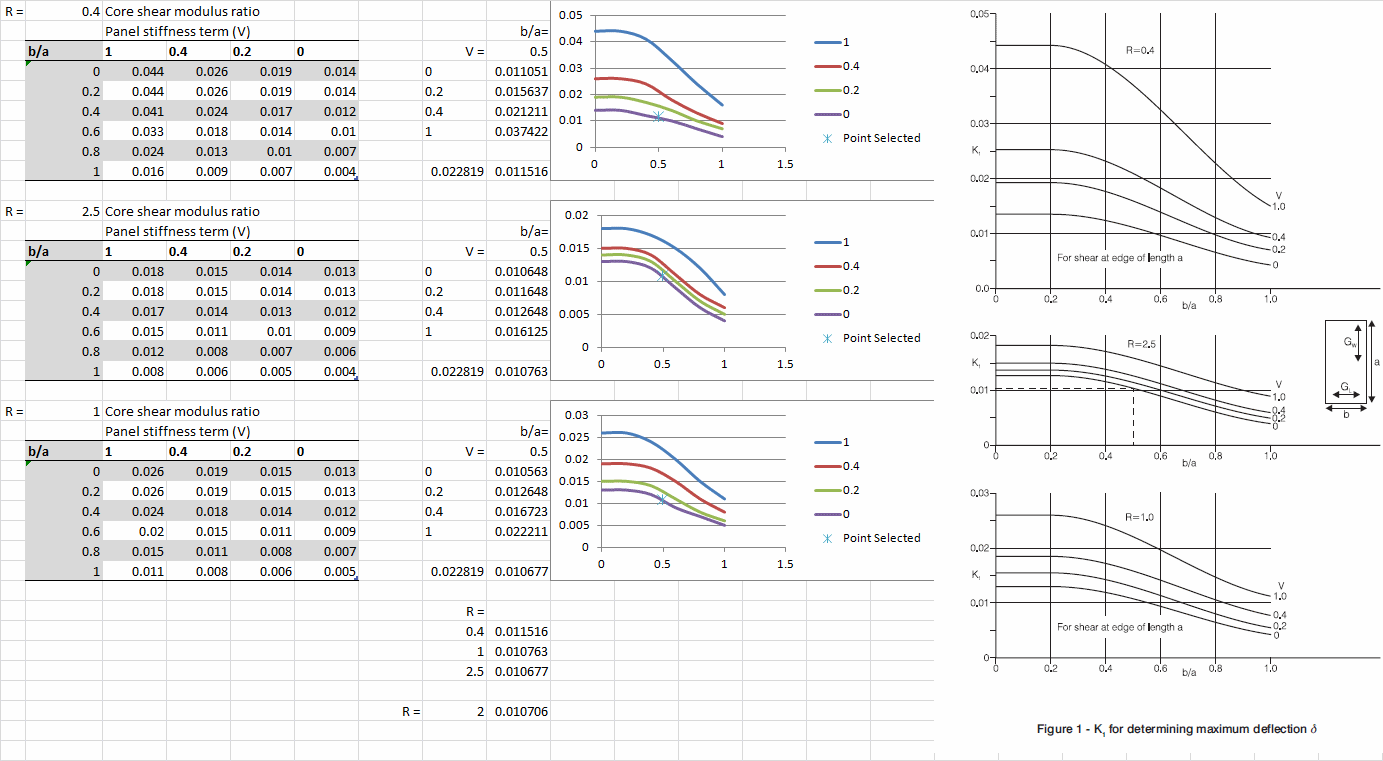

  • Lookup values from graphs (encoded on 'K1' worksheet)
  • Deflection of panel
  • Lookup values from graphs (encoded on 'K2' worksheet)
  • Max face stress
  • Lookup values from graphs (encoded on 'k3a' worksheet)
  • Core shear stress - a direction (W direction)
  • Lookup values from graphs (encoded on 'k3b' worksheet)
  • Core shear stress - b direction (L direction)

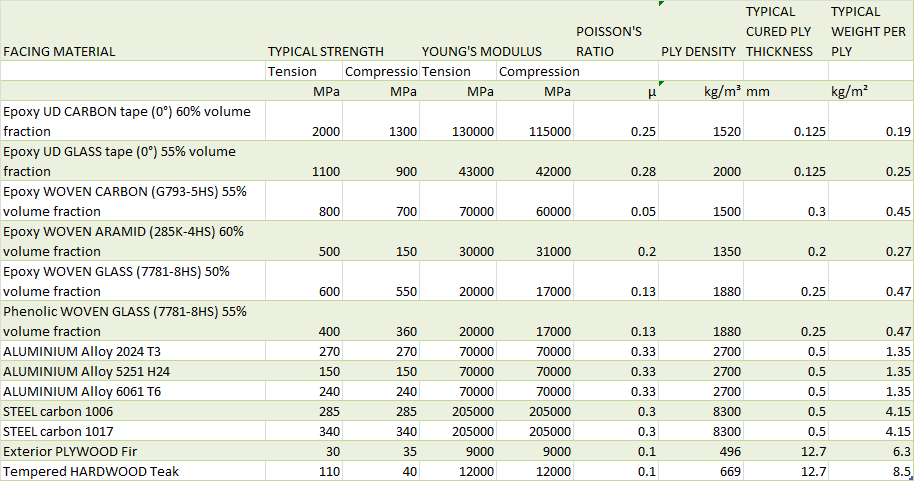

SELECT FACING MATERIAL FROM LOOKUP TABLE
  • Epoxy UD CARBON tape (0°) 60% volume fraction
  • Epoxy UD GLASS tape (0°) 55% volume fraction
  • Epoxy WOVEN CARBON (G793-5HS) 55% volume fraction
  • Epoxy WOVEN ARAMID (285K-4HS) 60% volume fraction
  • Epoxy WOVEN GLASS (7781-8HS) 50% volume fraction
  • Phenolic WOVEN GLASS (7781-8HS) 55% volume fraction
  • ALUMINIUM Alloy 2024 T3
  • ALUMINIUM Alloy 5251 H24
  • ALUMINIUM Alloy 6061 T6
  • STEEL carbon 1006
  • STEEL carbon 1017
  • Exterior PLYWOOD Fir
  • Tempered HARDWOOD Teak

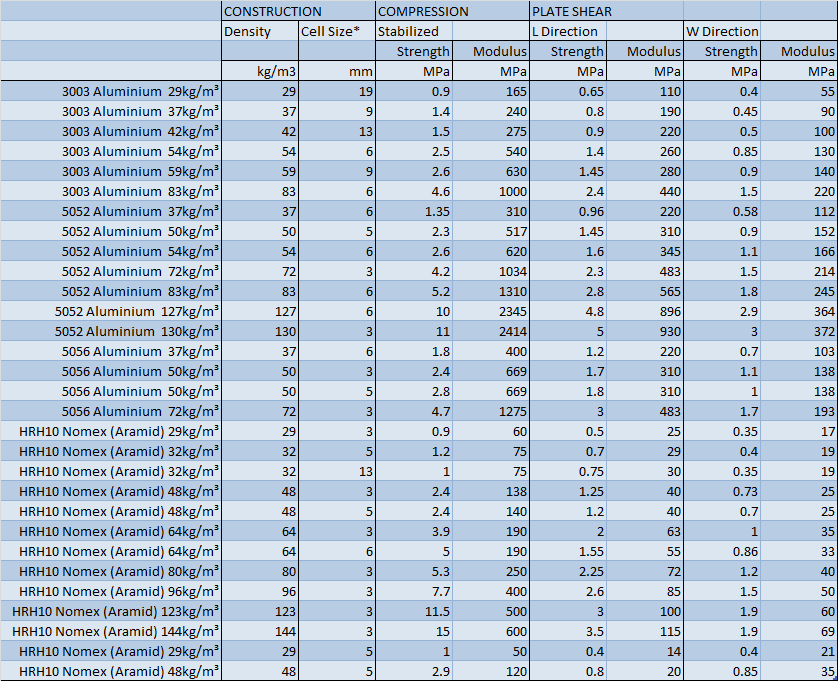

SELECT CORE MATERIAL FROM LOOKUP TABLE
  • 3003 Aluminium  29kg/m³
  • 3003 Aluminium  37kg/m³
  • 3003 Aluminium  42kg/m³
  • 3003 Aluminium  54kg/m³
  • 3003 Aluminium  59kg/m³
  • 3003 Aluminium  83kg/m³
  • 5052 Aluminium  37kg/m³
  • 5052 Aluminium  50kg/m³
  • 5052 Aluminium  54kg/m³
  • 5052 Aluminium  72kg/m³
  • 5052 Aluminium  83kg/m³
  • 5052 Aluminium  127kg/m³
  • 5052 Aluminium  130kg/m³
  • 5056 Aluminium  37kg/m³
  • 5056 Aluminium  50kg/m³
  • 5056 Aluminium  50kg/m³
  • 5056 Aluminium  72kg/m³
  • HRH10 Nomex (Aramid) 29kg/m³
  • HRH10 Nomex (Aramid) 32kg/m³
  • HRH10 Nomex (Aramid) 32kg/m³
  • HRH10 Nomex (Aramid) 48kg/m³
  • HRH10 Nomex (Aramid) 48kg/m³
  • HRH10 Nomex (Aramid) 64kg/m³
  • HRH10 Nomex (Aramid) 64kg/m³
  • HRH10 Nomex (Aramid) 80kg/m³
  • HRH10 Nomex (Aramid) 96kg/m³
  • HRH10 Nomex (Aramid) 123kg/m³
  • HRH10 Nomex (Aramid) 144kg/m³
  • HRH10 Nomex (Aramid) 29kg/m³
  • HRH10 Nomex (Aramid) 48kg/m³

Calculation Reference
Composites Design
Composite Materials
Composite structures

Calculation Preview

Submitted On:
19 Feb 2010
File Size:
189.45 Kb
Downloads:
184
File Version:
1.1
File Author:
John Doyle
Rating:
18


Downloads are available to members with an active subscription to the site.
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
JohnDoyle[Admin] 8 years ago
As the description says XLC must be installed for this calculation to work. XLC works with all versions of Excel including Excel 2013. I have downloaded this file and it loaded without error when XLC is installed. To check that XLC is installed and working correctly perhaps you could type the following formula into a cell"=OVD(1)/UND(2)" If you get a #NAME error then XLC is not installed.
The error you describe is #VALUE which does not suggest that the problem is with XLC. Follow the link to try to diagnose your problem.
RAMULUS 8 years ago
Hi,
I have some issues with the mutipliers/coefficients.They appear as #Value at I9 and I19,etc... . I have already installed the XLC ribbon and the XLC toolbar. Do you have any idea of the problem?
Thank you
P.S. I have the 2013 office edition
dreamctr 8 years ago
Hi,
I'm interested in buying 'Composite Panel Calculations.xlsx'. I wonder if I can put in my own material properties and select the pre-loaded material properties as well.
Let me please know your thoughts.
