AISC Properties Viewer.xls
Description

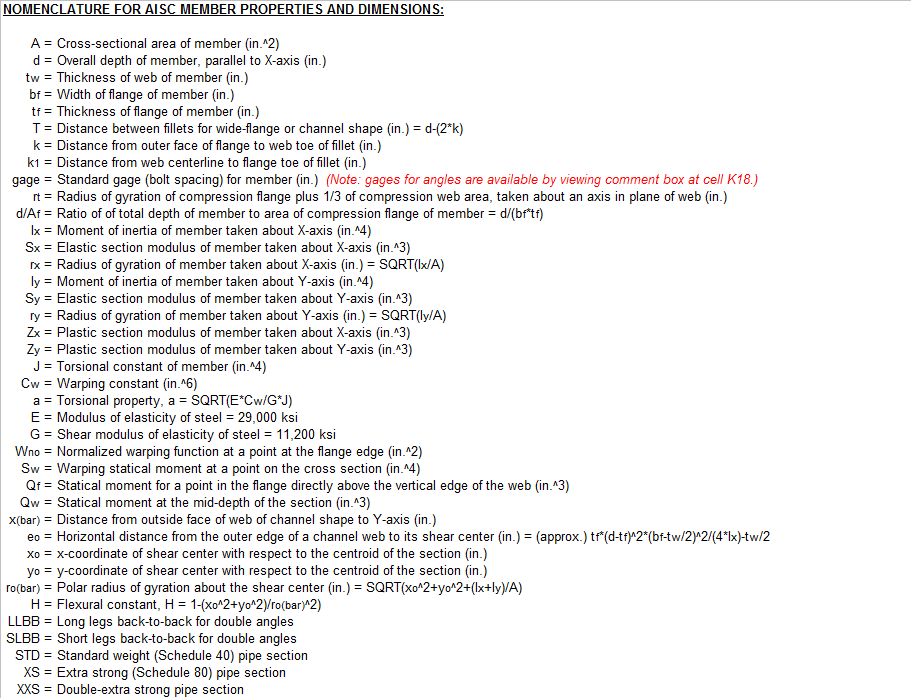

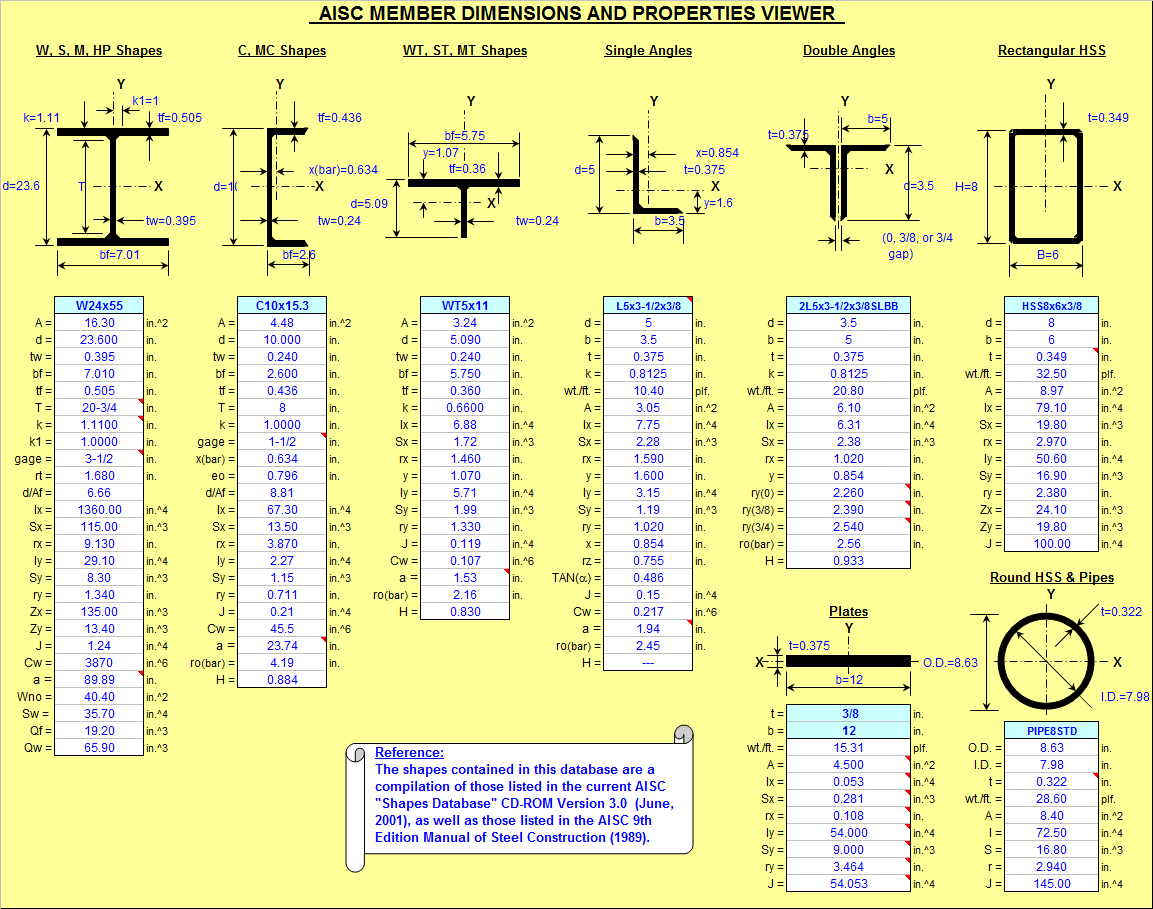

The shapes contained in this database are a compilation of those listed in the current AISC "Shapes Database" CD-ROM Version 3.0 (June, 2001), as well as those listed in the AISC 9th Edition Manual of Steel Construction (1989). This spreadsheet allows one to view and compare properties for various shapes at one time. If you scroll the display to the right you will see the tabulated values of the section properties for each of the various shapes. At the request of some folks, I also added the ability to calculate and display the properties for a plate, given its user input thickness and width. The spreadsheet is protected, but not with a password.
Calculation Reference
AISC
Calculation Preview
Uploaded
25 Feb 2012
Submitted By:
Last Modified
25 Feb 2012
File Size:
485.50 Kb
Downloads:
397
File Version:
1.3
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
The majority of the errata pertained to AISC Table 1-8 for WT Shapes, where the parameter d/tw was substituted in place of h/tw and many of the values for Qs were slightly changed.
The version of this workbook is now 1.3.
By the way, I've also attached an updated copy of the workbook containing the basic properties data worksheets.
