CurvedBeams.xls

Rating:
2

Description


Calculate hyperbolic bending stress distribution in a curved beam. The beam theory can also be applied to curved beams allowing the stress to be determined for shapes including crane hooks and rings. When the dimensions of the cross section are small compared to the radius of curvature of the longitudonal axis the bending theory can be relatively accurate. When this is not the case even using the modified Bernoulli-Euler only provides approximate solutions.

Calculation Reference
Machine Design - Schaum's

https://roymech.org/Useful_Tables/Beams/Curved_beams.html

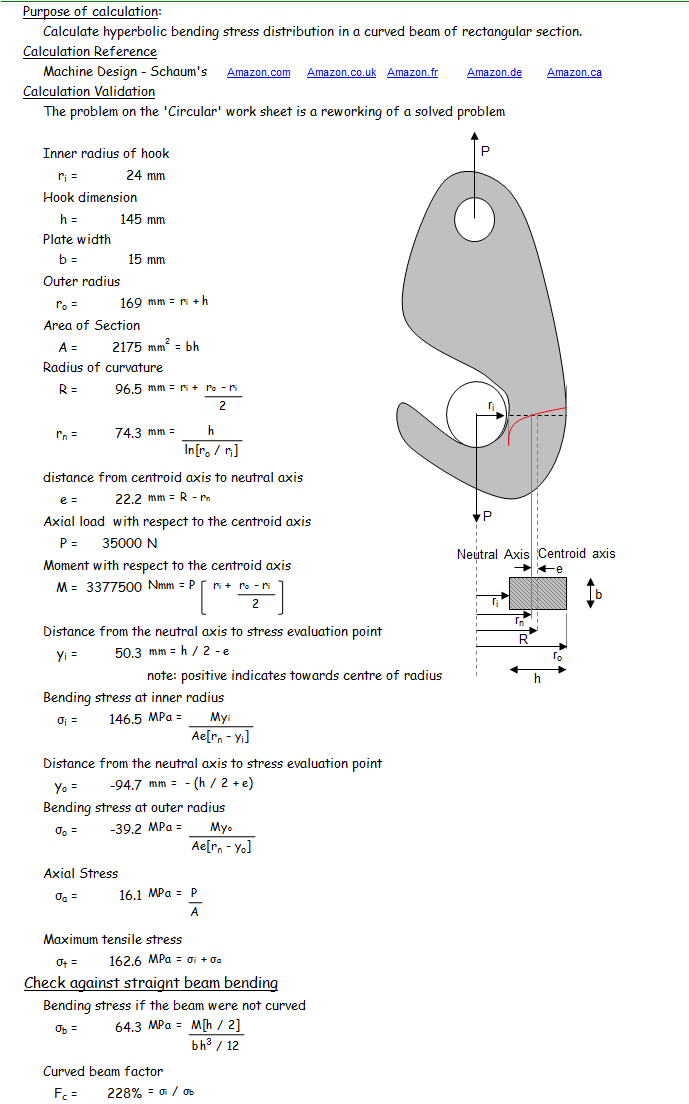

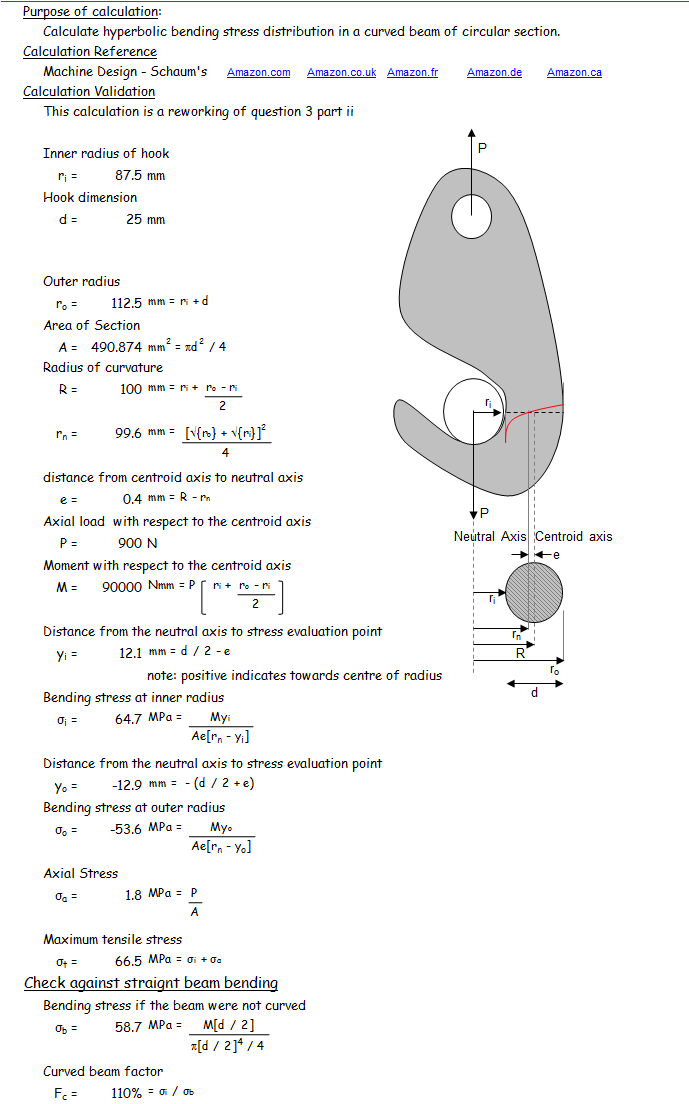

Calculation Preview

Submitted On:
17 Jun 2015
File Size:
144.00 Kb
Downloads:
592
File Version:
1.1
File Author:
John Doyle
Rating:
2


Downloads are available to members with an active subscription to the site.
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Be the first to comment! Please sign in or register.
