Program Description:
"TORSION9" is a spreadsheet program written in MS-Excel for the purpose of simplified analysis and code checking of steel beams subjected to torsional loading.  Specifically, six (6) different beam and loading configurations can be analyzed / code checked per the AISC 9th Edition Allowable Stress Design (ASD) Manual. Both actual and allowable stresses are computed, with the final result being a computed "stress ratio" of actual stress/allowable stress.  Finally, the total angle of twist resulting from the torsional loading is determined.
This program is a workbook consisting of seven (7) worksheets, described as follows:

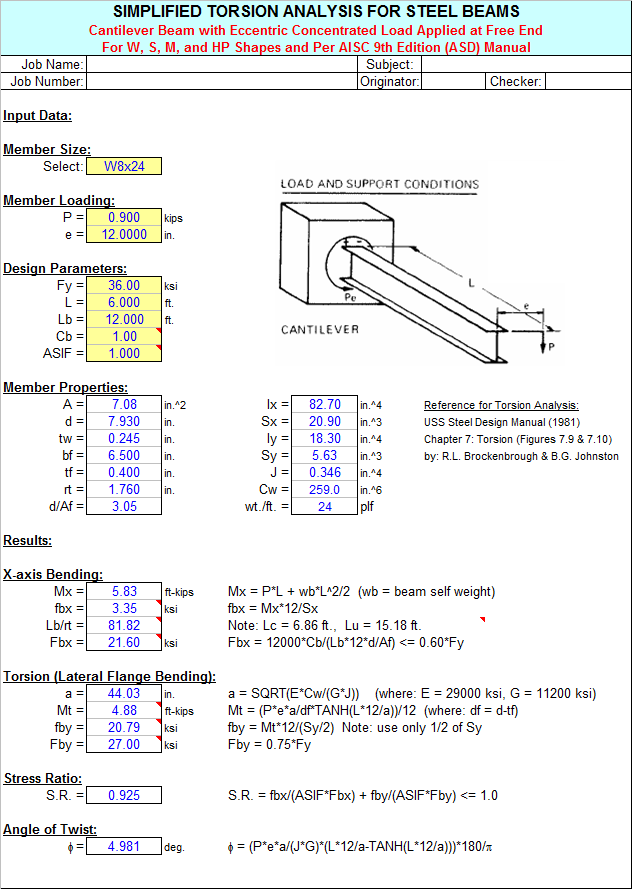

Cantilever - Ecc. Conc. Load = Cantilever Beam with Eccentric Concentrated Load at Free End

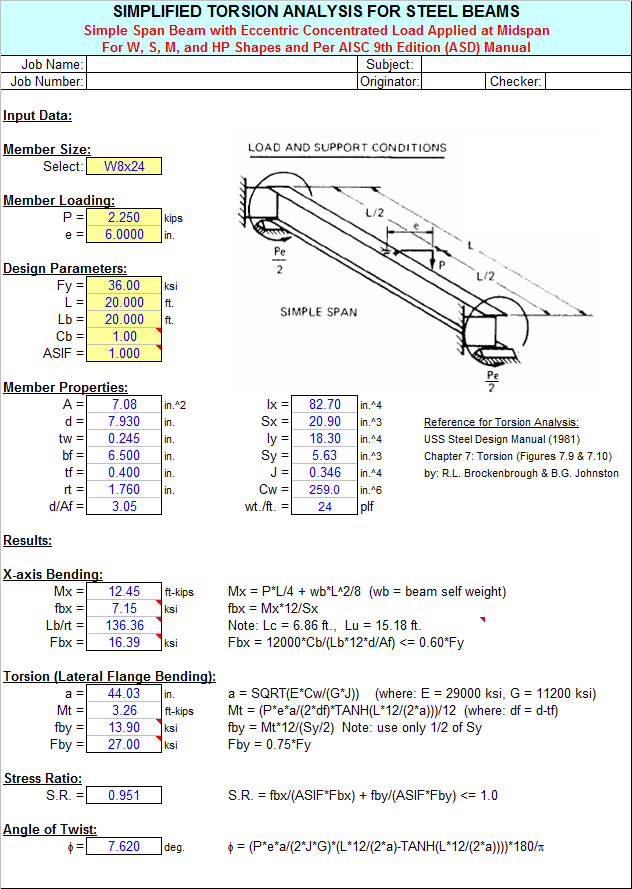

Simple Span - Ecc. Conc. Load = Simple Span Beam with Eccentric Concentrated Load Applied at Midspan

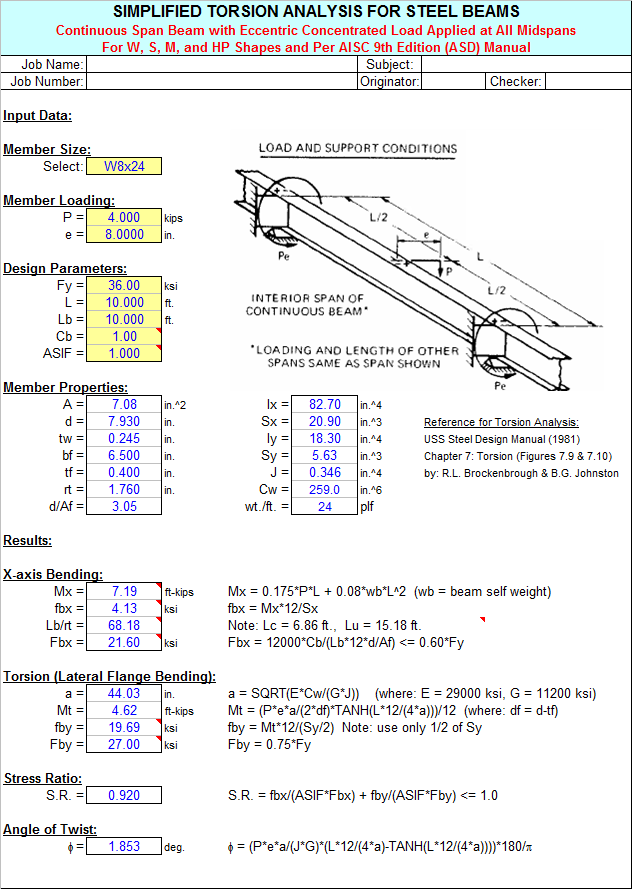

Cont. Span - Ecc. Conc. Load = Continuous Beam with Eccentric Concentrated Load Applied at All Midspans
Cantilever - Ecc. Unif. Load = Cantilever Beam with Eccentric Uniformly Distributed Load
Simple Span - Ecc. Unif. Load = Simple Span Beam with Eccentric Uniformly Distributed Load
Cont. Span - Ecc. Unif. Load = Continuous Beam with Eccentric Uniformly Distributed Load on All Spans
Program Assumptions and Limitations:
1.   The simplified torsion analysis used is this program is based on the following reference: USS Steel Design Manual (1981),  Chapter 7: Torsion (Figures 7.9 & 7.10, pages 157-169), by: R.L. Brockenbrough & B.G. Johnston
2.   This program is valid for AISC W, S, M, and HP shapes.
3.   This program uses the database of member dimensions and section properties from the "AISC Shapes Database", Version 3.0 (2001) as well as the AISC 9th Edition (ASD) Manual (1989).
4.   This program follows the procedures and guidelines of the AISC 9th Edition Allowable Stress (ASD) Manual (1989).
5.   When the value of 'Lb' is input = 0 (or actually <= 1.0 ft.), this program will use a value = 1.0 ft.
6.  This program utilizes an "Allowable Stress Increase Factor" (ASIF) which is a multiplier of any of the calculated allowable stresses Fa, Fbx, and Fby and also the Euler column buckling stresses F'ex and F'ey. It is used and appears ONLY in the stress ratio calculation.  Typically a value of 1.0 may be used.  However, a value of 1.333 may be used for load combinations which include wind or seismic loads.
7.  This program does not calculate or check shear or deflection in member
8.  This program does not consider deduction for holes in members subjected to tension.
9.  This program contains numerous “comment boxes” which contain a wide variety of information including explanations of input or output items, equations used, data tables, etc.  (Note:  presence of a “comment box” is denoted by a “red triangle” in the upper right-hand corner of a cell.  Merely move the mouse pointer to the desired cell to view the contents of that particular "comment box".)

Calculation Reference
AISC 9th Edition Allowable Stress (ASD) Manual
USS Steel Design Manual

Calculation Preview

29 May 2009
Last Modified
29 May 2009
File Size:
801.00 Kb
File Version:
File Author:
Alex Tomanovich
