Angle type tension fitting.xls

Rating:
5

Description


Purpose of calculation: Calculate stress in a 'angle' tension fitting.
Calculation Reference: UK railway industry method (the British Rail "Brown Book" method).
Note: requires XlXtrFun addin (interp function).
Calculation Validation: Independent verification is required.

Calculation Reference
Peterson's Stress Concentration
Juvinal Design

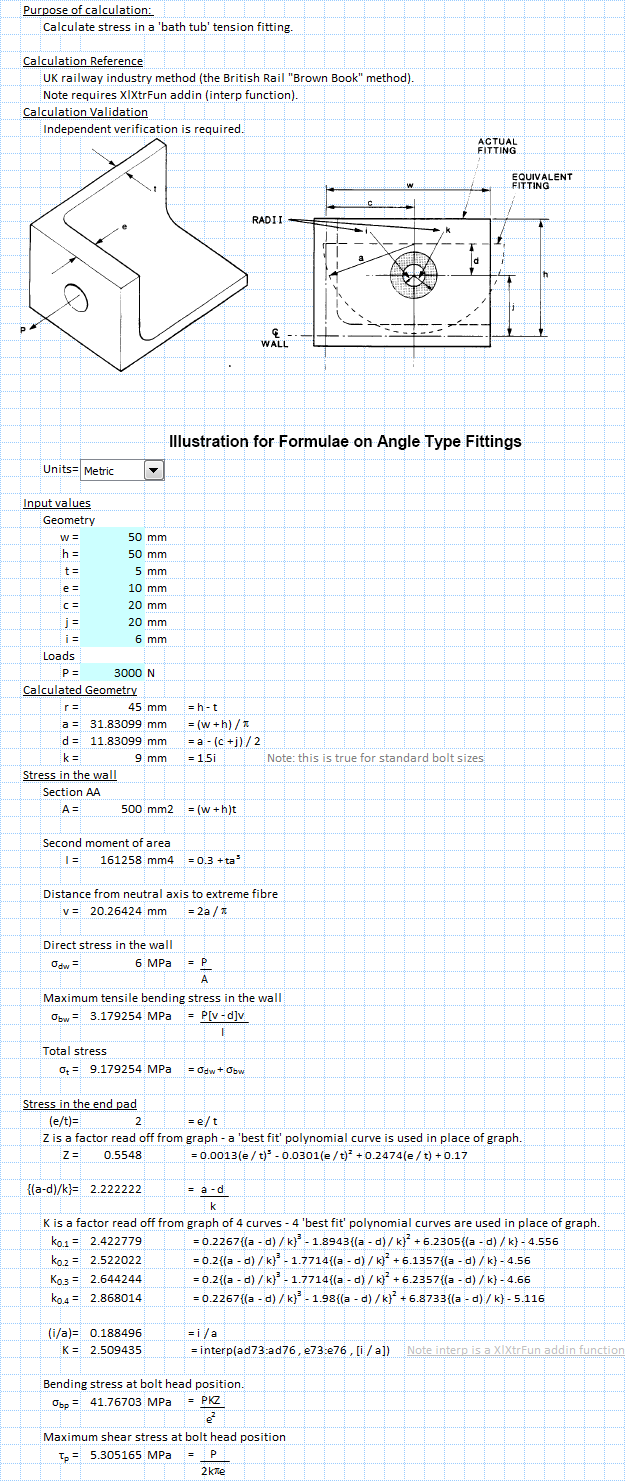

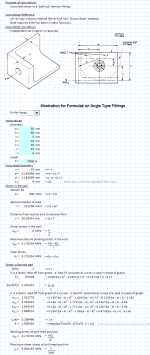

Calculation Preview

Uploaded
28 Apr 2009
Last Modified
28 Apr 2009
File Size:
106.50 Kb
Downloads:
127
File Version:
1.0
File Author:
John Doyle
Rating:
5


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Be the first to comment! Please sign in or register.
