BRGPLT9.xls

Rating:
7

Description


"BRGPLT9" is a spreadsheet program written in MS-Excel for the purpose of the analysis and design of beam bearing plates.  This program is applicable to beams supported on concrete walls, pilasters, and piers in an attempt to distribute the beam reaction over an area sufficient to keep the average bearing pressure within acceptable limits.  Specifically the program will check both the beam web shear and beam end bearing capacity, determine the required bearing plate thickness, and determine the minimum beam flange thickness required without a bearing plate.
This program is a workbook consisting of two (2) worksheets, described as follows:
  • Doc - Documentation sheet
  • Beam Bearing Plate - Beam bearing plate design
All the worksheets are independent and self contained, so that you can move them from one workbook to another. All the worksheets are protected, but not with a password.
Program Assumptions and Limitations:
1.   This program uses the database of member dimensions and section properties from the "AISC Shapes Database", Version 3.0 (2001) as well as the AISC 9th Edition (ASD) Manual (1989).
2.   The user may select from W, S, and M shapes.
3.   This program utilizes the procedure for the design of beam bearing plates from the AISC 9th Edition (ASD) Manual (1989), pages 2-141 through 2-144.
4.  This program will determine the required beam bearing plate thickness based upon the given input, and will also determine the minimum beam flange thickness to sustain the reaction without using a bearing plate.
5.  This program contains “comment boxes” which contain a wide variety of information including explanations of input or output items, equations used, data tables, etc.  (Note:  presence of a “comment box” is denoted by a “red triangle” in the upper right-hand corner of a cell.  Merely move the mouse pointer to the desired cell to view the contents of that particular "comment box".)

Calculation Reference
AISC Steel Construction Manual

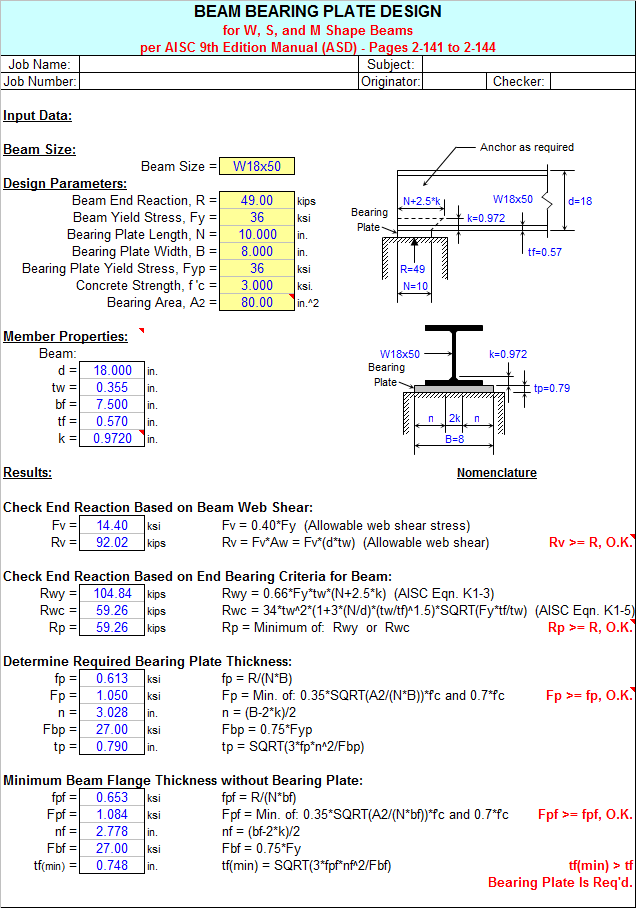

Calculation Preview

Uploaded
08 May 2012
Last Modified
08 May 2012
File Size:
133.50 Kb
Downloads:
789
File Version:
1.1
File Author:
Alex Tomanovich
Rating:
7


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
ATomanovich 12 years ago
In the "BRGPLT9.xls" spreadsheet workbook, it was requested as an alternate check that I add the calculation for the allowable end bearing reaction determined from the AISC 9th Edition "Allowable Loads on Beams" Tables, pages 2-36 to 2-79 and 2-89 to 2-130. This involves the use of the factors R1 through R4. I have added this alternate calculation to the right, off of the actual calculation page.
This workbook is now version 1.1.
FONSECA 12 years ago
Mr. A. Tomanovich,
Their spreadsheets are very good, but adopt the MSI units, so that everyone can use it.
Thanks.
jjmanoj007 16 years ago
good one
