DECKSLAB.xls

Rating:
37

Description

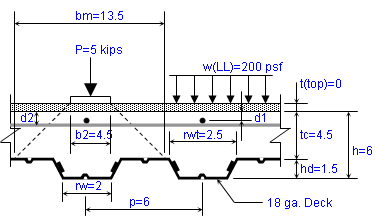

"DECKSLAB" is a spreadsheet program written in MS-Excel for the purpose of analysis and design of slabs on metal deck. Both composite deck slabs and form deck slabs can be analyzed and designed for 3 different loading conditions. Specifically, the flexural moment capacity for both positive and negative strong axis moments, one-way beam shear, punching shear, and deflection are all evaluated and checked. Also, for concentrated loads, the effective slab strip widths for both moment and beam shear are determined. There is information on the metal deck properties, as well as reinforcing bar and welded wire fabric data tables.

Calculation Reference
Composite Deck Design Handbook

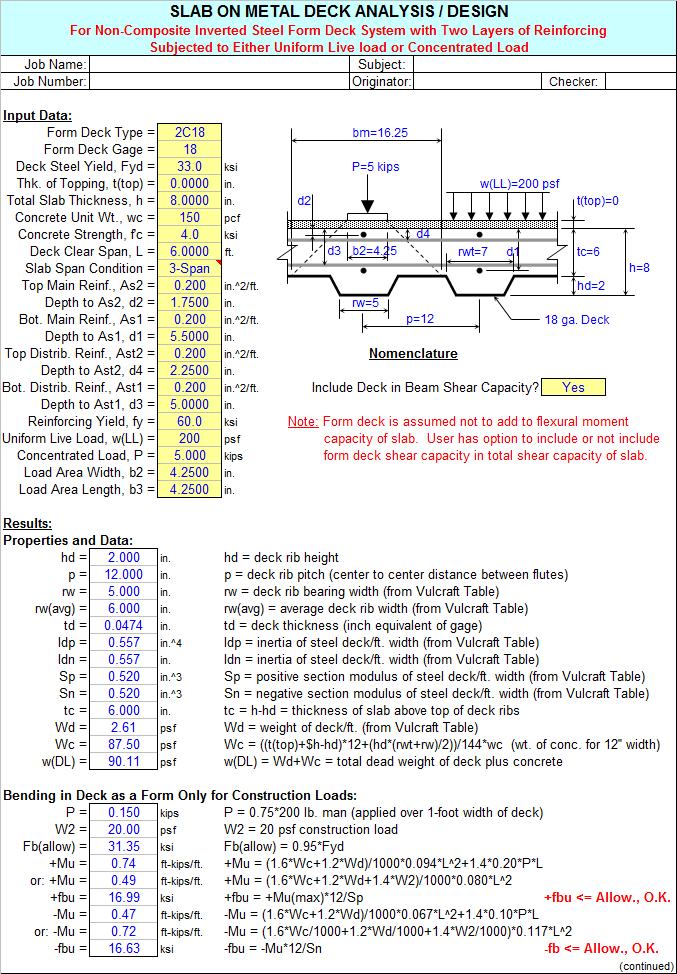

Calculation Preview

Uploaded
11 Oct 2016
Last Modified
11 Oct 2016
File Size:
377.50 Kb
Downloads:
1363
File Version:
1.5
File Author:
Alex Tomanovich
Rating:
37


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 9
navillus22 5 years ago
Good stuff.
ATomanovich 7 years ago
The original workbook had been using the concrete design load factors and the phi factor for shear which were applicable to the ACI 318-99 Code. I have now updated the concrete design load factors and the shear phi factor for the ACI 318-14 Code......took me long enough. (lol)
hades3 10 years ago
Thanks
timmo 15 years ago
excellent presentation and documentation
ATomanovich 16 years ago
Hi Alex I'll update your submission with the pictures and links when I find my feet again. I have just returned from Venice to find my main pc is down. I am working from a laptop at the moment. Bear with me for a couple of days.
ATomanovich 16 years ago
Andy:
You're absolutely right! I found the typo error right away in cell O51, and it was as you said, that I had 12,000 in the live load portion of the 2-span formula instead of 1,000, converting lbs./ft. to k/ft. Shoot, I only missed it bay a factor of 12!!!!!
Seriously, dang it, I try my hardness to be error free and strive for perfection, but that quest, as you know, can just about drive one crazy. Thanks for bringing the typo error to my attention. I suppose any astute, experienced engineer, like yourself, would/should have caught that extreme inconsistency between the calculated values for a 2-span and 3-span condition. Just goes to show you that there is no substitute for taking a minute to review the results of any software that you use to see it the results make sense.
I've corrected the typo error and updated the workbook version to v1.3. I'll try to figure out how to upload spreadsheets to this website, as John Doyle has been kind enough to spoil me by doing it for me in the past. In the event that I'm unsuccessful tonight, I'll ask John to do it for me tomorrow.
Thanks,
Alex
ATomanovich 16 years ago
Actually, by unprotecting the sheet, i've found that in the second term of the equation (the Live Load portion) you have the load magnitude divided by 12,000 instead of 1,000.
That should fix it!
ATomanovich 16 years ago
I think i have found an error in your spreadsheet DECKSLAB.xls...
For a two span condition, the negative moment (Cell B79) that it calculates is incorrect. The equation written directly beside the cell is correct as shown, but it's like you have the wrong amplification factor in the actual calculation cell B79.
It is significantly lower than what it should be. If you compare a two span case to a 3 span, the two span should be much higher, but it is significantly lower.
Can you investigate this for me and possibly revise and repost the spreadsheet for downloading?
Thanks!
Great spreadsheet by the way!
Andy Heigley, PE
ATomanovich 16 years ago
A minor input data validation "glitch" was brought to my attention yesterday in the "DECKSLAB.xls" workbook. In the "Composite Deck"
worksheet in input cell C20, there was an incorrect cell reference in the input data validation. The spreadsheet was referencing what was an empty cell, B29, where it should have been referencing cell B30, for the deck rib height.
I have made the correction and reissued the calculation.
Alex Tomanovich, P.E.
