DESIGN OF PLATE ELEMENTS_v1.7.xls

Rating:
3

Description


A concrete slab is a common structural element of modern buildings. Horizontal slabs of steel reinforced concrete, typically between 10 and 50 centimetres thick, are most often used to construct floors and ceilings, while thinner slabs are also used for exterior paving.
In many domestic and industrial buildings a thick concrete slab, supported on foundations or directly on the subsoil, is used to construct the ground floor of a building. In high rise buildings and skyscrapers, thinner, pre-cast concrete slabs are slung between the steel frames to form the floors and ceilings on each level.

Calculation Reference
Reinforced Concrete Design
Finite Element Method
Structural Design of Concrete

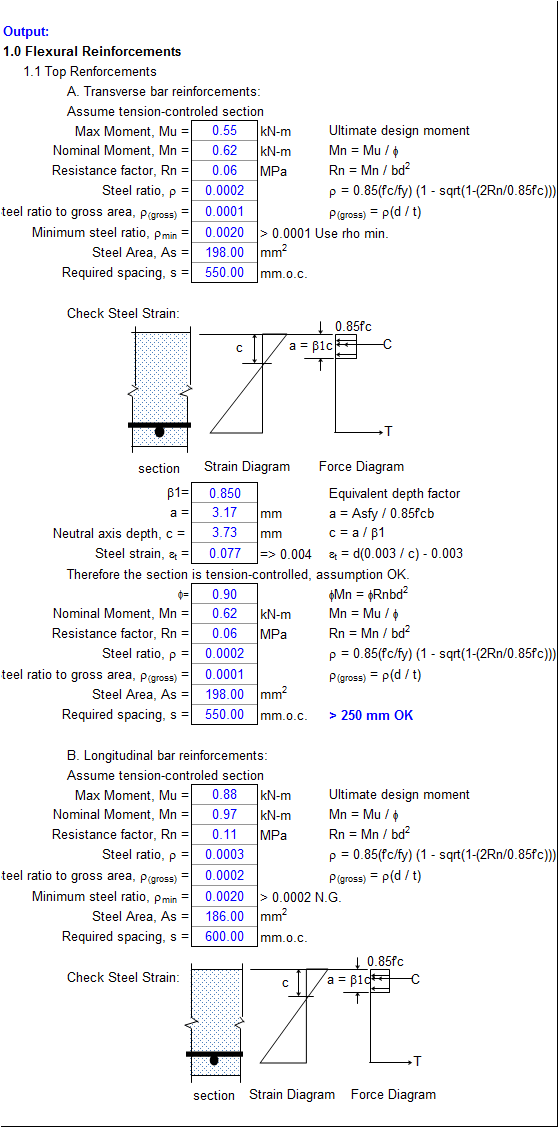

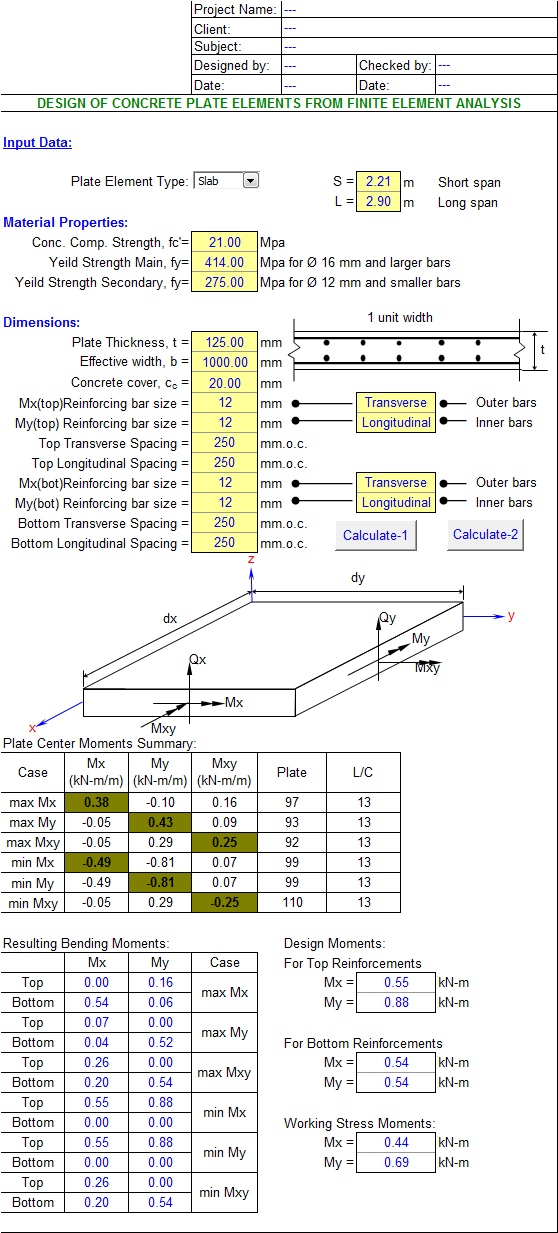

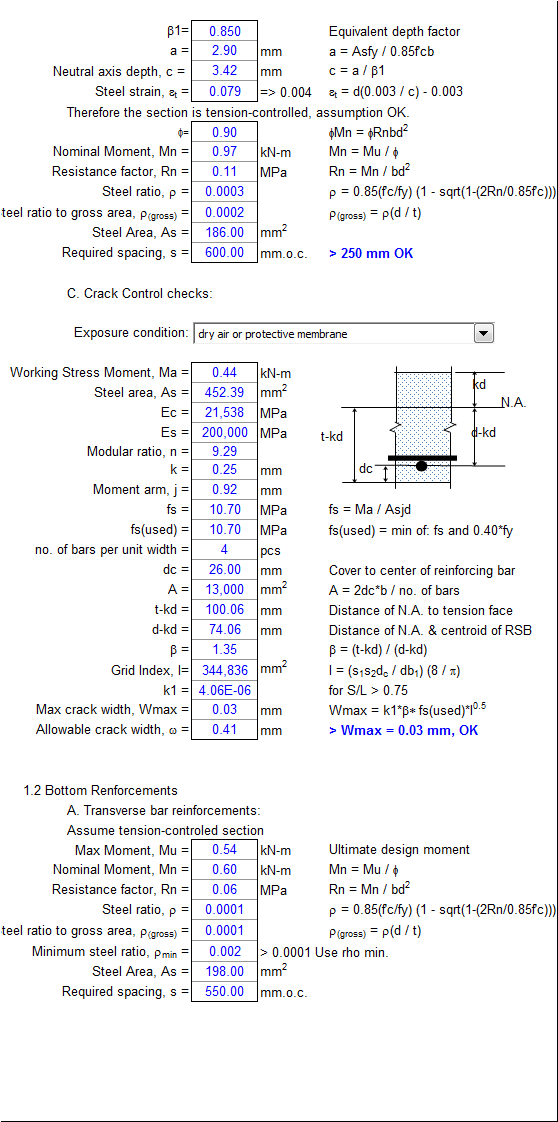

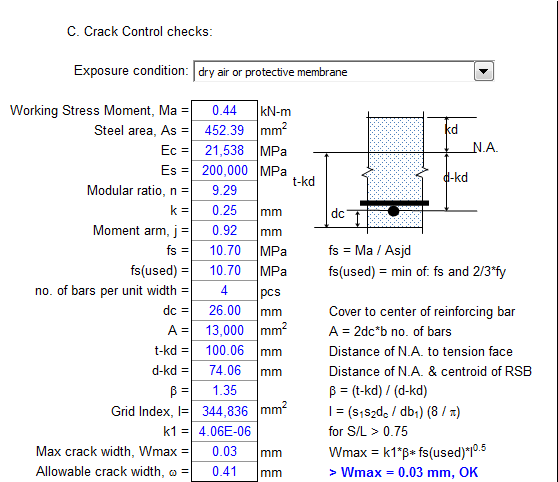

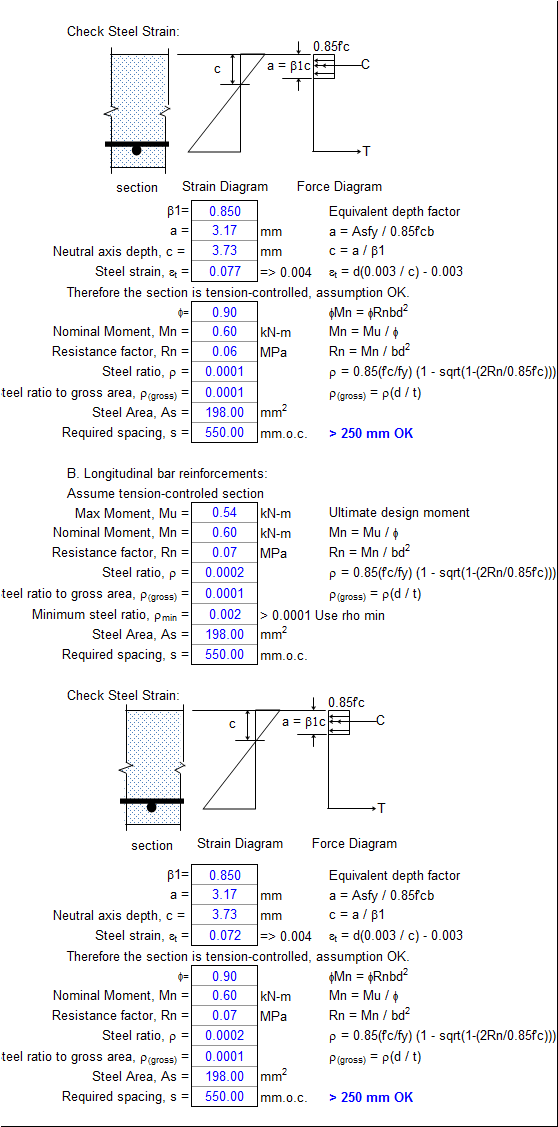

Calculation Preview

Uploaded
25 Sep 2011
Last Modified
26 Sep 2011
File Size:
933.50 Kb
Downloads:
251
File Version:
1.7
File Author:
Richard
Rating:
3


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
