Spread Footing_v1.04.xls
Description
The footings were proportioned so that the bearing pressure does not exceed the safe bearing capacity of the soil. The bending moments and shears are determined at critical sections. The calculation follows methods set out in ACI 318-08.
Calculation Reference
Reinforced Concrete Design
Design of Footings
ACI 318-08

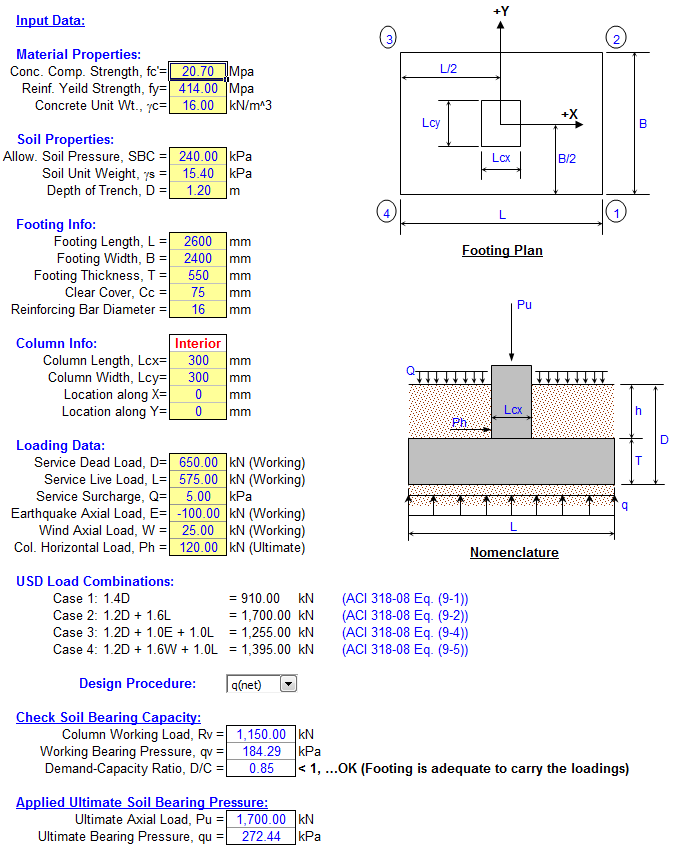

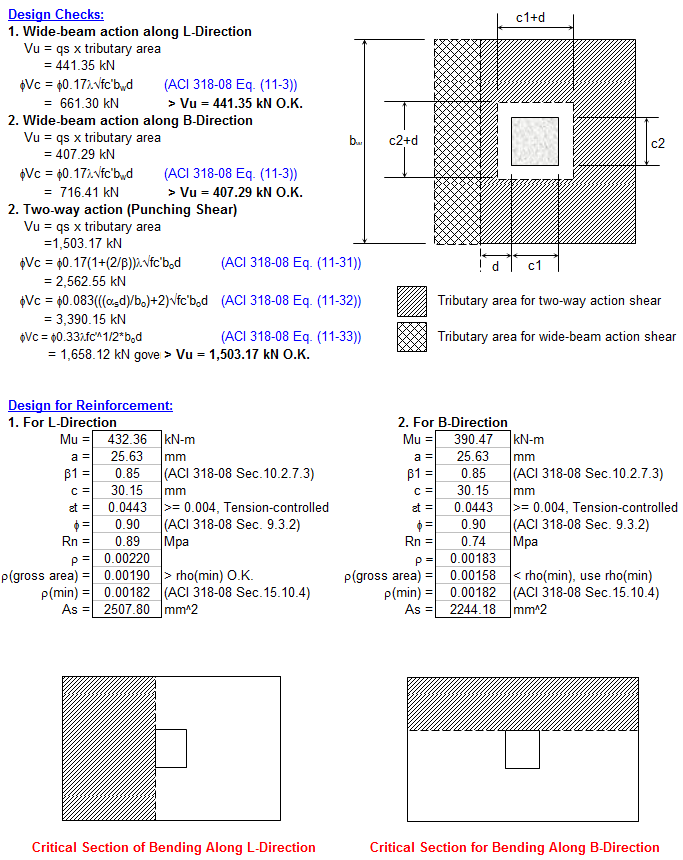

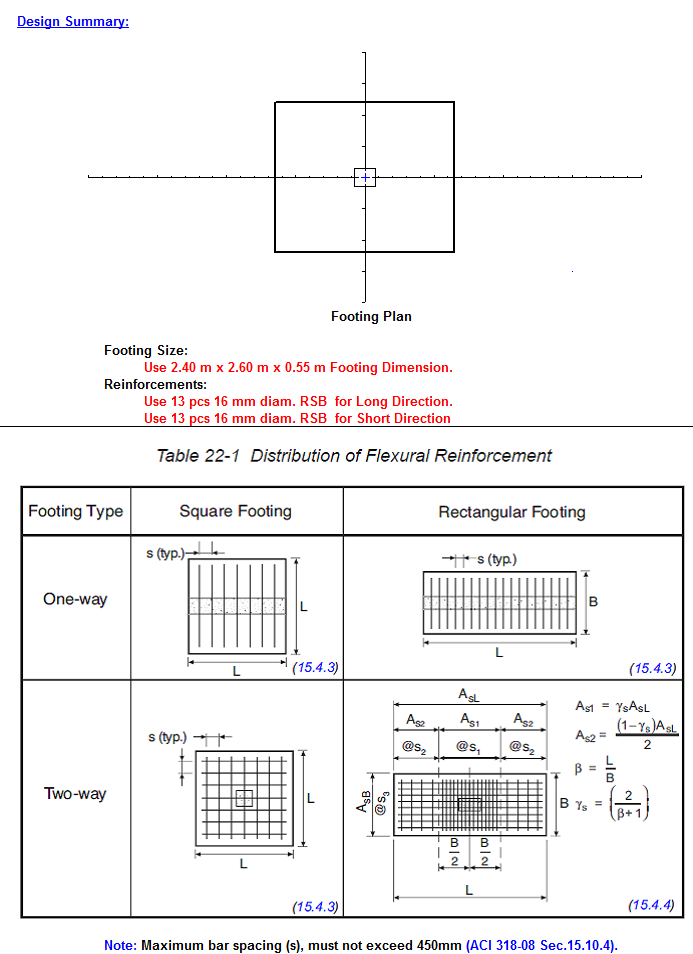

Calculation Preview
Submitted By:
Submitted On:
26 Sep 2011
File Size:
299.00 Kb
Downloads:
309
File Version:
1.04
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
