Stress in a plate due to a point load.xls

Rating:
3

Description

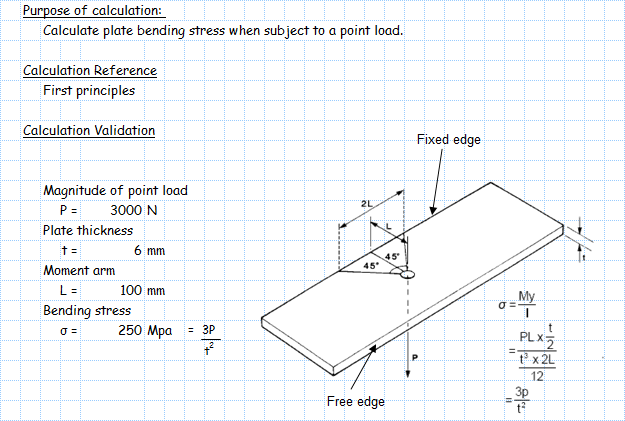

Purpose of calculation: Calculate plate bending stress when subject to a point load.
Calculation Reference: First principles

Calculation Reference
Peterson's Stress Concentration
Juvinal Design

Calculation Preview

Uploaded
28 Apr 2009
Last Modified
28 Apr 2009
File Size:
44.00 Kb
Downloads:
291
File Version:
1.0
File Author:
John Doyle
Rating:
3


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
JohnDoyle[Admin] 15 years ago
This is just a simple calculation taken from a old British Rail Design Manual. I encoded in to Excel just to show it just to show Bombardier what can be done with XLC (Bombardier are the inheritors of the old British Rail Works). I am afraid I did not think much about the content. Its a pretty basic calculation. Here are some more interesting calculations taken from the British Rail Design Manual:
semicircular-tension-fitting.xls
angle-type-tension-fitting.xls
channel-type-tension-fitting.xls
pin-and-lug-%11-static-and-fatigue.xls
I am working up an interesting fatigue calculation from the manual too (watch this space). I hope they help to persuade rolling stock companies take out corporate subscriptions.
abbottaerospace 15 years ago
Thanks.
JohnDoyle[Admin] 15 years ago
I would suggest that the yield line would be different and not located at the support. I would suggest the yield line would wrap around the point load hence you would need to define this length. I would suggest a length of something more like total plate width*2, limited to pie*L. I referance you to yield line behavior for base plates of steel columns. Can send you more info if you please.
