BEAMTAB.xls


This Excel calculation can be downloaded by ExcelCalcs subscribers.Please login or Subscribe.

Description:

"BEAMTAB" is a spreadsheet program written in MS-Excel for the purpose of analysis of steel beam end connections using a beam tab (single plate) field bolted to the beam web and shop welded to either the column flange, column web, or girder web.  The connections may be subjected to end shear reaction and/or axial load. Specifically, all applicable "limit states" for the end connection analysis pertaining to the beam tab (single plate),
bolts,  beam web, and either column flange or web, or girder web are checked.

This program is a workbook consisting of four (4) worksheets, described as follows:
Doc - Documentation sheet

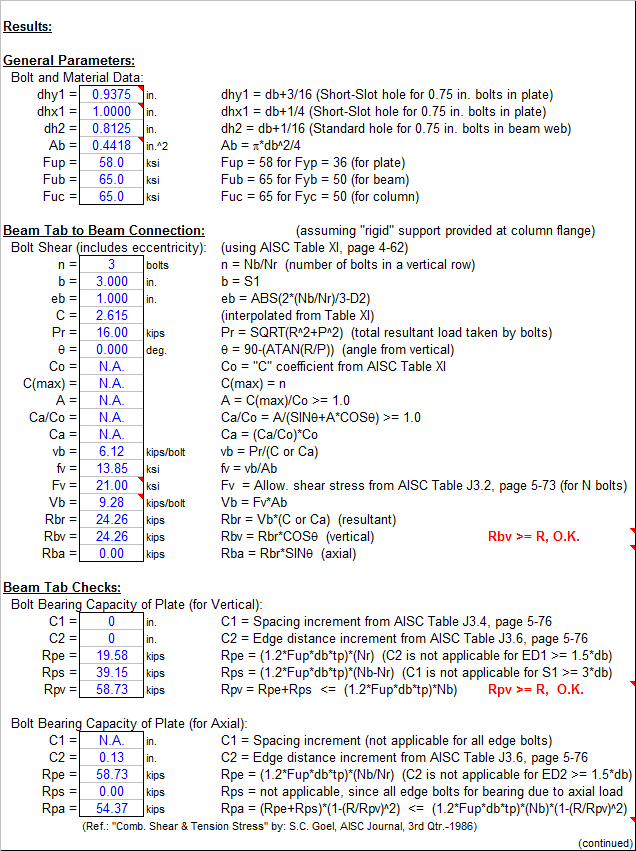

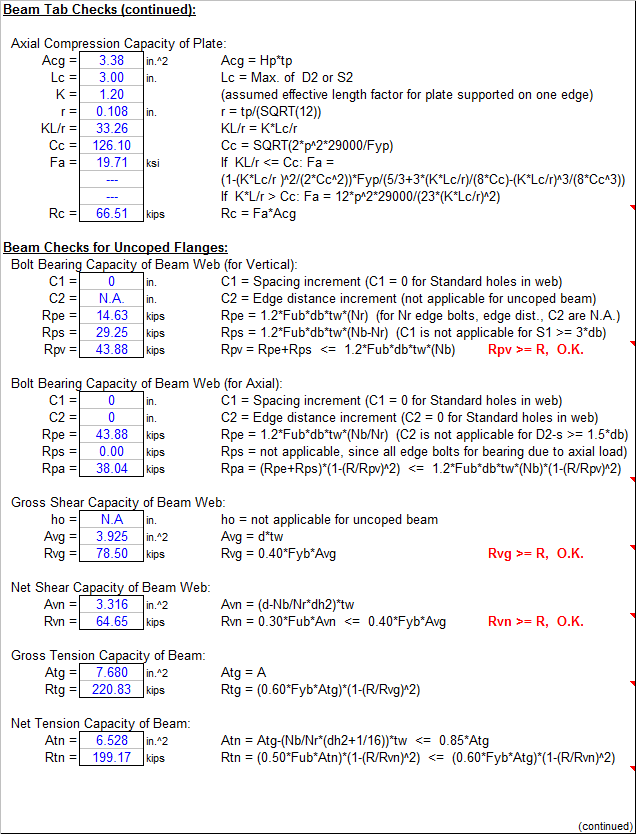

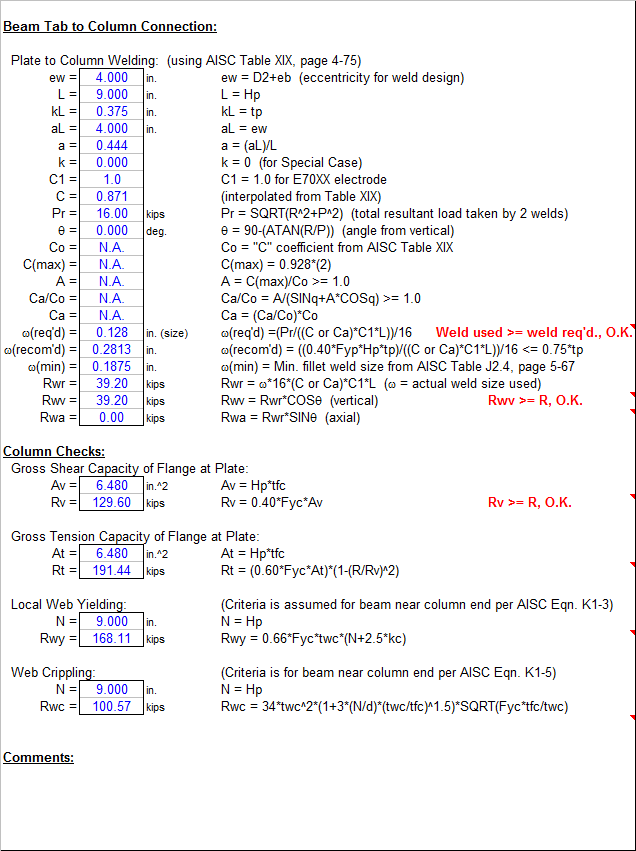

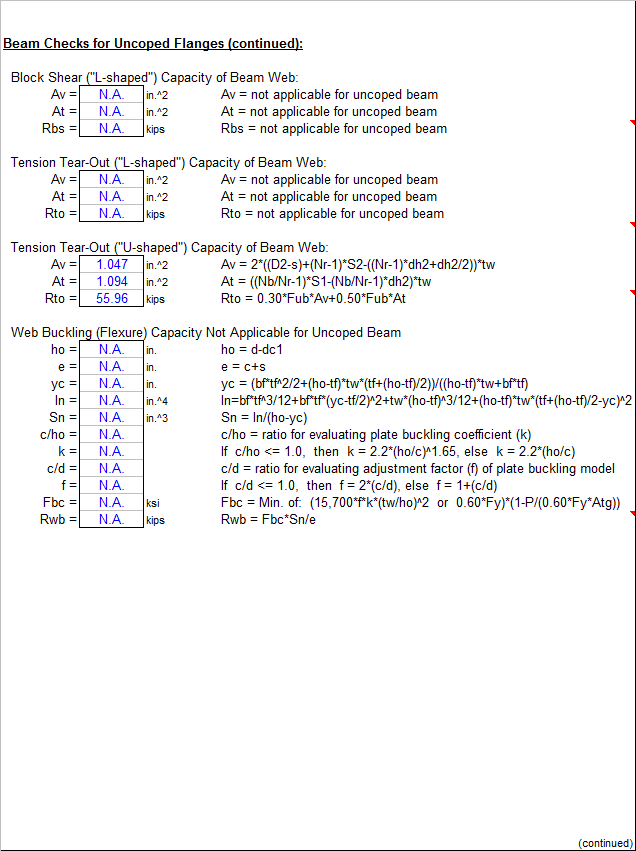

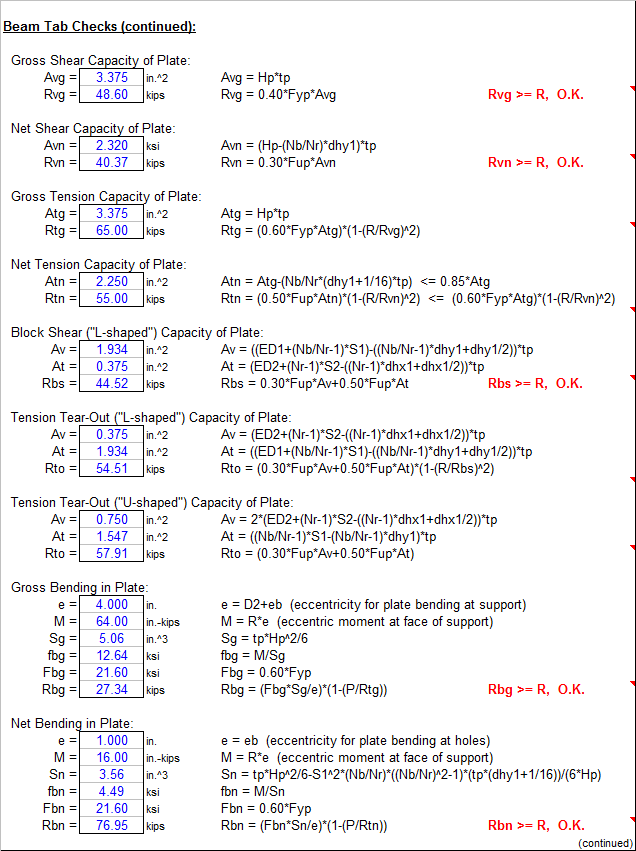

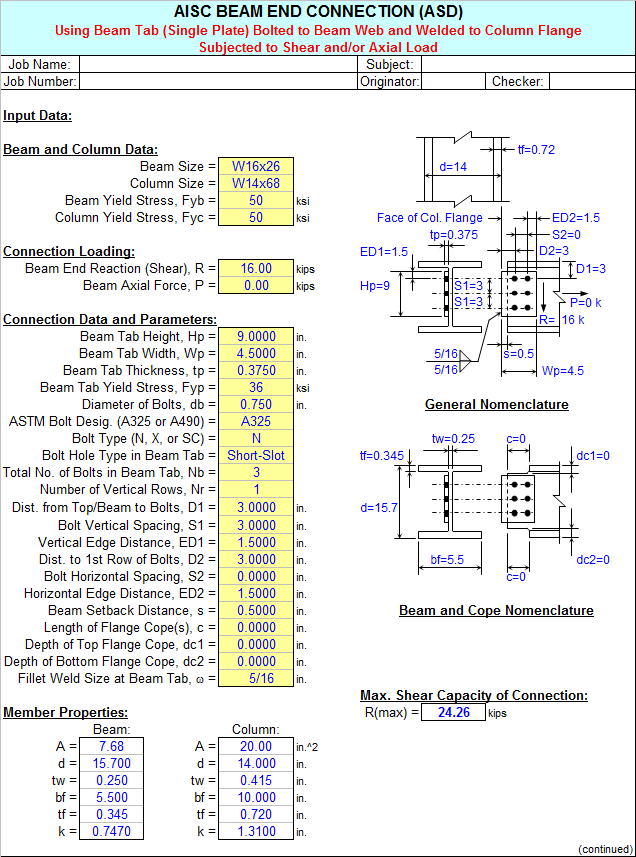

Beam Tab(Col Flg) - Beam tab bolted to beam web and welded to column flange
Beam Tab(Col Web) - Beam tab bolted to beam web and welded to column web
Beam Tab(Girder) - Beam tab bolted to beam web and welded to girder web

Program Assumptions and Limitations:

1.   This program follows the procedures and guidelines of the AISC 9th Edition Allowable Stress (ASD) Manual (1989) and the AISC 9th Edition Manual Vol. II - Connections (1992).

2.   This program uses the database of member dimensions and section properties from the "AISC Shapes Database", Version 3.0 (2001) as well as the AISC 9th Edition (ASD) Manual (1989).

3.   This program automatically calculates the beam tab height, 'Hp', and the beam tab width, 'Wp', based on the applicable input data.

4.   This program assumes that the a beam tab connected (welded) to a column flange is a rigid connection, while a beam tab connected (welded) to a column web or girder web is a flexible connection.  The applicable connection design eccentricity, based on either a rigid or flexible connection, is determined from the criteria in the AISC Connections Manual.

5.   This program assumes that the tension capacity for any "limit state" is reduced by the presence of shear. For allowable bolt tension in the presence of shear, the "interaction" (combined stresses) is handled directly by the AISC Code equations.  For other "limit states" in combined stresses such as bolt bearing, gross and net shear and tension, and block shear and tension tearout, the effect of "interaction" is handled by use of the formula,  P/Ra+(R/Rv)^2=1,  as suggested from the following reference:
"Combined Shear and Tension Stress" - by Subhash C. Goel, AISC Journal, 3rd Qtr.-1986.
Thus, the reduction factor applied to the tension "limit state" capacity is  =  (1-R/Rv)^2. where:R = actual shear end reaction
Rv = allowable shear capacity for the particular "limit state" considered

6.  This program contains numerous “comment boxes” which contain a wide variety of information including explanations of input or output items, equations used, data tables, etc.  (Note:  presence of a “comment box” is denoted by a “red triangle” in the upper right-hand corner of a cell.  Merely move the mouse pointer to the desired cell to view the contents of that particular "comment box".)

Calculation Reference
AISC
| Find on Amazon.com | Find on Amazon.co.uk | Find on Amazon.fr | Find on Amazon.de | Find on Amazon.ca |

Version History

Check the version history to see how this calculation has changed over time.



Submitted On:
10 Jul 2007
Submitted By:
ATomanovich
File Date:
10 Jul 2007
File Author:
Alex Tomanovich
File Version:
1.3
File Size:
758.00Kb
File Type:
xls
Downloads:
831
Rating:
stars/4.gifTotal Votes:8
HTML Link:
Copy code below to your web page to create link to this page:
HTML Window:
Copy code below to your web page to create a dynamic window to this download:
Like This?:
View the profile of the person who submitted this calculation and see all their other calculations hosted at ExcelCalcs.
Need Help?:
Use the comment feature below to raise any questions relating to this download. The question will be automatically emailed the author and all users subscribing to this comment thread.

Comments


#2 papaseis 2018-08-08 13:52
Great spreadsheet. Would love to see this one updated to newest AISC.


#1 MSH 2008-09-09 16:10
After I used, benefited, and enjoyed your spreadsheets, finally I found the time to say, "Thank you".
