"IBC2003E" is a spreadsheet program written in MS-Excel for the purpose of seismic loading analysis for buildings and various nonbuilding structures, as well as architectural, mechanical, and electrical components per the IBC 2003 and ASCE 7-02 Codes.  Specifically, the total base seismic shear for buildings and nonbuilding
structures is calculated.  For Multi-Level Buildings, the vertical distribution of the total seismic shear is also determined, and a drift analysis can also be performed..  The seismic restraint force for various components is also calculated.
This program is a workbook consisting of ten (10) worksheets, described as follows:
Doc - Documentation sheet

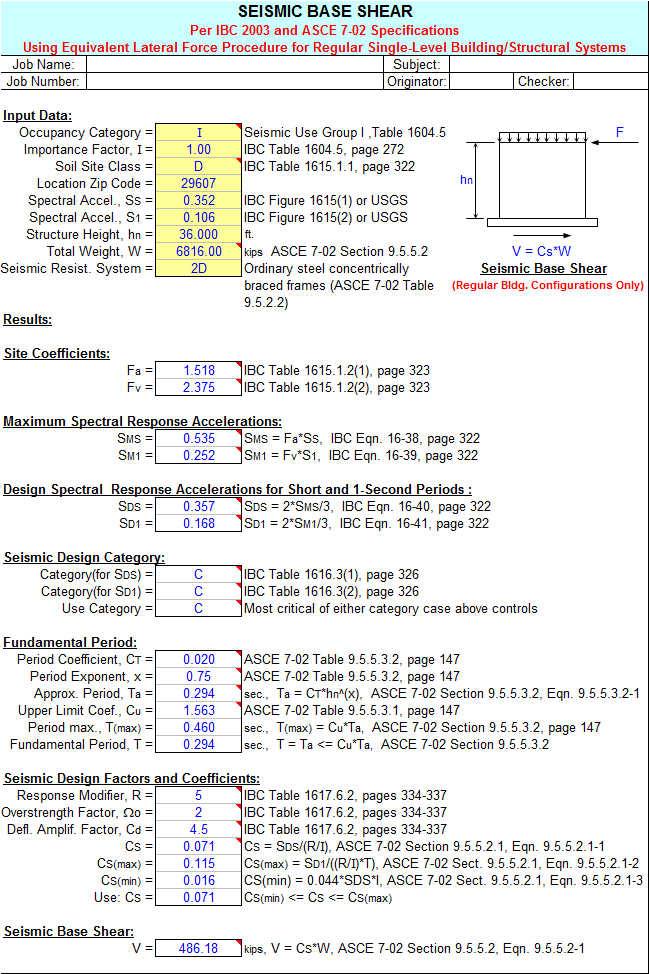

Single-Level Bldg. - Seismic base shear for single-level buildings

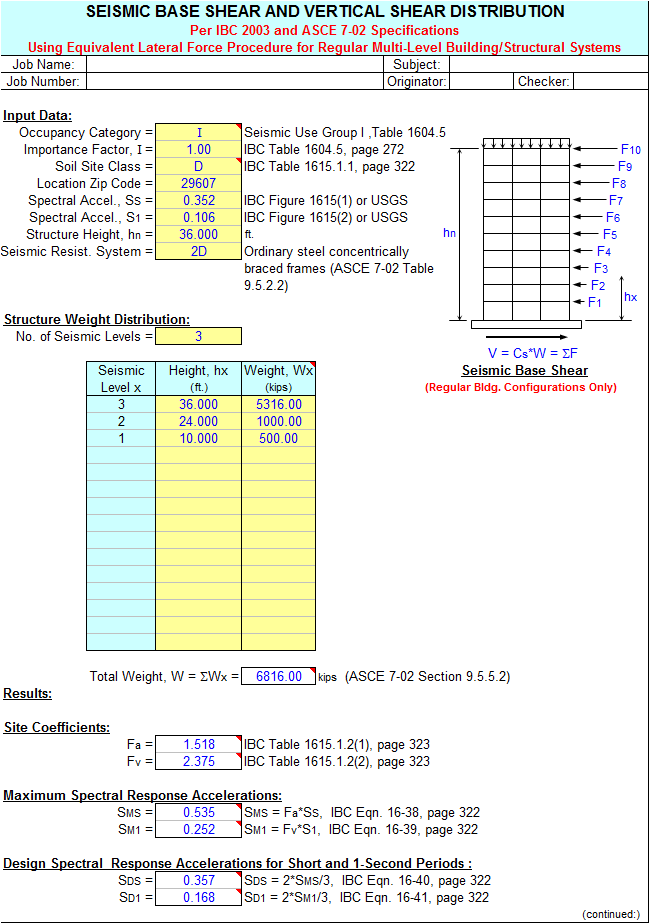

Multi-Level Bldg. - Seismic base shear and vertical shear distribution for multi-level buildings

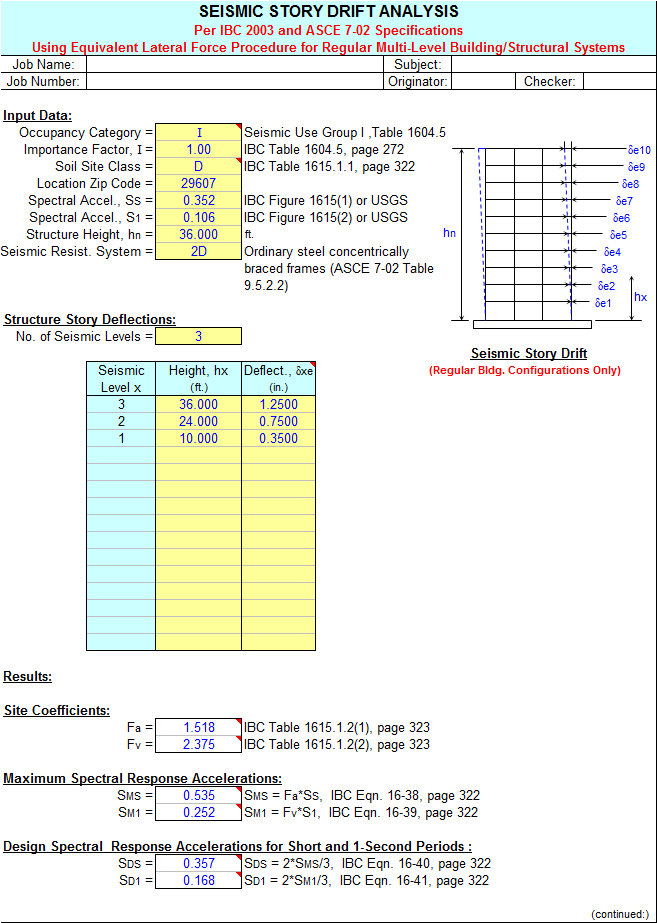

Multi-Level Bldg. (Drift) - Seismic story drift analysis for multi-level buildings
Steel Vert. Tank or Vessel - Seismic base shear and overturning moment for vertical steel tanks/vessels

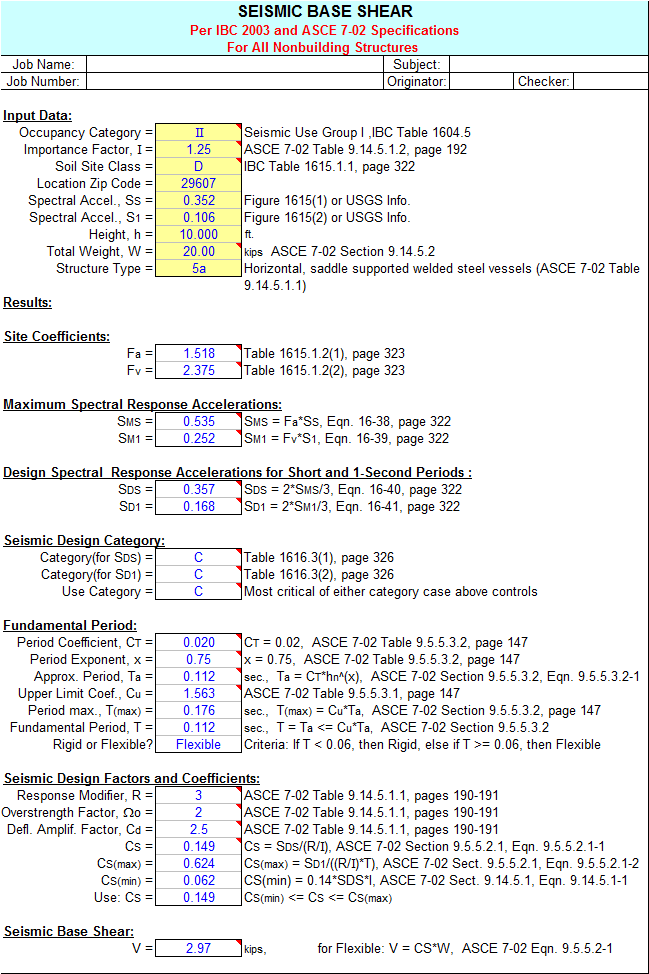

Nonbldg. Struct. - Seismic base shear and overturning moment for nonbuilding structures

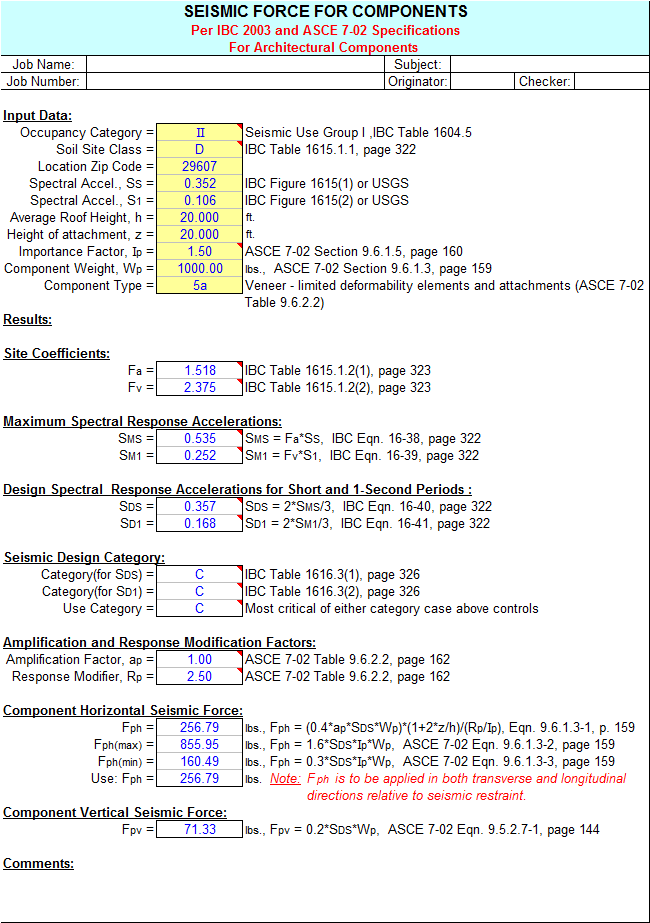

Arch. Components - Seismic force for architectural components

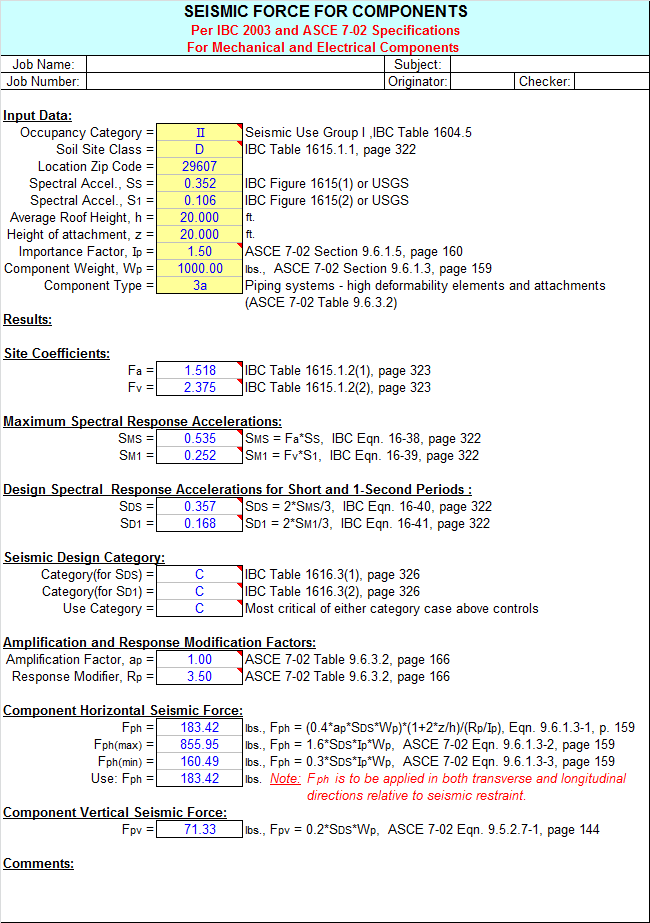

M & E Components - Seismic force for mechanical and electrical components
Maps for Ss - 1996 NEHRP (USGS) maps for 0.2 sec. spectral acceleration with 2% P.E.
Maps for S11 - 996 NEHRP (USGS) maps for 1.0 sec. spectral acceleration with 2% P.E.
Program Assumptions and Limitations:
1.  For buildings, the program assumes the use of the equivalent lateral-force method for analysis, per IBC Section 1617.4, which defers to ASCE 7-02 Section 9.5.5.   For nonbuilding structures, IBC Section 1622 defers to ASCE 7-02 Section 9.14 which is followed.  For architectural, mechanical, and electrical components, IBC Section 1621 defers to ASCE 7-02 Section 9.6 which is followed.  The "simplified" method, per IBC Section 1617.5, is not used in any of the calculation worksheets.
2.  The program assumes "regular" buildings and structures, with plan and vertical irregularities not being considered.  Refer to Section 1616.5 for building configuration, and plan and vertical irregularity criteria.
3.  Worksheets for Multi-Level Buildings are applicable for buildings and structures up to 240 feet in height, with up to 15 levels.  (Story deflections are to be determined from separate elastic 2D or 3D frame analysis.)
4.  This program does not include the provisions for nonbuilding structures that are supported by other structures as per Section 1622.1.1.
5.  Worksheets calculate for "gross" seismic shear force, and do not reflect the use of any load factors.  Refer to Section 1605.2 and 1605.3 for applicable loads factors for LRFD or strength design as well as ASD analysis.
6.  The NEHRP (USGS) Maps for the short term 0.2 sec. spectral acceleration (SA) with 2% Probability of Exceedance in 50 years, Ss, as well as the 1.0 sec. spectral acceleration (SA) with 2% Probability of Exceedance in 50 years, S1, are included.  These maps are the 1996 "color versions" of  Figures 1615(1) and 1615(2) from the IBC 2003.  Peak gravitational acceleration, PGA, is what is experienced by a particle on the ground.  Response spectral acceleration, SA, is what is approximately experienced by a building, as modeled by a particle on a massless vertical rod having the same natural period of vibration as the building. The SA values shown in the USGS maps as well as the IBC Figures 1615(1) through 1615(10) are expressed as a percentage of "g", the acceleration due to gravity.  Their numerical values should be divided by 100 to convert them into decimal form for use in the Code formulas and calculations.)   Note that there are "exploded" maps of various portions of continental U.S. included as well.  These can be seen by scrolling down screen. (Note: while the USGS does have later, 2002 gridded design values for Ss and S1 available at their web site, the user is cautioned in their use as they are NOT officially adopted for use by IBC 2003 Code.  If their use would result in a lower Seismic Design Category and reduced seismic loads, the user is advised to seek formal approval of their use by the owner and building official if applicable.)
7.  This program allows the user to select only site classes "A" through "E", since site class "F" requires site-specific geotechnical investigation and dynamic site response analyses.  These same requirements also apply for site class "E", but only when Ss >= 1.25*g and S1 >= 0.5*g.
8.  In the calculation worksheets, a "hyperlink" is provided to take the user directly to the USGS website at: http://earthquake.usgs.gov/research/hazmaps/ Once finished at the USGS website, the user should exit the website by pressing the [<-Back]  button in the top toolbar of the web browser to return to the particular program worksheet.
9.  This program automatically selects the appropriate seismic response modifier, "R", once the type of seismic resisting system has been selected/input by the user.
10. This program will automatically alert the user with a "warning message" when any applicable limitations have been exceeded for the particular seismic resisting system selected.
11. For reference, at right side of the display, the calculation worksheets contain some representative 1996 and 2002 gridded USGS spectral acceleration (SA) values for 5 particular zip code locations (and the applicable cities), as well as copies of the tables of seismic coefficients and factors to be used.
12. This program contains numerous “comment boxes” which contain a wide variety of information including explanations of input or output items, equations used, data tables, etc.  (Note:  presence of a “comment box” is denoted by a “red triangle” in the upper right-hand corner of a cell.  Merely move the mouse pointer to the desired cell to view the contents of that particular "comment box".)

Calculation Reference

Calculation Preview

18 Aug 2011
Last Modified
18 Aug 2011
File Size:
1,311.50 Kb
File Version:
File Author:
Alex Tomanovich

Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 4
ATomanovich 13 years ago
It was brought to my attention in the "IBC2006E.xls" workbook in the "Multi-Level Bldg." worksheet that there were two typo errors. First, in the displayed text under the Seismic Shear Vertical Distribution, for the Distribution Exponent, k, the text shown as ".....T>=0.5 sec." should have read as ".....T>=2.5 sec.". Then, in the row directly below, the text shown as ".....0.5 sec. < k < 2.5 sec." should have read as ".....0.5 sec. < T < 2.5 sec.".
The important thing is that the calculation logic for determining 'k' was correct, as the errors were only in the displayed text.
ATomanovich 14 years ago
I'm sending out this update to the "IBC2003E.xls" workbook for seismic analysis per the IBC 2003 / ASCE 7-02 Codes, for any of you who may still be using this code version on some projects.
In the "Arch. Components" and "M & E Components" worksheets I added the calculation of the component vertical seismic force.
dkpf32 15 years ago
Any plans to upgrade to 2006? The other IBC 2006 Seismic has a very awkward format
ATomanovich 16 years ago
Alex's notes regarding update to v1.7:
It was brought to my attention that the original "Vert. Tank &amp; Vessel"
worksheets of both of these workbooks could potentially be misused. In those particular worksheets, the specific formula used for the fundamental period is applicable for thin walled cantilevered (ground supported) cylindrical vessels. Plus, the title indicated steel tanks and vessels, but I had been allowing for choices which included reinforced and prestressed concrete as well. What I chose to do is limit the structural system choices to eliminate any potential misuse. I also revised the title block a bit, and renamed the worksheet tab to include the word "steel".
While I was at it, I also updated the link to the USGS website in all the worksheets.
Alex Tomanovich, P.E.
